STAND

GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

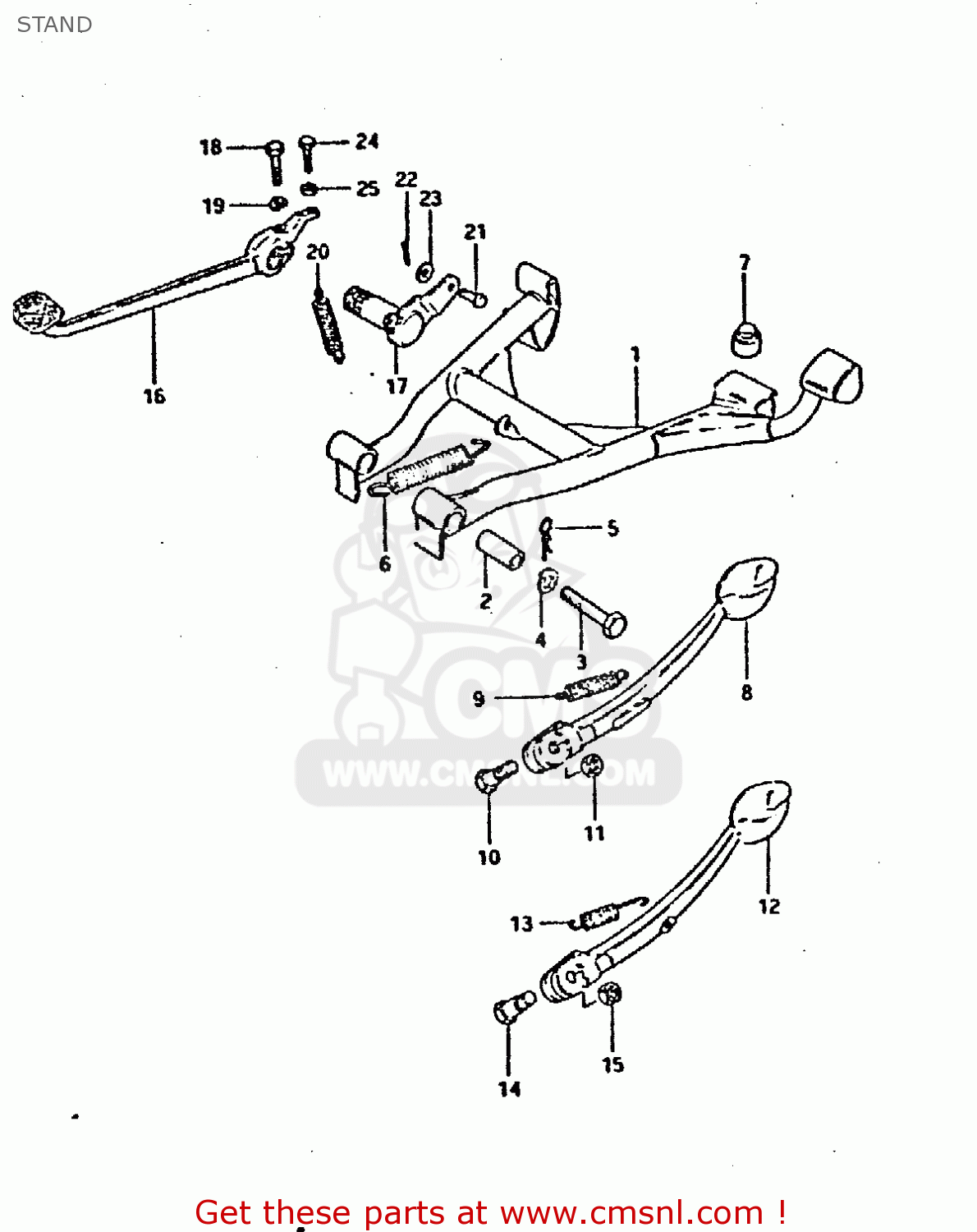

Stand diagram GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

STAND GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
STAND GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
STAND GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
4210049200
ref: 1
STAND,CENTER
4210049200
€ 197.00
2
0918010040
ref: 2
SPACER(10X16X38.8)
0918010040
€ 3.00
3
0910110018
ref: 3
BOLT
0910110018
€ 5.50
4
0832121108
ref: 4
LOCK WASHER
0832121108
€ 2.00
5
0938510001
ref: 5
CLIP
0938510001
€ 1.50
6
0944320001
ref: 6
SPRING
0944320001
€ 11.00
7
0932110001
ref: 7
CUSHION
0932110001
€ 2.50
8
4231149200
ref: 8
STAND,SIDE
4231149200
€ 44.50
9
0944317005
ref: 9
SPRING
0944317005
€ 11.50
10
0910010067
ref: 10
BOLT(10X30)
0910010067
€ 3.50
11
0831022108
ref: 11
NUT
0831022108
€ 2.50
12
NOTUSED
ref: 12
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
13
NOTUSED
ref: 13
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
14
NOTUSED
ref: 14
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
15
NOTUSED
ref: 15
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
16
4311049200
ref: 16
PEDAL,BRAKE
4311049200
€ 66.00
17
4312049210
ref: 17
ARM,BRAKE PEDAL ROD
€ 38.50
18
0110708258
ref: 18
BOLT
0110708258
€ 2.50
19
0832121088
ref: 19
LOCK WASHER
0832121088
€ 2.00
20
0944314013
ref: 20
SPRING
0944314013
€ 21.50
21
0920006029
ref: 21
PIN
0920006029
€ 1.50
22
0411120158
ref: 22
PIN
0411120158
€ 1.50
23
0832221068
ref: 23
WASHER
0832221068
€ 2.00
24
0110706208
ref: 24
BOLT
0110706208
€ 2.00
25
0831011068
ref: 25
NUT
0831011068
€ 2.50
