HEADLAMP (E2)

GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

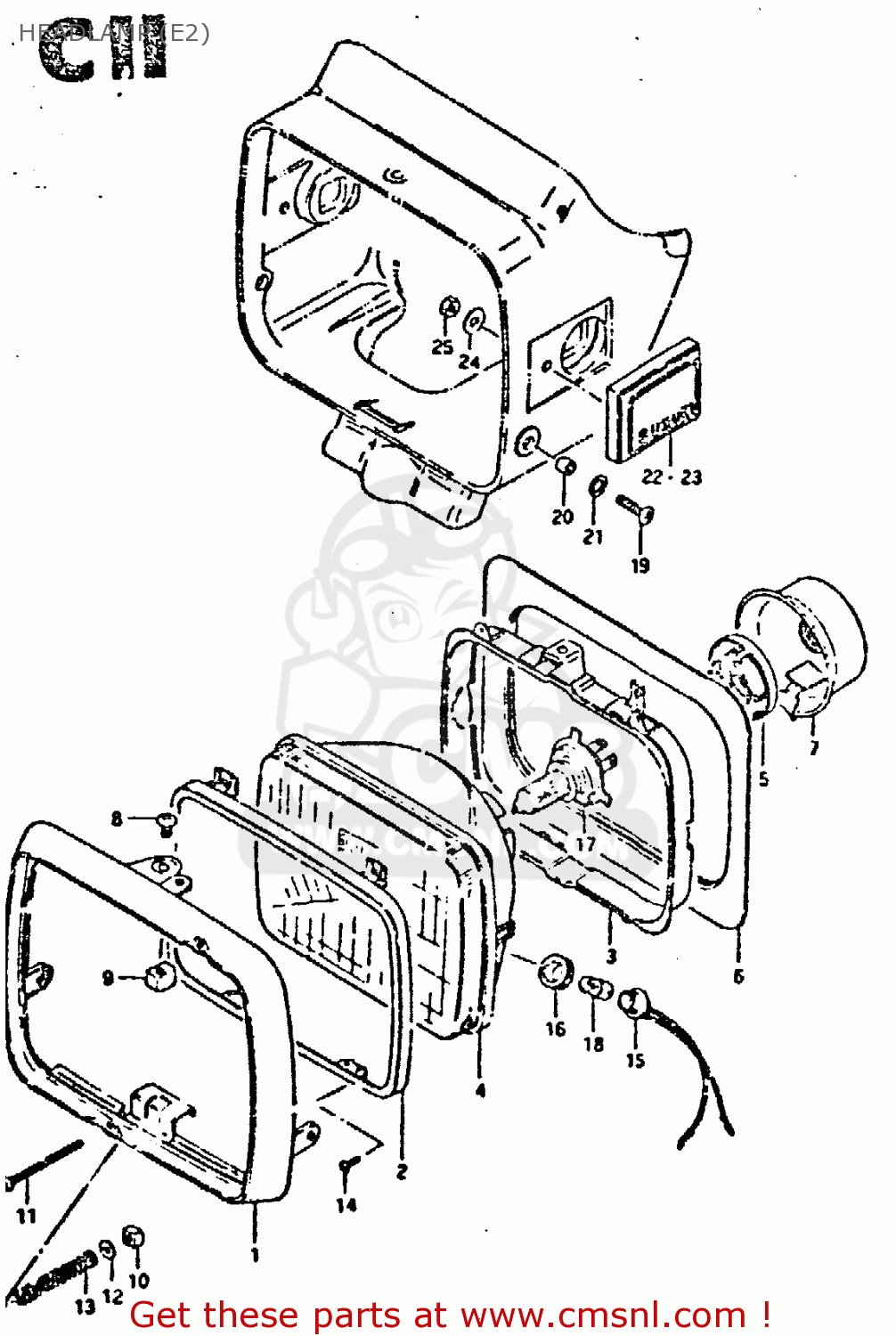

Headlamp (e2) diagram GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

HEADLAMP (E2) GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
HEADLAMP (E2) GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
HEADLAMP (E2) GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
0
3510049220999
ref: 0
HEADLAMP ASSY
€ 0.00
1
3511149200
ref: 1
RIM
3511149200
€ 83.00
2
3512749200
ref: 2
RETAINER,HEADLAMP
3512749200
€ 20.00
3
3513049200
ref: 3
RING,HEADLAMP UNIT
3513049200
€ 31.50
4
3512149220
ref: 4
UNIT
€ 175.00
5
3513649200
ref: 5
HOLDER
3513649200
€ 8.50
6
3512949200
ref: 6
SHADE
3512949200
€ 20.50
7
3517349200
ref: 7
COVER,HEADLAMP SOCKET
3517349200
€ 12.50
8
0211205128
ref: 8
SCREW
€ 2.50
9
3515249200
ref: 9
NUT,HEADLAMP ADJUSTER
3515249200
€ 3.00
10
3513545600
ref: 10
NUT
3513545600
€ 3.00
11
3515149200
ref: 11
SCREW,HEADLAMP ADJUST
3515149200
€ 4.00
12
3515748510
ref: 12
WASHER
€ 2.50
13
3515449200
ref: 13
SPRING
3515449200
€ 3.50
14
0211203088
ref: 14
SCREW
€ 1.50
15
3611830691
ref: 15
SOCKET
3611830691
€ 12.00
16
3611622630
ref: 16
JOINT,RUBBER
3611622630
€ 5.00
17
0947112060
ref: 17
EXECUTED LOCALLY
BULB(12V60/55W,H4)
0947112060
€ 8.00
18
0947112063
ref: 18
EXECUTED LOCALLY
BULB(12V4W)
0947112063
€ 6.00
19
0214205167
ref: 19
SCREW
0214205167
€ 1.50
20
0918005012
ref: 20
SPACER (5.2X8X7.5)
0918005012
€ 2.50
21
0916808011
ref: 21
GASKET(8.2X12X0.8) (NAS)
0916808011
€ 2.00
22
3599349200
ref: 22
EMBLEM, FRONT SIDE RH
3599349200
€ 28.50
23
3599449200
ref: 23
EMBLEM, FRONT SIDE LH
3599449200
€ 22.50
24
0916005013
ref: 24
WASHER(5.2X16X1)
0916005013
€ 1.50
25
0831011058
ref: 25
NUT
0831011058
€ 2.50
