REAR FENDER

GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

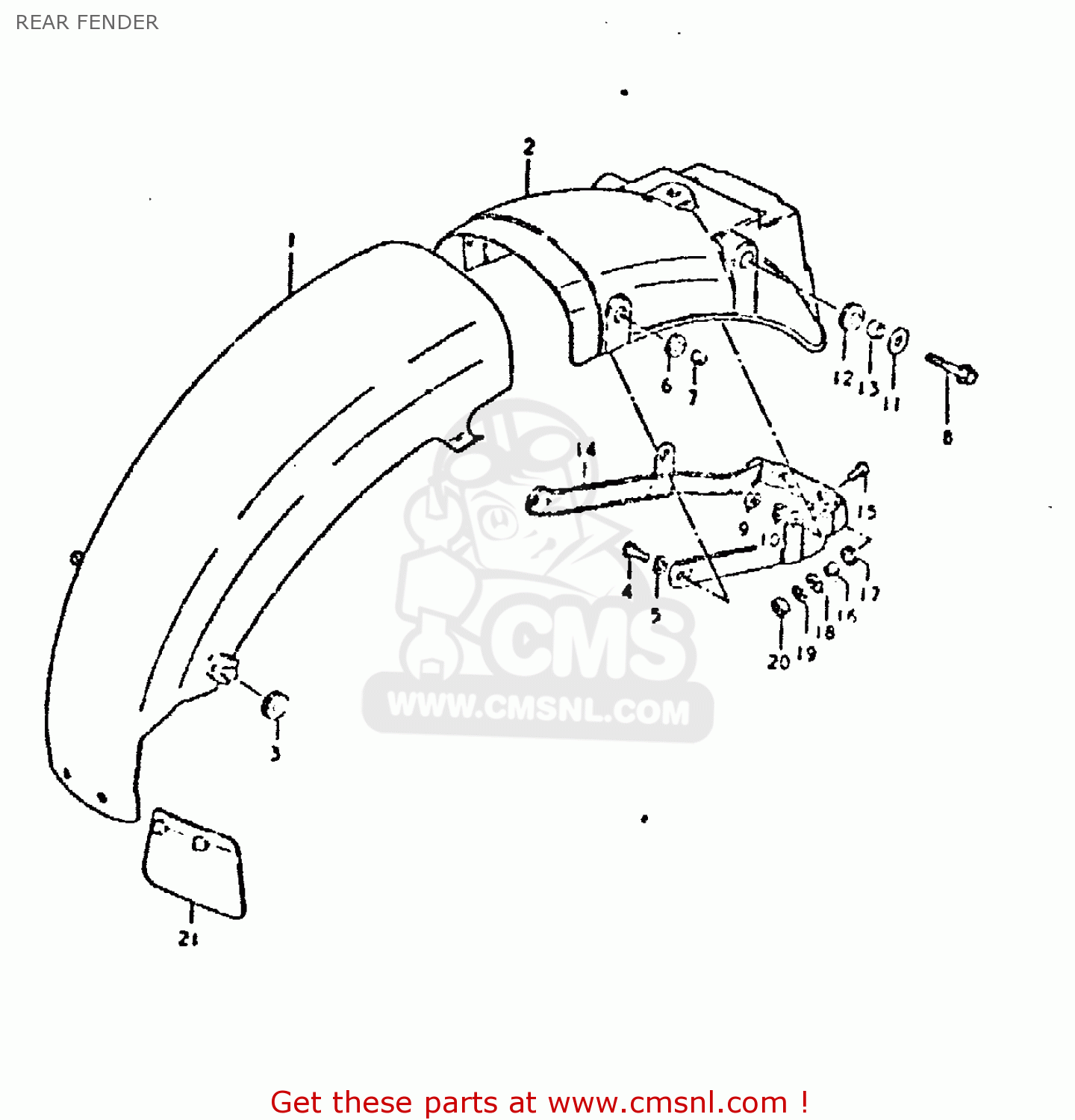

Rear fender diagram GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

prices are in EUR

ref

part #

description

quantity

6311249001
ref: 1

FENDER,REAR

€ 82.50

2-1

6311345400291
ref: 2-1

FENDER,REAR

€ 91.50

2-2

NOTUSED
ref: 2-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

0932008013
ref: 3

CUSHION

€ 4.00

0110706208
ref: 4

BOLT

€ 2.00

0832121068
ref: 5

LOCK WASHER

€ 2.50

0932008007
ref: 6

CUSHION

€ 4.00

0918006038
ref: 7

SPACER(6.1X9X7.5)

€ 2.00

0151708358
ref: 8

BOLT

€ 3.50

0831012088
ref: 9

NUT

€ 2.00

0832121088
ref: 10

LOCK WASHER

€ 2.00

0916008032
ref: 11

WASHER(8.5X26X1.2)

€ 3.50

0932012011
ref: 12

CUSHION

€ 3.00

0918008021
ref: 13

SPACER (8.2X12X7.5)

€ 3.00

6312049000
ref: 14

REINFORCEMENT,REAR FENDER

€ 28.50

0214206207
ref: 15

SCREW

€ 2.00

0918006011
ref: 16

SPACER (6.1X9X9)

€ 2.00

0932008013
ref: 17

CUSHION

€ 4.00

0916006012
ref: 18

WASHER(6,5X22X1.6)

€ 2.00

0832121068
ref: 19

LOCK WASHER

€ 2.50

0831011068
ref: 20

NUT

€ 2.50

6341131900
ref: 21

GUIDE,RR FENDER MUD

€ 8.00
