GEAR SHIFTING

GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

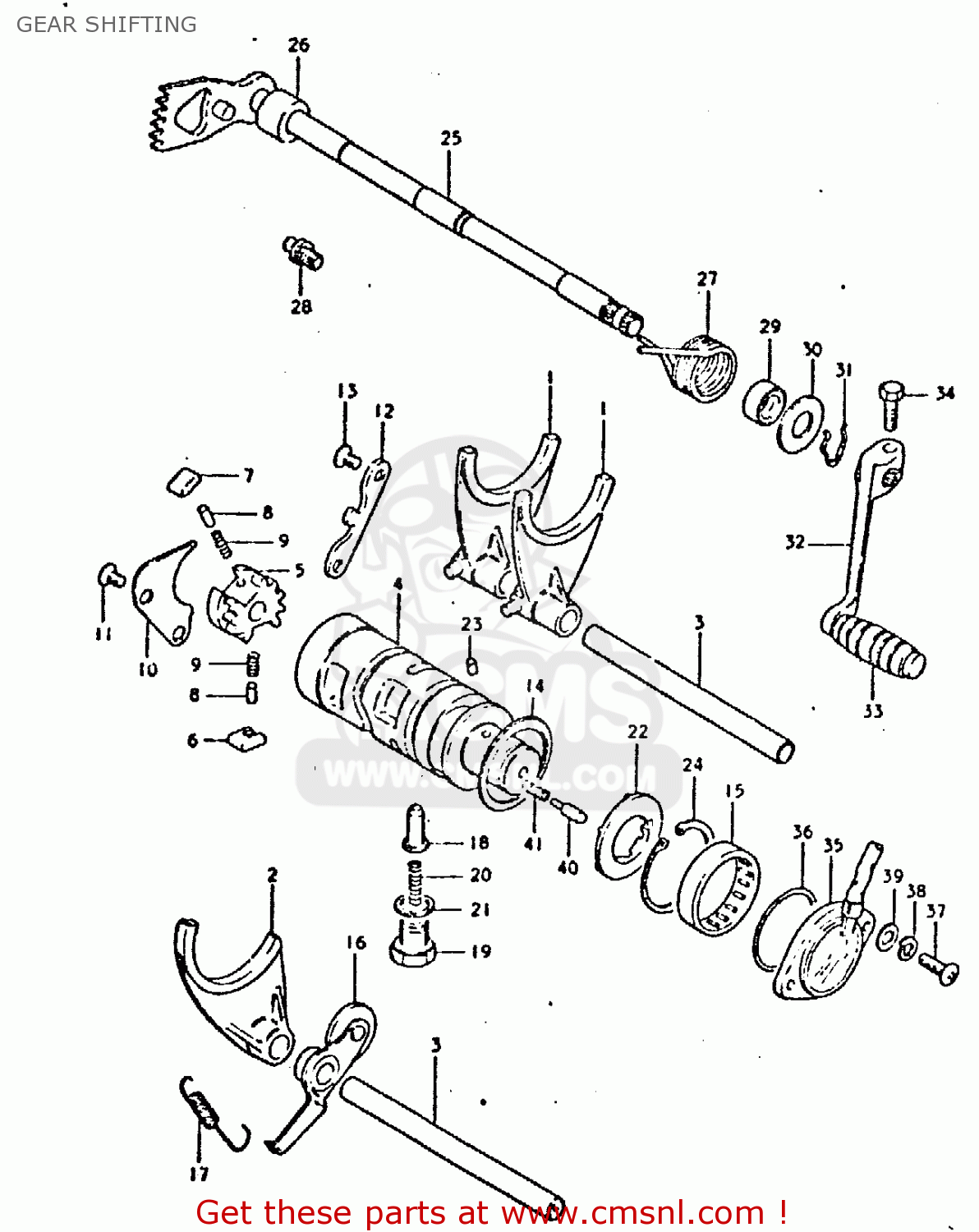

Gear shifting diagram GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

GEAR SHIFTING GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
GEAR SHIFTING GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
GEAR SHIFTING GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
2521134000
ref: 1
FORK,GEAR SHIFT NO.1
2521134000
€ 54.50
2
2523134000
ref: 2
FORK,GEAR SHIFT NO.3
2523134000
€ 72.50
3
2541149200
ref: 3
SHAFT,GEAR SHIFT FORK
€ 13.00
4
2531045400
ref: 4
CAM,GEAR SHIFT
2531045400
€ 108.00
5
2532211000
ref: 5
RETAINER,GEAR SHIFT CAM
2532211000
€ 14.50
6
2532311000
ref: 6
PAWL,GEAR SHIFT NO.1
€ 6.00
7
2532411000
ref: 7
PAWL,GEAR SHIFT NO.2
2532411000
€ 6.00
8
0926105003
ref: 8
PIN(5X8)
0926105003
€ 1.50
9
0944004003
ref: 9
SPRING
0944004003
€ 1.50
10
2533149200
ref: 10
LIFTER,GEAR SHIFT PAWL
2533149200
€ 43.50
11
0212206128
ref: 11
SCREW
0212206128
€ 3.00
12
2534118000
ref: 12
GUIDE,GEAR SHIFT CAM
2534118000
€ 51.50
13
0212206128
ref: 13
SCREW
0212206128
€ 3.00
14
0916040001
ref: 14
WASHER(40X45X1)
0916040001
€ 2.50
15
0926325018
ref: 15
BEARING(25X32X12)
0926325018
€ 17.50
16
2535045400
ref: 16
STOPPER,GEAR SHIFTING
2535045400
€ 8.50
17
0944308019
ref: 17
SPRING
0944308019
€ 2.50
18
2535130010
ref: 18
STOPPER,GEAR SHIFT CAM NO.2
2535130010
€ 6.50
19
2535430000
ref: 19
HOLDER,GEAR SHIFT CAM STOP SPR
2535430000
€ 6.50
20-1
0944006018
ref: 20-1
MODEL T
SPRING
0944006018
€ 1.50
20-2
0944006020
ref: 20-2
MODEL X
SPRING
0944006020
€ 14.00
21
0916814004
ref: 21
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
22
2538145400
ref: 22
PLATE,GEAR SHIFT CAM STOPPER
2538145400
€ 10.50
23
0621104063
ref: 23
PIN 4X6
0621104063
€ 2.00
24
0833111258
ref: 24
CIRCLIP
0833111258
€ 2.00
25
2551045400
ref: 25
SHAFT,GEAR SHIFT
2551045400
€ 88.00
26
0918012088
ref: 26
SPACER
€ 0.00
27
0944426017
ref: 27
SPRING
0944426017
€ 5.00
28
2567101000
ref: 28
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
29
0928512002
ref: 29
OIL SEAL
0928512002
€ 7.00
30
0916012020
ref: 30
WASHER (12.5X27X1.6)
0916012020
€ 2.00
31
0938412001
ref: 31
SPRING,RETAINER
0938412001
€ 2.00
32
2560033003
ref: 32
LEVER ASSEMBLY,GEAR SHIFTING
2560033003
€ 136.00
33
2565216500
ref: 33
RUBBER,GEAR SHIFT PEDAL
2565216500
€ 4.00
34
0110708208
ref: 34
BOLT
0110708208
€ 3.00
35
3772045100
ref: 35
TERMINAL BASE ASSY,GEAR SHIFT
3772045100
€ 92.50
36
0928026003
ref: 36
O-RING (D:2.4 ID:26.2)
0928026003
€ 2.50
37
0211205208
ref: 37
SCREW 5X20
0211205208
€ 3.00
38
0832121058
ref: 38
LOCK WASHER
0832121058
€ 2.00
39
0832221058
ref: 39
WASHER
€ 2.50
40
0920905011
ref: 40
PIN(5X15.5)
0920905011
€ 2.00
41
0944004010
ref: 41
SPRING
0944004010
€ 1.50
