REAR WHEEL (GSX750T, GSX750X)

GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

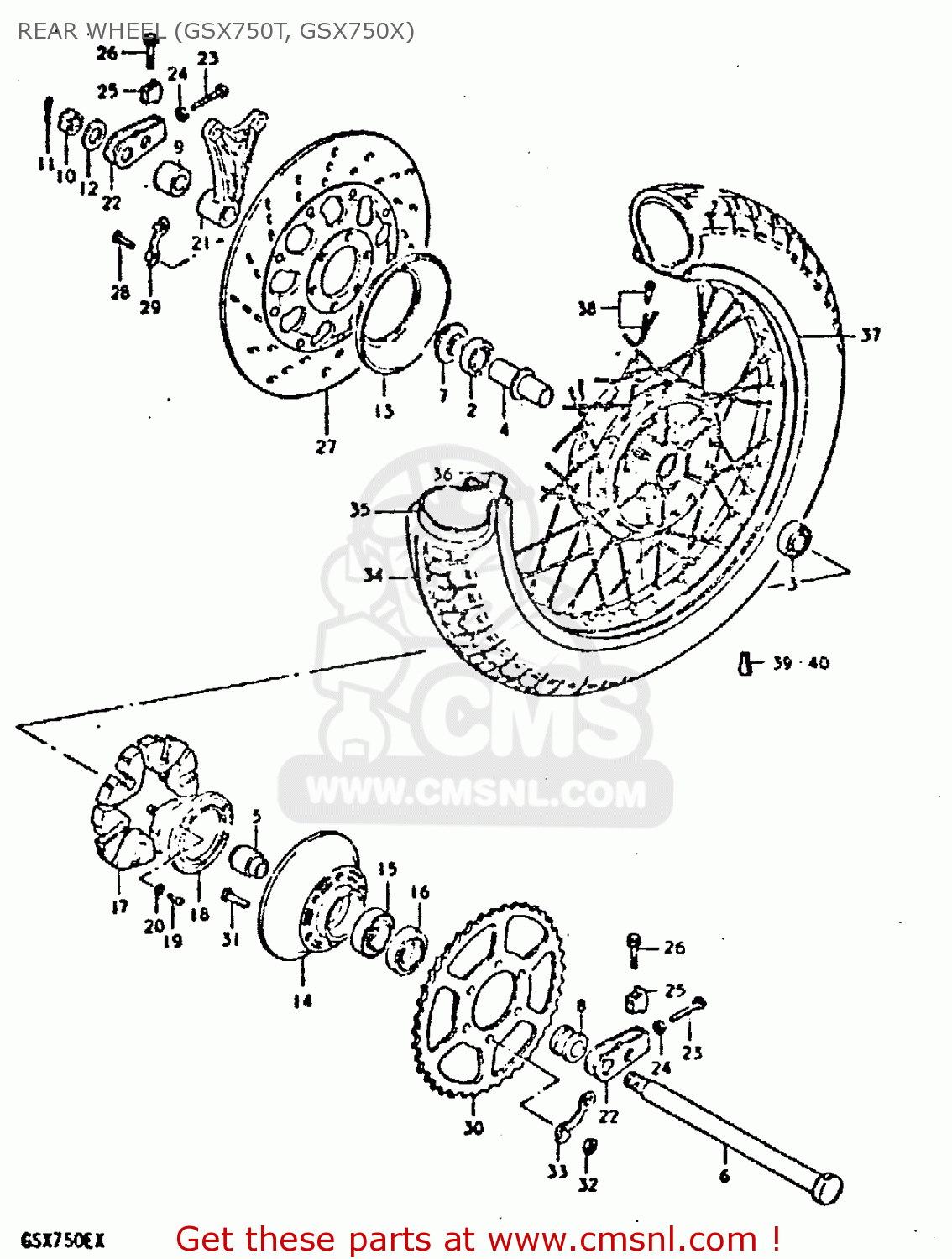

Rear wheel (gsx750t, gsx750x) diagram GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

REAR WHEEL (GSX750T, GSX750X) GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
REAR WHEEL (GSX750T, GSX750X) GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
REAR WHEEL (GSX750T, GSX750X) GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
6411045001
ref: 1
DRUM,REAR HUB
€ 520.00
2
0812362047
ref: 2
BEARING
0812362047
€ 17.00
3
0814362047
ref: 3
BEARING, LH
€ 21.00
4
6473045000
ref: 4
SPACER,REAR HUB BEARING
6473045000
€ 15.50
5
6473331000
ref: 5
SPACER,REAR HUB BEARING
6473331000
€ 20.00
6
6471149000
ref: 6
AXLE,REAR
€ 59.00
7
6474045001
ref: 7
SPACER,REAR AXLE
€ 15.00
8
0918020054
ref: 8
SPACER(20X33X28.3)
0918020054
€ 13.00
9
0918020070
ref: 9
SPACER (20X38X17)
0918020070
€ 10.00
10-1
0831431188
ref: 10-1
NUT 18MM
0831431188
€ 5.00
10-2
NOTUSED
ref: 10-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
11
0411140308
ref: 11
PIN,COTTER
0411140308
€ 1.50
12
0916019008
ref: 12
WASHER(19X34X4)
0916019008
€ 3.00
13
6417145000
ref: 13
COVER,REAR WHEEL HUB
6417145000
€ 10.00
14
6461131001
ref: 14
DRUM,REAR SPROCKET MOUNT
€ 140.00
15
0811363050
ref: 15
BEARING
0811363050
€ 21.50
16
0928533001
ref: 16
SEAL,OIL(33X62X7)
0928533001
€ 20.00
17
6465131000
ref: 17
ABSORBER,REAR HUB SHOCK
6465131000
€ 9.50
18
6467145000
ref: 18
PLATE,REAR HUB SHOCK ABSORBER
€ 11.00
19
0211205108
ref: 19
SCREW
0211205108
€ 2.00
20
0832121058
ref: 20
LOCK WASHER
0832121058
€ 2.00
21
6972147011
ref: 21
BRACKET,RR,CALIPER
6972147011
€ 29.00
22
6141031001
ref: 22
FROM 61410-31000
ADJUSTER,CHAIN
6141031001
€ 50.00
23
0910408006
ref: 23
BOLT
0910408006
€ 3.00
24
0831012088
ref: 24
NUT
0831012088
€ 2.00
25
6143331000
ref: 25
SUPPORTER,CHAIN ADJUST
6143331000
€ 22.50
26
0151708408
ref: 26
BOLT (8X40)
€ 3.50
27
5921018450
ref: 27
DISC,RR BRAKE
5921018450
€ 446.00
28
0910008094
ref: 28
BOLT(8X30)
0910008094
€ 2.50
29
0916908016
ref: 29
WASHER
0916908016
€ 3.50
30
6451145001
ref: 30
SPROCKET,RR
6451145001
€ 82.00
31
0911910002
ref: 31
BOLT
0911910002
€ 3.50
32
0831012108
ref: 32
NUT
0831012108
€ 2.50
33
0916910007
ref: 33
WASHER
0916910007
€ 7.50
34-1
6510045036
ref: 34-1
BS, MODEL T
TIRE
€ 0.00
34-2
6510045430
ref: 34-2
BS, MODEL X
TIRE
€ 0.00
34-3
6510045620
ref: 34-3
DUNLOP, MODEL T
TIRE (4.00H18)
€ 0.00
35
6520049015
ref: 35
TUBE,INNER
€ 39.00
36
6526115010
ref: 36
PROTECTOR,WHEEL,INNER
€ 3.50
37
6531115021
ref: 37
RIM,WHEEL
6531115021
€ 170.50
38
6530045010
ref: 38
SPOKE SET
€ 0.00
39
5541111000
ref: 39
BALANCER,WHEEL (B)
€ 4.50
40
5541211000
ref: 40
BALANCER,WHEEL (30G)
5541211000
€ 8.00
