FRAME

GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

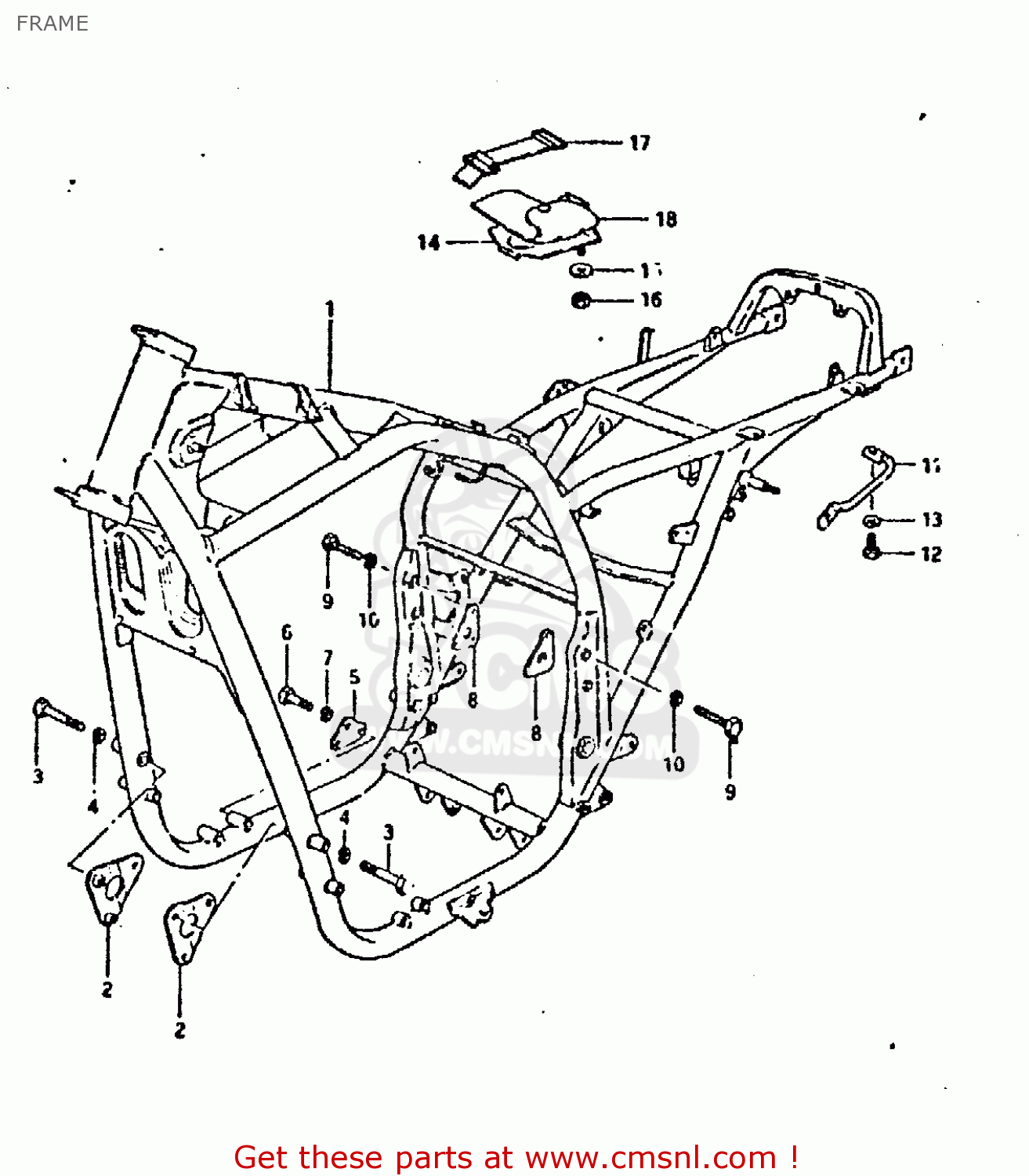

Frame diagram GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

FRAME GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

FRAME GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

prices are in EUR

ref

part #

description

quantity

1-1

4110045400019
ref: 1-1

FRAME

€ 0.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-3

NOTUSED
ref: 1-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-4

NOTUSED
ref: 1-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-5

NOTUSED
ref: 1-5

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

4191049200019
ref: 2

PLATE,ENG MTG NO.1

€ 18.50

3

0110708658
ref: 3

BOLT

€ 3.00

4

0832121088
ref: 4

LOCK WASHER

€ 2.00

5

4192149000019
ref: 5

PLATE,ENGINE MOUNTING

€ 30.00

6

0110708168
ref: 6

BOLT

€ 2.00

7

0832121088
ref: 7

LOCK WASHER

€ 2.00

8

4194049000019
ref: 8

PLATE,ENGINE MOUNTING

€ 60.00

9

0110708358
ref: 9

BOLT

€ 3.50

10

0832121088
ref: 10

LOCK WASHER

€ 2.00

11

4161049201
ref: 11

GRIP,FRAME

€ 28.50

12

0110708168
ref: 12

BOLT

€ 2.00

13

0832211088
ref: 13

WASHER

€ 2.00

14

4155049200
ref: 14

HOLDER,TOOL

€ 10.00

15

0916006007
ref: 15

WASHER

€ 2.00

16

0831011068
ref: 16

NUT

€ 2.50

17

0946200072
ref: 17

BAND

€ 3.50

18-1

0980000215
ref: 18-1
* : ASTERISK SHOWS E

TOOL SET

€ 50.00

18-2

NOTUSED
ref: 18-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00
