CRANKSHAFT

GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

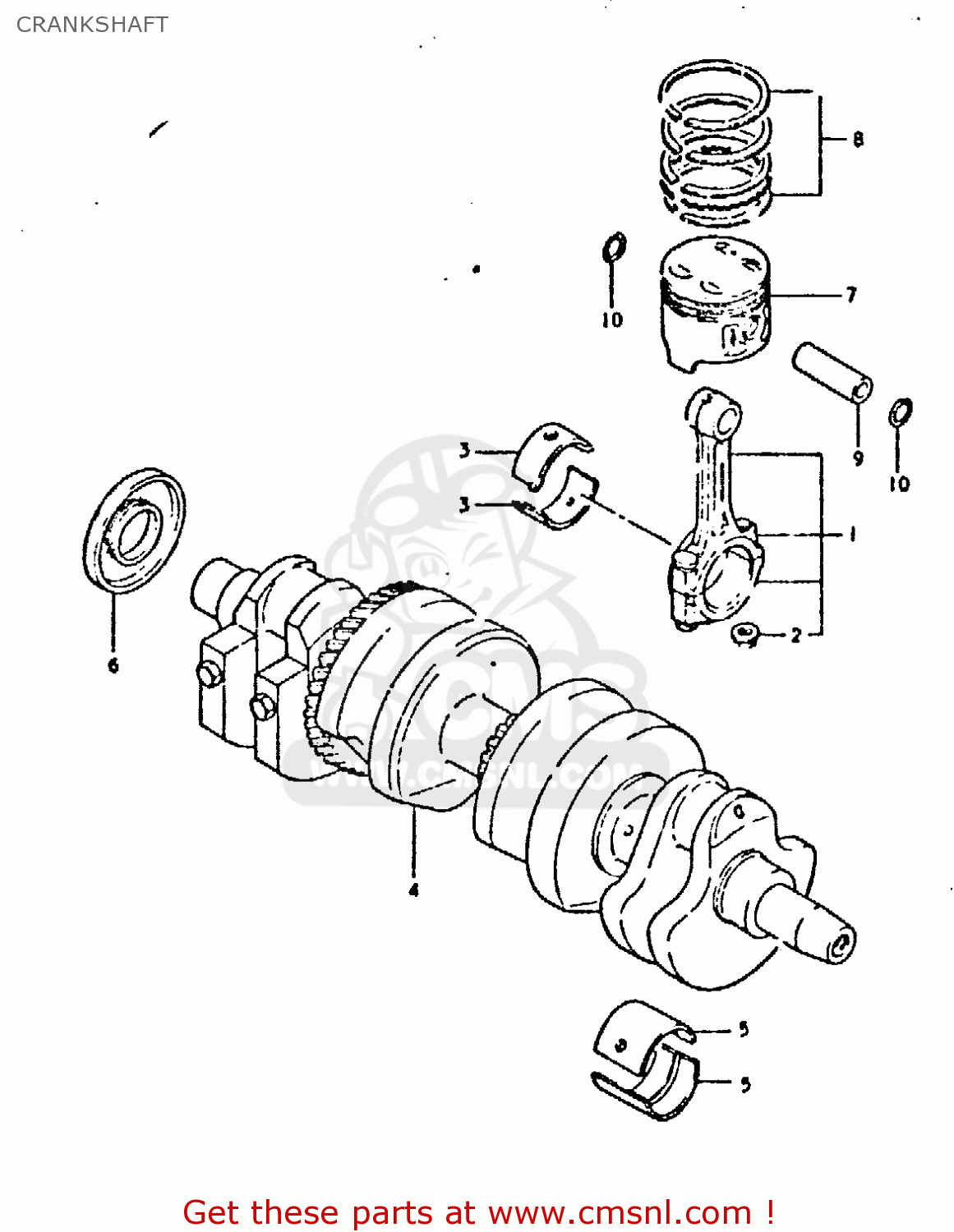

Crankshaft diagram GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

CRANKSHAFT GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
CRANKSHAFT GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
CRANKSHAFT GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
1216045400
ref: 1
CONNECTING ROD ASSEMBLY
1216045400
€ 91.50
2
0915908033
ref: 2
NUT
0915908033
€ 2.50
3-1
1216445400010
ref: 3-1
GREEN
BEARING,CRANK PIN
1216445400010
€ 19.00
3-2
1216445400020
ref: 3-2
BLACK
BEARING,CRANK PIN
1216445400020
€ 19.00
3-3
1216445400030
ref: 3-3
BROWN
BEARING,CRANK PIN
€ 19.00
3-4
1216445400040
ref: 3-4
YELLOW
BEARING,CRANK PIN
1216445400040
€ 19.00
3-5
1216445400025
ref: 3-5
US:0.25
BEARING,CRANK PIN
€ 12.00
3-6
1216445400050
ref: 3-6
US:0.5
BEARING,CRANK PIN
1216445400050
€ 10.50
4
1222045402
ref: 4
FROM 12220-45401
CRANKSHAFT
€ 1,178.00
5-1
1222945400010
ref: 5-1
GREEN
METAL CRANKSHAFT
1222945400010
€ 10.00
5-2
1222945400020
ref: 5-2
BLACK
METAL CRANKSHAFT
1222945400020
€ 10.00
5-3
1222945400030
ref: 5-3
BROWN
METAL CRANKSHAFT
1222945400030
€ 10.00
5-4
1222945400040
ref: 5-4
YELLOW
METAL CRANKSHAFT
1222945400040
€ 9.00
5-5
1222945400025
ref: 5-5
US:0.25
BEARING,CRANKSHAFT(US:0.25)
1222945400025
€ 11.50
5-6
1222945400050
ref: 5-6
US:0.5
BEARING,CRANKSHAFT(US:0.5)
1222945400050
€ 10.50
6
0928330031
ref: 6
OIL SEAL
0928330031
€ 15.00
7-1
1211145401
ref: 7-1
MODEL T
PISTON
1211145401
€ 68.00
7-2
1211145402
ref: 7-2
MODEL X
PISTON (67.00MM)
1211145402
€ 68.00
7-3
1211145401050
ref: 7-3
MODEL T
PISTON
1211145401050
€ 89.00
7-4
1211145402050
ref: 7-4
MODEL X
PISTON
1211145402050
€ 89.00
7-5
1211145401100
ref: 7-5
MODEL T
PISTON
€ 72.00
7-6
1211145402100
ref: 7-6
MODEL X
PISTON
1211145402100
€ 72.00
8-1
1214045410
ref: 8-1
RING SET,PISTON
1214045410
€ 62.50
8-2
1214045410050
ref: 8-2
RING SET,PISTON (OS:0.5)
1214045410050
€ 99.50
8-3
1214045410100
ref: 8-3
RING SET,PISTON (OS:1.0)
1214045410100
€ 89.00
9
1215192201
ref: 9
PIN,PISTON (18MM)
1215192201
€ 14.00
10
0938118002A
ref: 10
CIRCLIP,PISTON PIN
0938118002A
€ 1.50
