FRONT WHEEL (GSX750T, GSX750X)

GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

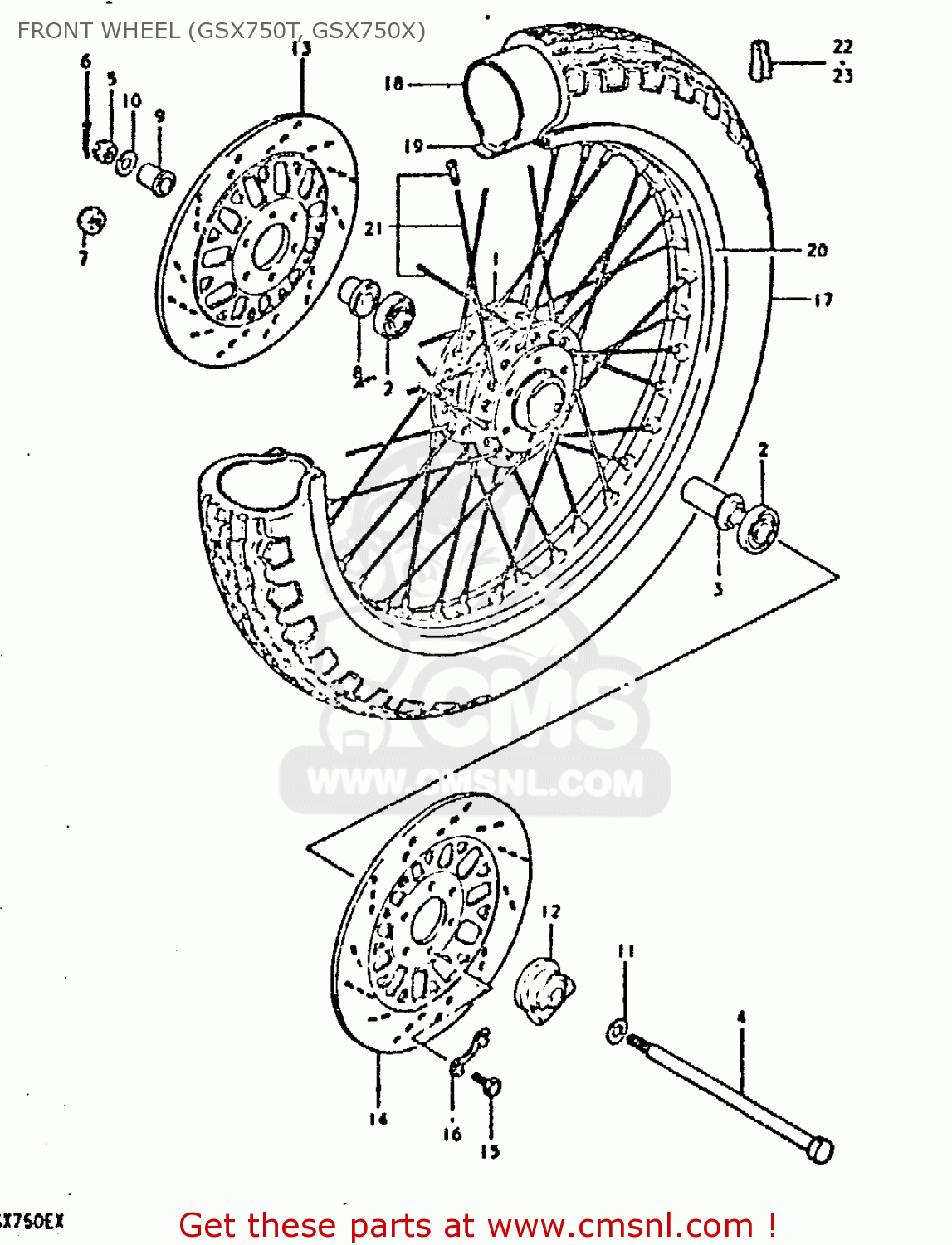

Front wheel (gsx750t, gsx750x) diagram GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

FRONT WHEEL (GSX750T, GSX750X) GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
FRONT WHEEL (GSX750T, GSX750X) GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
FRONT WHEEL (GSX750T, GSX750X) GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
5411147001
ref: 1
DRUM,FRONT HUB
5411147001
€ 194.50
2
0812363027
ref: 2
BEARING
0812363027
€ 19.00
3
5473018400
ref: 3
SPACER,FR HUB BEARING
5473018400
€ 13.00
4
5471149000
ref: 4
AXLE,FR
5471149000
€ 79.50
5
0831431128
ref: 5
NUT 12MM
0831431128
€ 2.00
6
0411130308
ref: 6
COTTER PIN
0411130308
€ 1.50
7
NOTUSED
ref: 7
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
8
5474018402
ref: 8
SPACER,FR AXLE,R
5474018402
€ 18.50
9
5474149101
ref: 9
SPACER
5474149101
€ 14.00
10
0832221128
ref: 10
WASHER
0832221128
€ 2.00
11
0916015002
ref: 11
WASHER(15.5X26X2.3)
0916015002
€ 2.00
12
5460049100
ref: 12
BOX ASSY,SPEEDOMETER GEAR
5460049100
€ 90.00
13
5921145250
ref: 13
DISC,FR BRAKE,R
5921145250
€ 149.00
14
5922145250
ref: 14
DISC,FR BRAKE,L
5922145250
€ 149.00
15
0910008140
ref: 15
BOLT(8X25)
0910008140
€ 2.00
16
0916908016
ref: 16
WASHER
0916908016
€ 3.50
17-1
5510045031
ref: 17-1
BS, MODEL T
TIRE,FRONT
€ 0.00
17-2
5510047615
ref: 17-2
DUNLOP, MODEL T
TIRE,FRONT
€ 0.00
17-3
5510045430
ref: 17-3
BS, MODEL X
TIRE,FRONT
€ 0.00
18
5520015010
ref: 18
TUBE,INNER
€ 41.00
19
5526115010
ref: 19
PROTECTOR,WHL INR TUBE
5526115010
€ 2.50
20
5531134020
ref: 20
RIM,FR WHEEL
5531134020
€ 144.00
21
5532034805
ref: 21
SPOKE SET,FRONT
5532034805
€ 71.00
22
5541111000
ref: 22
BALANCER,WHEEL (B)
€ 4.50
23
5541211000
ref: 23
BALANCER,WHEEL (30G)
5541211000
€ 8.00
