REAR CALIPERS

GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

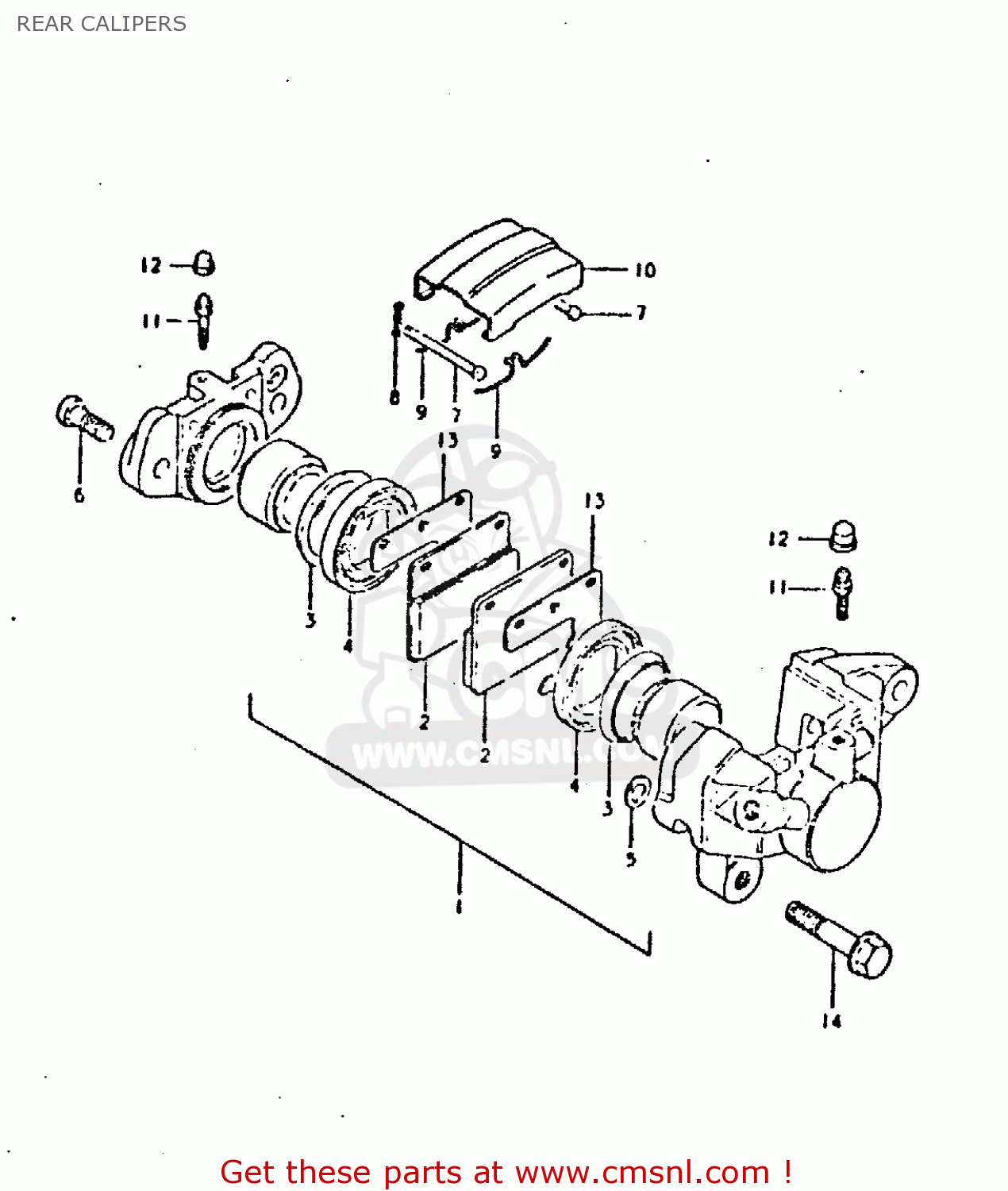

Rear calipers diagram GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

REAR CALIPERS GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
REAR CALIPERS GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
REAR CALIPERS GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
0
6910045020
ref: 0
CALIPER ASSEMBLY,REAR
€ 843.50
1
6910045850
ref: 1
PISTON SET
€ 241.00
2
6913045020
ref: 2
PAD,BRAKE
€ 66.50
3
5910718410
ref: 3
SEAL,PISTON
5910718410
€ 17.00
4
6910845000
ref: 4
BOOT,PISTON
6910845000
€ 10.00
5
6910745000
ref: 5
SEAL,PISTON
6910745000
€ 15.50
6
6914545000
ref: 6
BOLT,HOUSING
6914545000
€ 7.00
7
6914145000
ref: 7
PIN,PAD
6914145000
€ 6.50
8
6914245000
ref: 8
CLIP,PAD PIN
6914245000
€ 4.50
9
6914345001
ref: 9
SPRING
6914345001
€ 8.00
10
6915145000
ref: 10
COVER,DUST
6915145000
€ 26.50
11
5912118410
ref: 11
BLEEDER
5912118410
€ 8.00
12
5912218410
ref: 12
CAP,BREATHER
5912218410
€ 6.00
13
6915245001
ref: 13
SHIM,RR CALIPER
6915245001
€ 9.50
14
0152710305
ref: 14
BOLT
€ 3.50
