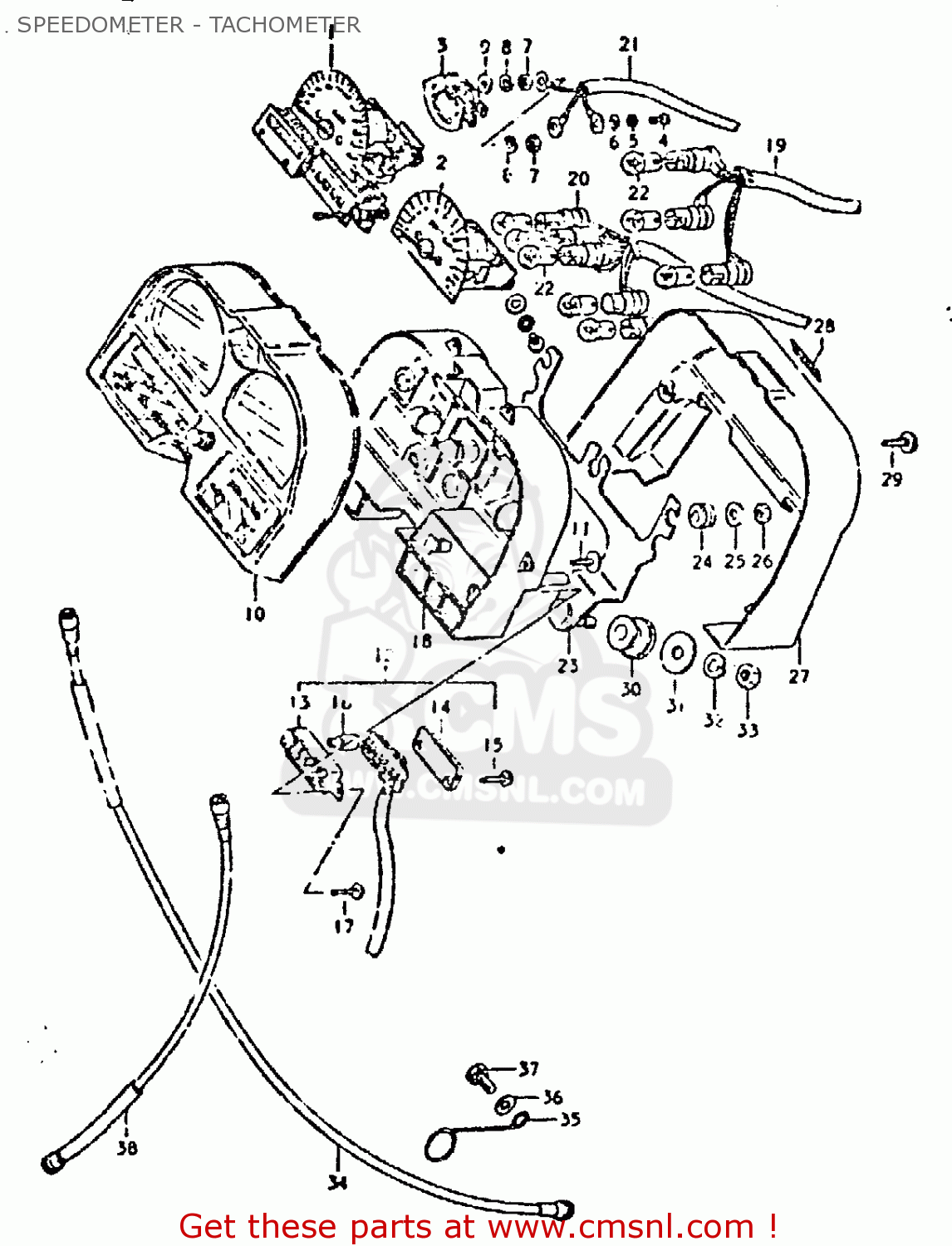

SPEEDOMETER - TACHOMETER - GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

ref

part #

description

quantity

1-1

3412045430
ref: 1-1
MILE & KILO SCALE

SPEEDOMETER

€ 198.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

3422045400
ref: 2

METER,TACHOMETER

€ 159.00

3

3432045410
ref: 3

METER,FUEL

€ 78.50

4

0211203128
ref: 4

SCREW 3X12

€ 2.50

5

0832121038
ref: 5

LOCK WASHER

€ 1.50

6

0832221038
ref: 6

WASHER

€ 2.00

7

0831022048
ref: 7

NUT 4MM

€ 2.00

8

0832121048
ref: 8

LOCK WASHER

€ 2.00

9

0832221048
ref: 9

WASHER

€ 2.00

10-1

3415045410
ref: 10-1
FOR MILE

HOOD,METER

€ 98.50

10-2

NOTUSED
ref: 10-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

11

0314104128
ref: 11

SCREW

€ 1.50

12

3645045101
ref: 12

INDICATOR ASSEMBLY,GEAR POSITION

€ 117.00

13

3645245100
ref: 13

CASE,GEAR INDICATOR

€ 14.50

14

3645445100
ref: 14

COVER,LWR

€ 7.00

15

3645645100
ref: 15

SCREW,GEAR INDICATOR

€ 2.00

16

0947112071
ref: 16

BULB(14V1.12W)

€ 5.00

17

3645745100
ref: 17

SCREW

€ 2.00

18

3411145410
ref: 18

CASE,COMBINATION METER

€ 65.50

19

3417345410
ref: 19

SOCKET,METER

€ 42.00

20

3632545410
ref: 20

SOCKET

€ 28.00

21

3437845410
ref: 21

LEAD WIRE,FUEL METER

€ 23.00

22

0947112001
ref: 22

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

23-1

3495045410
ref: 23-1
MODEL T

BRACKET,METER

€ 28.00

23-2

3495045411
ref: 23-2
MODEL X

BRACKET,COMBINATION METER

€ 28.00

24

3418945410
ref: 24

CUSHION,METER

€ 4.00

25

3418145410
ref: 25

WASHER,METER

€ 2.00

26

0831011058
ref: 26

NUT

€ 2.50

27-1

3419345410
ref: 27-1
MODEL T

COVER,METER,UNDER

€ 36.50

27-2

3419345411
ref: 27-2
MODEL X

COVER,METER,UNDER

€ 36.50

28

3415745410
ref: 28

EMBLEM

€ 26.00

29

0314104168
ref: 29

SCREW

€ 2.00

30

3495631001
ref: 30
FROM 34956-31000

CUSHION,METER BRACKET

€ 4.50

31

0916008002
ref: 31

WASHER (8.5X29X1.6)

€ 2.00

32

0832121088
ref: 32

LOCK WASHER

€ 2.00

33

0831012088
ref: 33

NUT

€ 2.00

34-1

3491045410
ref: 34-1
MODEL T

CABLE ASSEMBLY,SPEEDOMETER

€ 20.00

34-2

3491045420
ref: 34-2
MODEL X

CABLE ASSEMBLY,SPEEDOMETER

€ 19.00

35-1

3493837000
ref: 35-1
MODEL T

GUIDE,SPEEDOMETER CABLE

€ 14.50

35-2

3493845100
ref: 35-2
MODEL X

CLAMP,SPEEDOMETER CABLE

€ 14.50

36

0832221068
ref: 36

WASHER

€ 2.00

37

0110706168
ref: 37

BOLT, UPPER

€ 3.00

38-1

3494047030
ref: 38-1
MODEL T, TO 34940-47

CABLE ASSEMBLY,TACHOMETER

€ 20.50

38-2

3494047031
ref: 38-2
MODEL X

CABLE ASSEMBLY,TACHOMETER

€ 20.50
