SIGNAL GENERATOR

GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

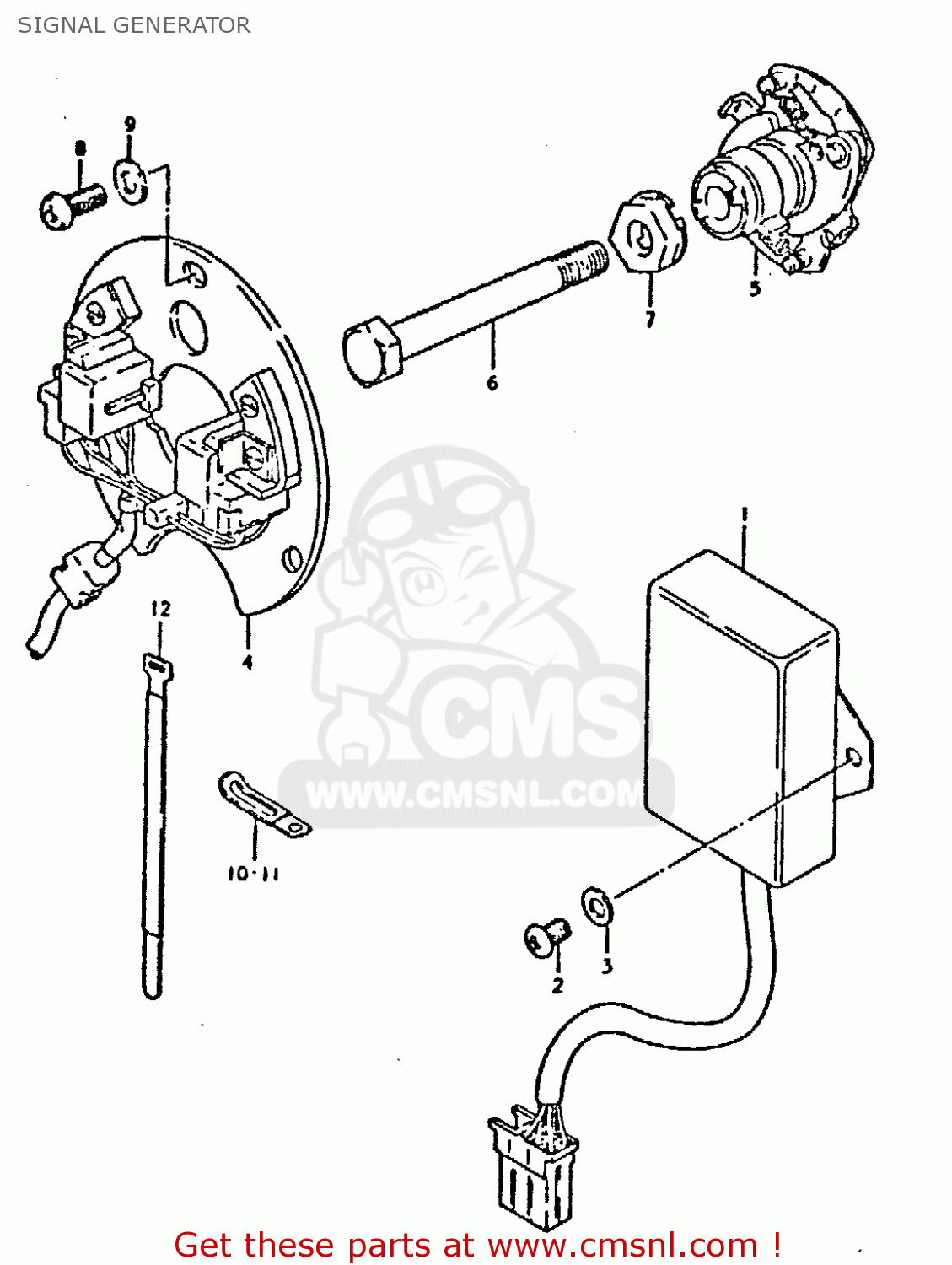

Signal generator diagram GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

prices are in EUR

ref

part #

description

quantity

3290045110
ref: 1

IGNITER UNIT

€ 492.50

0211206108
ref: 2

SCREW

€ 1.50

0832221068
ref: 3

WASHER

€ 2.00

3311045110
ref: 4

SIGNAL GENERATOR ASSEMBLY

€ 296.50

3312045410
ref: 5

GOVERNOR ASSEMBLY

€ 155.50

0110708658
ref: 6

BOLT

€ 3.00

3346547000
ref: 7

WASHER

€ 19.00

0912505024
ref: 8

SCREW(5X12)

€ 2.00

0916005027
ref: 9

WASHER

€ 2.50

0940406401
ref: 10

CLAMP L:35

€ 2.50

0940408401
ref: 11

CLAMP

€ 3.50

0940718301
ref: 12

CLAMP

€ 6.00
