SEAT TAIL COVER (MODEL X : 24L)

GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

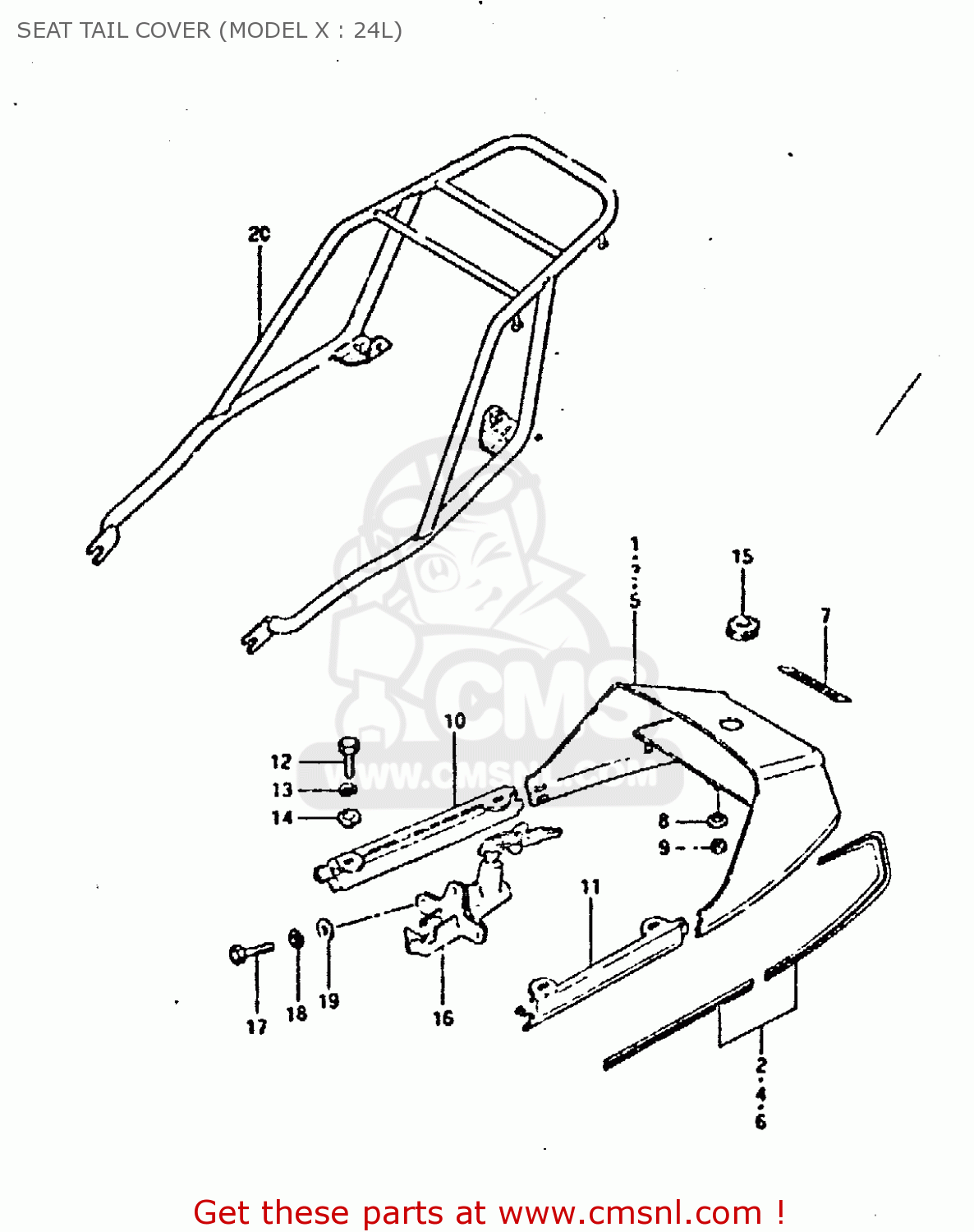

Seat tail cover (model x : 24l) diagram GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

SEAT TAIL COVER (MODEL X : 24L) GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
SEAT TAIL COVER (MODEL X : 24L) GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
SEAT TAIL COVER (MODEL X : 24L) GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
455024983008E
ref: 1
COVER SET, SEAT TAIL (BLACK)
€ 149.50
2
681604545071L
ref: 2
TAPE SET
€ 0.00
3
455024984007P
ref: 3
COVER SET, SEAT TAIL (RED)
€ 149.50
4
681604545073K
ref: 4
TAPE SET
€ 0.00
5
455024984004Y
ref: 5
COVER SET, SEAT TAIL (BLUE)
€ 149.50
6
681604545073K
ref: 6
TAPE SET
€ 0.00
7
6816649200998
ref: 7
EMBLEM (GOLD/BLACK)
6816649200998
€ 3.00
8
0916906016
ref: 8
WASHER
0916906016
€ 1.50
9
0831921068
ref: 9
NUT 6MM
0831921068
€ 2.00
10-1
451914920008E
ref: 10-1
MOULDING, SEAT RH (BLACK)
451914920008E
€ 38.00
10-2
451914920007P
ref: 10-2
MOULDING, SEAT RH (RED)
€ 38.00
10-3
451914920004Y
ref: 10-3
MOULDING, SEAT RH (BLUE)
451914920004Y
€ 38.00
11-1
451924920008E
ref: 11-1
MOULDING, SEAT LH (BLACK)
451924920008E
€ 49.00
11-2
451924920007P
ref: 11-2
MOULDING, SEAT LH (RED)
€ 49.00
11-3
451924920004Y
ref: 11-3
MOULDING, SEAT LH (BLUE)
451924920004Y
€ 49.00
12
0110706128
ref: 12
BOLT
0110706128
€ 2.00
13
0832121068
ref: 13
LOCK WASHER
0832121068
€ 2.50
14
0916906016
ref: 14
WASHER
0916906016
€ 1.50
15
4552249200
ref: 15
GROMMET,SEAT LOCK HOLE
4552249200
€ 5.50
16
9570049830
ref: 16
LOCK SET,SEAT
9570049830
€ 81.50
17
0110706128
ref: 17
BOLT
0110706128
€ 2.00
18
0832121068
ref: 18
LOCK WASHER
0832121068
€ 2.50
19
0832211068
ref: 19
WASHER 6MM
€ 2.00
20
4631045400
ref: 20
OPT
CARRIER
€ 67.00
