COWLING BODY
GSXR1000 2014 (L4) USA (E03)

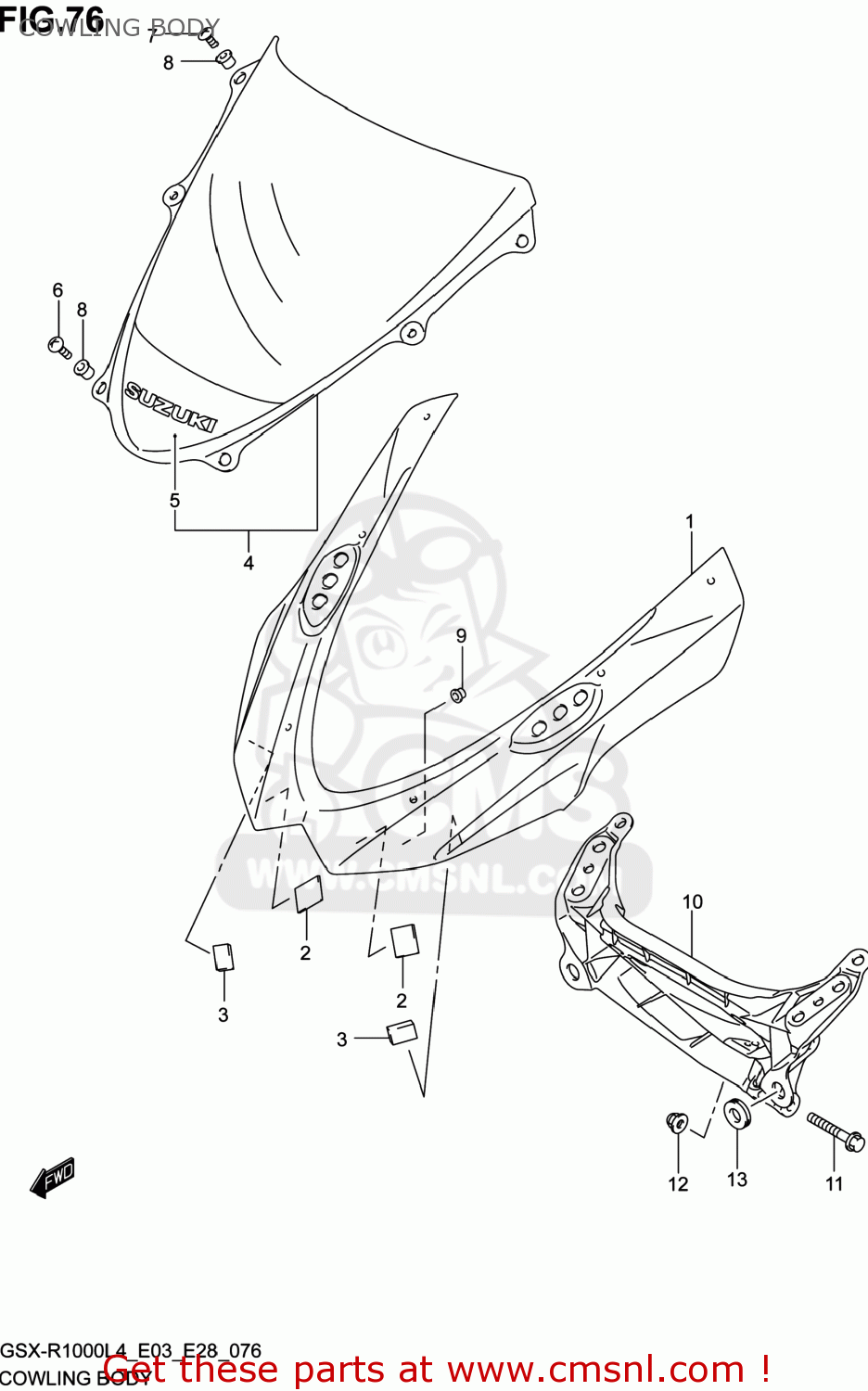

Cowling body diagram GSXR1000 2014 (L4) USA (E03)
COWLING BODY GSXR1000 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
9441147H00YWW
ref: 1-1
BODY,COWLING
€ 242.50
1-2
9441147H00PGZ
ref: 1-2
BODY,COWLING
€ 251.00
2
4457202F01
ref: 2
FASTENER
€ 8.50
3
4457237H00
ref: 3
FASTENER,COWLING
€ 5.50
4
6431047H00
ref: 4
WINDSCREEN
€ 67.50
5
6827547H00
ref: 5
TAPE,WINDSCREEN
€ 32.00
6
0912505133
ref: 6
SCREW(5X18)
€ 2.50
7
0912505134
ref: 7
SCREW(5X15)
€ 2.50
8
0915905019
ref: 8
NUT
€ 5.50
9
0932005018
ref: 9
CUSHION
€ 2.00
10
9451147H00
ref: 10
BRACE,COWLING
€ 303.50
11
015500845A
ref: 11
BOLT
€ 3.00
12
083132008A
ref: 12
NUT
€ 2.50
13
0932008028
ref: 13
CUSHION
€ 2.50
