ELECTRICAL (GSX-R1000L4 E33)
GSXR1000 2014 (L4) USA (E03)

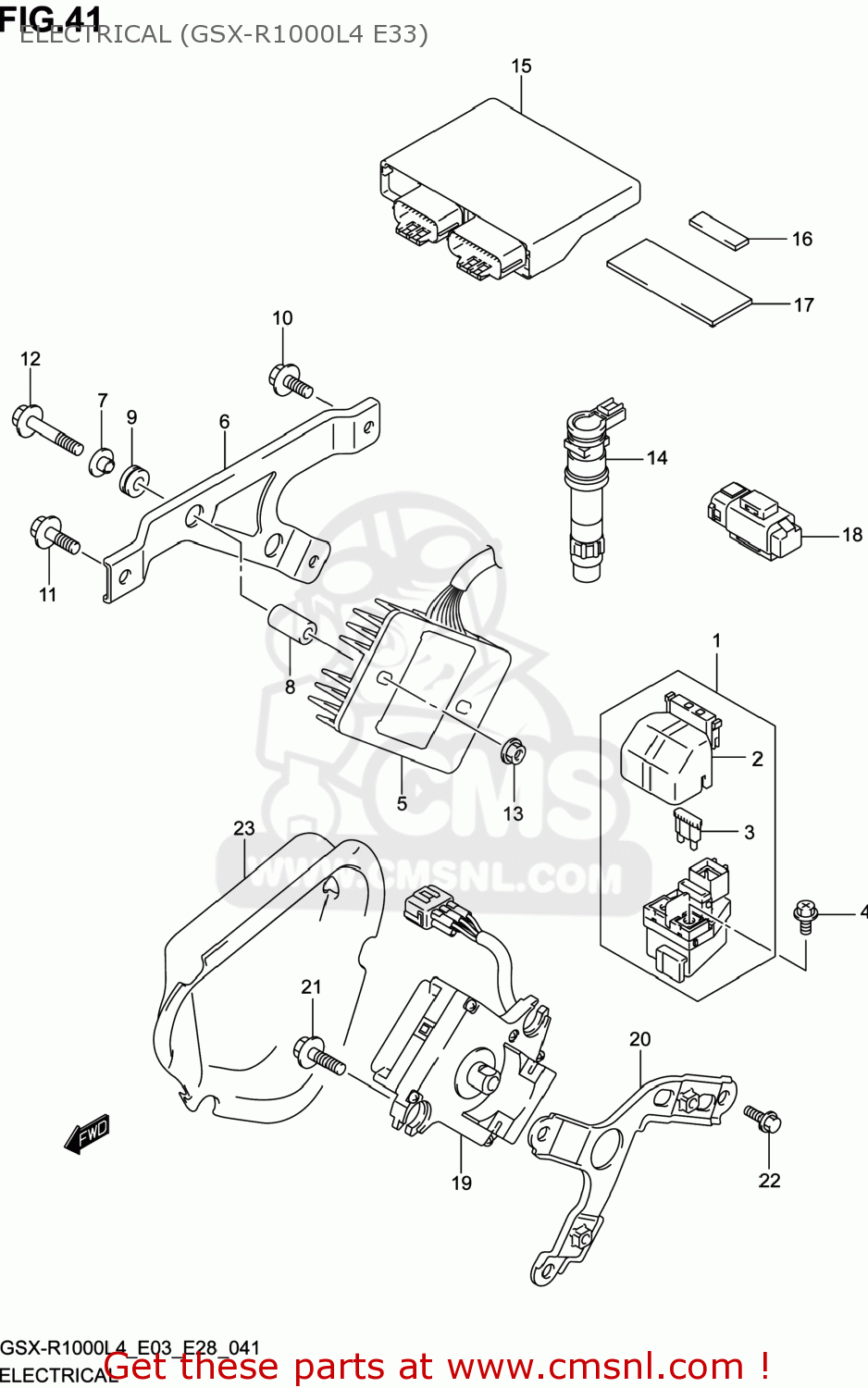

Electrical (gsx-r1000l4 e33) diagram GSXR1000 2014 (L4) USA (E03)
ELECTRICAL (GSX-R1000L4 E33) GSXR1000 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180041G10
ref: 1
RELAY ASSY,STARTING MOTOR
€ 103.00
2
3186138G00
ref: 2
COVER
€ 3.50
3
0948130501
ref: 3
FUSE(30A)
€ 0.50
4
0912806013
ref: 4
SCREW(6X8)
€ 1.50
5
3280047H00
ref: 5
RECTIFIER ASSY
€ 268.50
6
3283147H10
ref: 6
BRACKET,RECT FTG
€ 33.00
7
0918006325
ref: 7
SPACER(6.2X8.4X6.9)
€ 3.00
8
0918006345
ref: 8
SPACER(6.2X14.5X26)
€ 6.50
9
0932008066
ref: 9
CUSHION
€ 7.50
10
015500616A
ref: 10
BOLT
€ 2.50
11
0910306286
ref: 11
BOLT(6X20)
€ 2.50
12
015500645A
ref: 12
BOLT
€ 2.50
13
083161006A
ref: 13
NUT
€ 2.50
14
3341047H00
ref: 14
COIL ASSY,IGNITION
€ 113.50
15
3292047HJ0
ref: 15
CONTROL UNIT,FI
€ 1,068.50
16
3365223H20
ref: 16
CUSHION,FI CONTROL UNIT
€ 2.50
17
3365234000
ref: 17
33652-07D00
PROTECTOR(30X80X2)
€ 4.50
18
3396027G00
ref: 18
SENSOR ASSY,FUEL CUT
€ 72.00
19
3397047H01
ref: 19
ACTUATOR ASSY,EXHAUST CONTROL
€ 254.00
20
3397147H00
ref: 20
HOLDER,ACTUATOR
€ 18.50
21
0911606202
ref: 21
BOLT(6X25)
€ 1.50
22
015470612A
ref: 22
BOLT
€ 2.00
23
3397747H00
ref: 23
COVER,ACTUATOR
€ 24.50
