STAND
GSXR1000 2014 (L4) USA (E03)

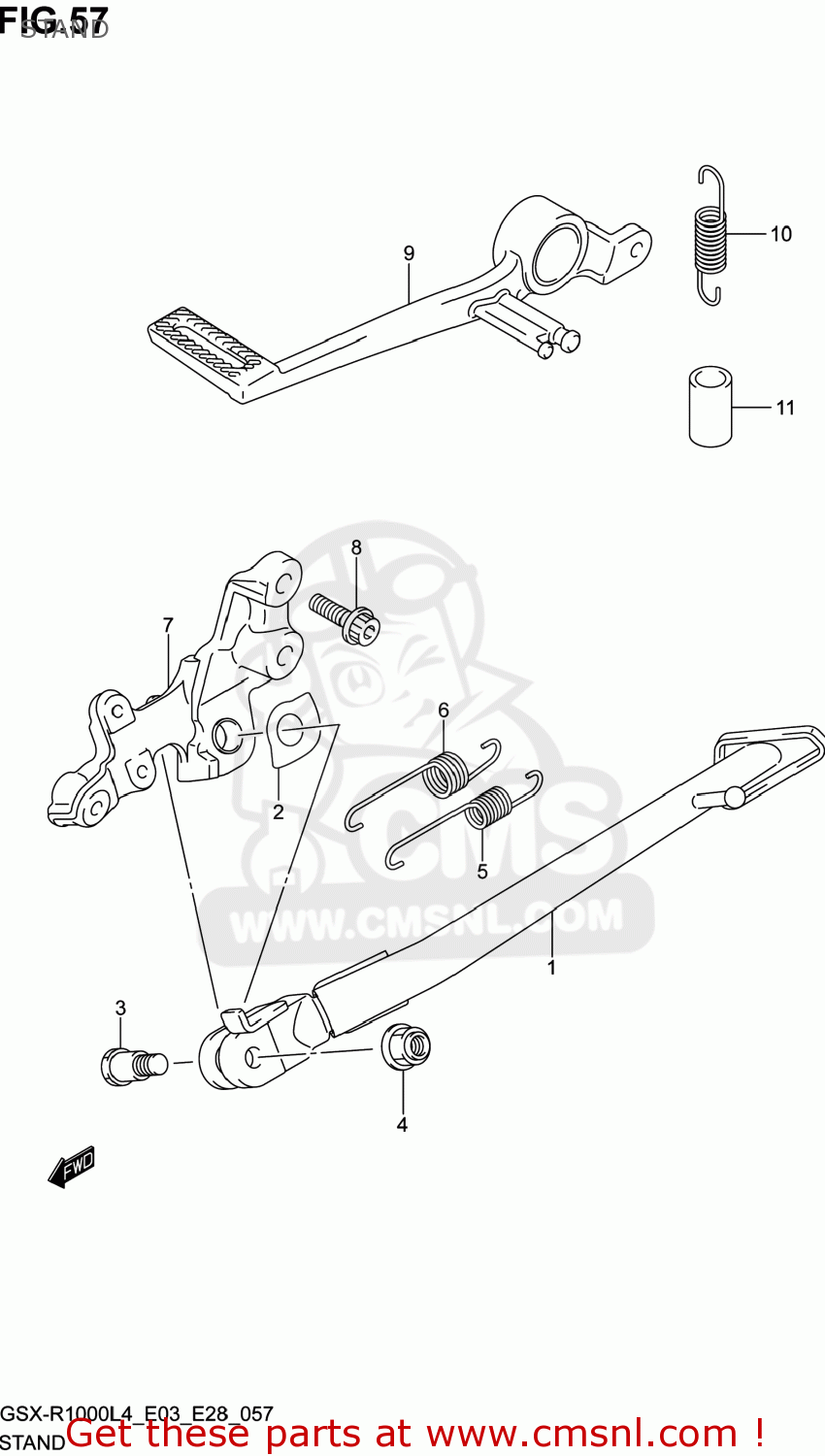

Stand diagram GSXR1000 2014 (L4) USA (E03)
STAND GSXR1000 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231047H10
ref: 1
STAND,PROP
€ 189.50
2
4233547H00
ref: 2
WASHER,PROP STAND
€ 5.50
3
4241147H00
ref: 3
BOLT,PROP STAND
€ 9.00
4
0915910103
ref: 4
NUT
€ 3.00
5
0944314070
ref: 5
SPRING
€ 5.00
6
0944319016
ref: 6
SPRING
€ 5.50
7
4233047H11
ref: 7
BRACKET,PROP STAND
€ 153.00
8
0910610064
ref: 8
BOLT(10X28)
€ 4.50
9
4311047H00
ref: 9
PEDAL,BRAKE
€ 100.50
10
0944311033
ref: 10
SPRING
€ 4.50
11
0935211153600
ref: 11
HOSE(11X15X600)
€ 13.50
