FRAME
GSXR1000 2014 (L4) USA (E03)

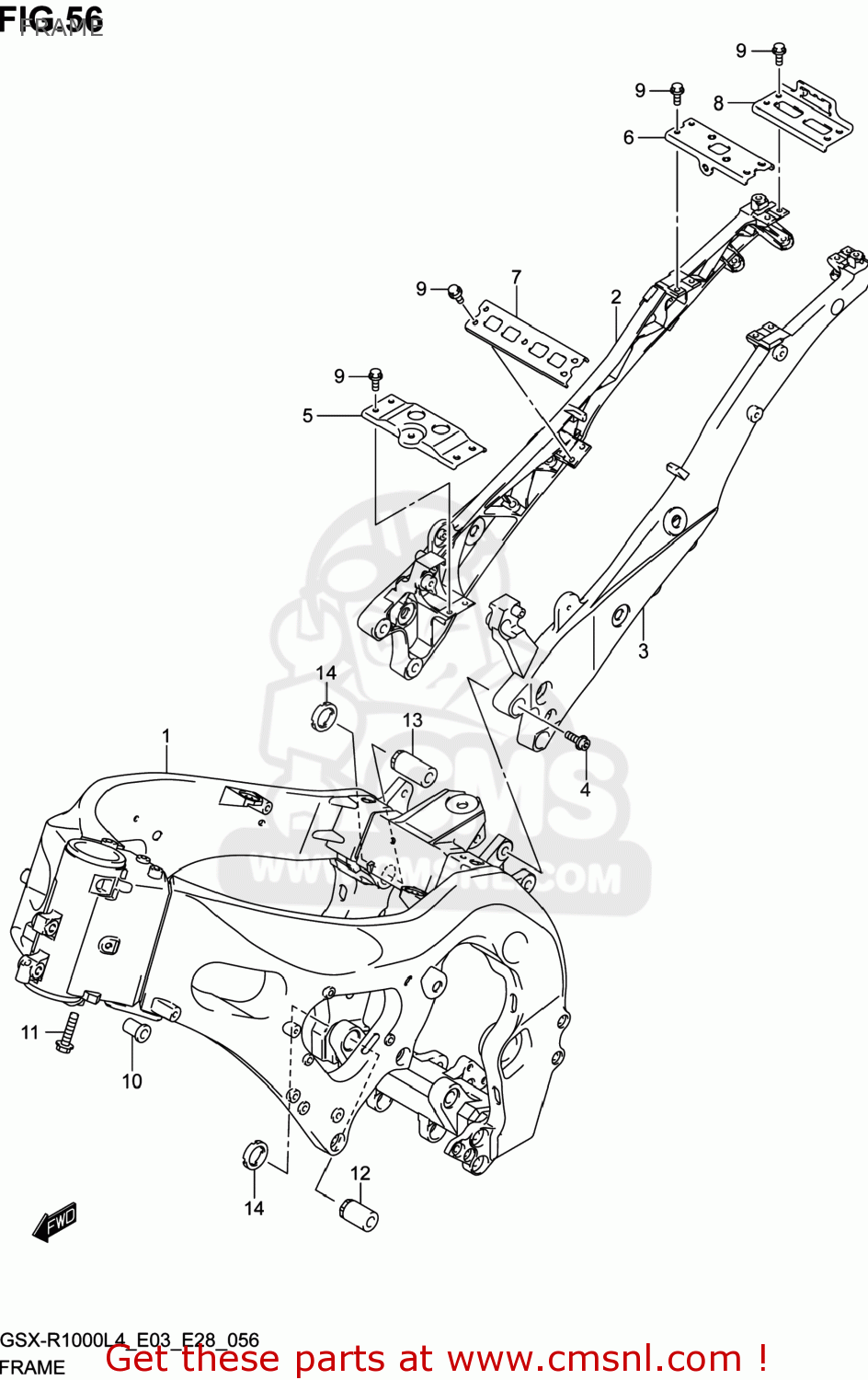

Frame diagram GSXR1000 2014 (L4) USA (E03)
FRAME GSXR1000 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110047H20YAP
ref: 1
FRAME(BLACK)
€ 3,629.00
2
4121147H00
ref: 2
RAIL,SEAT,R
€ 334.00
3
4122147H00
ref: 3
RAIL,SEAT,L
€ 334.00
4
4123318G20
ref: 4
BOLT,SEAT RAIL
€ 7.50
5
4177001H00
ref: 5
BRIDGE,SEAT RAIL FR
€ 25.50
6
4273047H00
ref: 6
BRIDGE,SEAT RAIL UPR
€ 27.50
7
4274137H00
ref: 7
BRIDGE,SEAT RAIL LWR
€ 15.50
8
4275147H00
ref: 8
BRIDGE,SEAT RAIL RR
€ 16.00
9
0910306285
ref: 9
BOLT(6X12)
€ 2.50
10
4191140F01
ref: 10
SPACER,ENGINE MOUNTING
€ 16.50
11
0910308512
ref: 11
BOLT(8X35)
€ 2.00
12
4192147H00
ref: 12
BOLT,CRANK CASE ADJUST
€ 21.00
13
4192147H10
ref: 13
BOLT,CRANK CASE ADJUST UPR
€ 32.00
14
4192247H00
ref: 14
NUT,CRANK CASE ADJUST BOLT
€ 15.50
