FOOTREST
GSXR1000 2014 (L4) USA (E03)

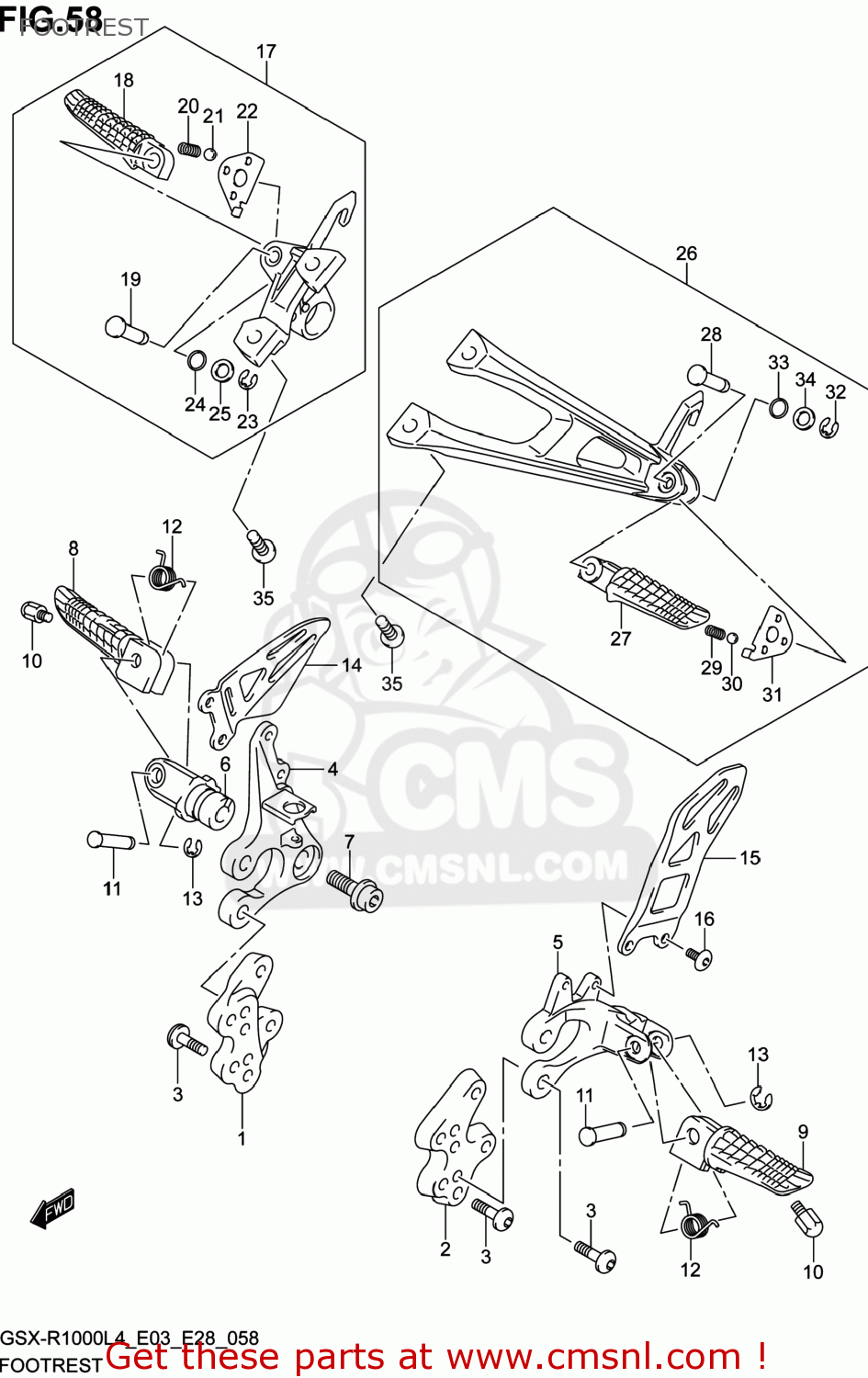

Footrest diagram GSXR1000 2014 (L4) USA (E03)
FOOTREST GSXR1000 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4354147H00
ref: 1
BRACKET,FR FOOTREST NO.1,R
€ 39.00
2
4355147H00
ref: 2
BRACKET,FR FOOTREST NO.1,L
€ 39.00
3
0910608186
ref: 3
BOLT(8X23)
€ 3.50
4
4351147H00
ref: 4
BRACKET,FR FOOTREST NO.2,R
€ 85.00
5
4352147H10
ref: 5
BRACKET,FR FOOTREST NO.2,L
€ 85.00
6
4353141G10
ref: 6
HOLDER,FOOTREST
€ 62.00
7
0910610064
ref: 7
BOLT(10X28)
€ 4.50
8
4351637H00
ref: 8
BAR,FR FOOTREST,R
€ 29.50
9
4352637H00
ref: 9
BAR,FR FOOTREST,L
€ 29.50
10
4357648B02
ref: 10
BOLT,BANK SENSOR
€ 4.00
11
0920808018
ref: 11
PIN
€ 2.50
12
0944814037
ref: 12
SPRING
€ 2.50
13
083321106A
ref: 13
E RING
€ 2.00
14
4357147H00
ref: 14
GUARD,FR FOOTREST,R
€ 39.50
15
4357647H10
ref: 15
GUARD,FR FOOTREST,L
€ 41.50
16
4357735F00
ref: 16
SCREW,FOOTREST GUARD,L
€ 3.50
17
4360047H10
ref: 17
FOOTREST ASSY,PILLION,R
€ 163.00
18
4361137H00
ref: 18
BAR,PILLION FOOTREST,R
€ 23.50
19
0920808014
ref: 19
PIN
€ 4.00
20
0944005005
ref: 20
SPRING
€ 1.50
21
0611107004
ref: 21
BALL
€ 1.50
22
4381647H00
ref: 22
PLATE,PILLION FOOTREST,R
€ 3.50
23
083321106A
ref: 23
E RING
€ 2.00
24
1859268K00
ref: 24
O-RING
€ 2.50
25
1428937H00
ref: 25
WASHER,PILLION FOOTREST
€ 3.00
26
4370047H10
ref: 26
FOOTREST ASSY,PILLION,L
€ 173.50
27
4362137H00
ref: 27
BAR,PILLION FOOTREST,L
€ 23.50
28
0920808014
ref: 28
PIN
€ 4.00
29
0944005005
ref: 29
SPRING
€ 1.50
30
0611107004
ref: 30
BALL
€ 1.50
31
4382647H00
ref: 31
PLATE,PILLION FOOTREST,L
€ 3.50
32
083321106A
ref: 32
E RING
€ 2.00
33
1859268K00
ref: 33
O-RING
€ 2.50
34
1428937H00
ref: 34
WASHER,PILLION FOOTREST
€ 3.00
35
0910608186
ref: 35
BOLT(8X23)
€ 3.50
