FRONT DAMPER
GSXR1000 2014 (L4) USA (E03)

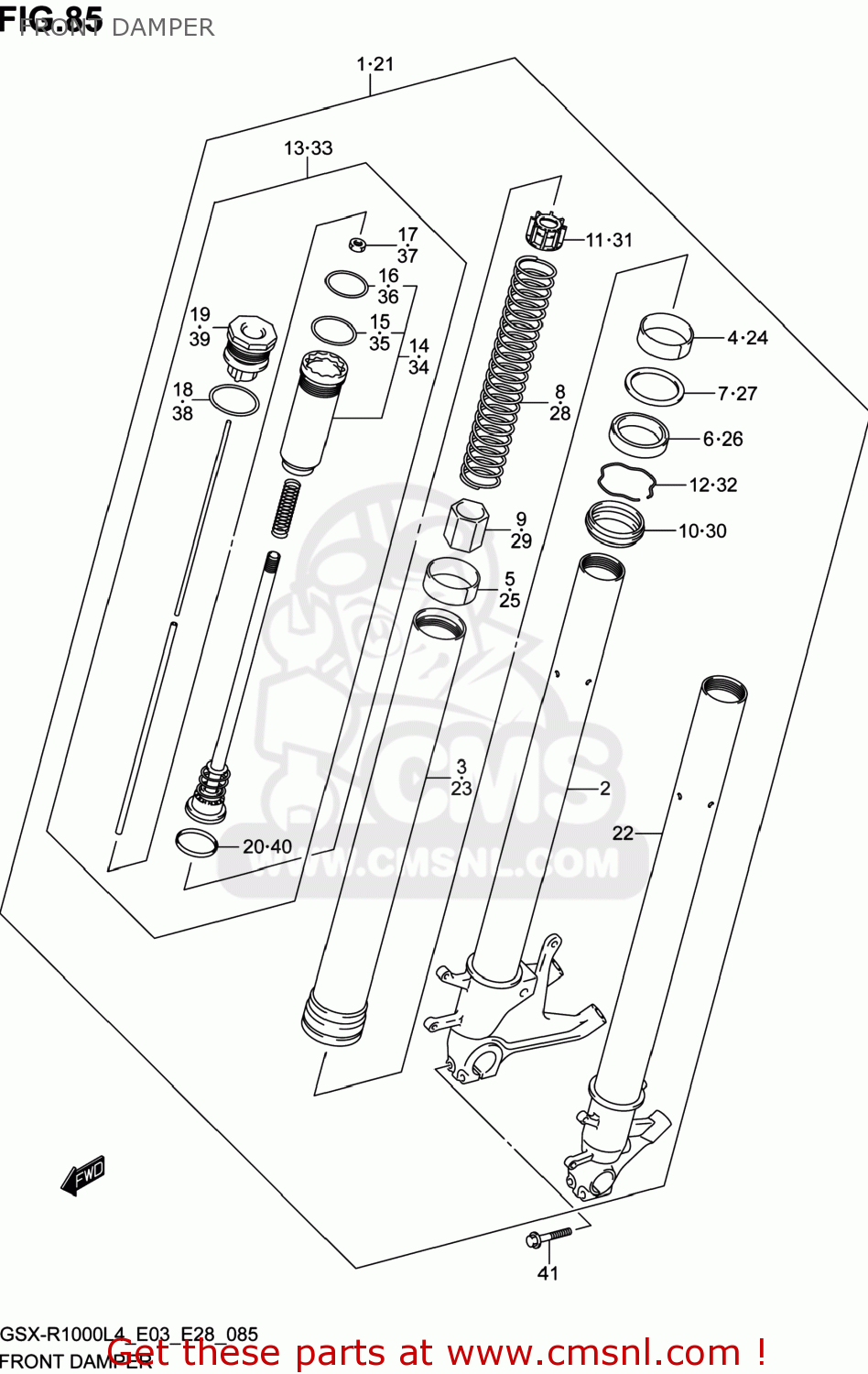

Front damper diagram GSXR1000 2014 (L4) USA (E03)
FRONT DAMPER GSXR1000 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110347H20
ref: 1
DAMPER ASSY,FR FORK,R
€ 2,049.00
2
5111047H20
ref: 2
TUBE,INNER,R
€ 666.00
3
5113147H20
ref: 3
TUBE,OUTER
€ 427.00
4
5115247H00
ref: 4
BUSH,GUIDE
€ 12.00
5
5115247H10
ref: 5
BUSH,SLIDE
€ 12.00
6
5115347H00
ref: 6
SEAL,OIL
€ 24.50
7
5116829G00
ref: 7
SPACER,SEAL
€ 5.00
8
5117147H20
ref: 8
SPRING
€ 74.00
9
5117647H20
ref: 9
COLLAR,SPRING
€ 44.00
10
5117327G00
ref: 10
SEAL,DUST
€ 22.00
11
5117547H00
ref: 11
COLLAR,SPRING
€ 11.00
12
5155638B00
ref: 12
CIRCLIP,FORK OIL SEAL
€ 4.50
13
5211047H20
ref: 13
ROD,PISTON
€ 661.00
14
5117447H20
ref: 14
CASE,ROD GUIDE
€ 93.50
15
5111847H00
ref: 15
RING,PISTON
€ 16.00
16
5118747H10
ref: 16
O RING
€ 5.50
17
5182729G00
ref: 17
NUT
€ 6.50
18
5118747H00
ref: 18
O RING
€ 5.50
19
5118947H20
ref: 19
BOLT
€ 115.50
20
5111847H20
ref: 20
RING,PISTON
€ 5.50
21
5110447H20
ref: 21
DAMPER ASSY,FR FORK,L
€ 2,096.00
22
5112047H20
ref: 22
TUBE,INNER,L
€ 684.00
23
5113147H20
ref: 23
TUBE,OUTER
€ 427.00
24
5115247H00
ref: 24
BUSH,GUIDE
€ 12.00
25
5115247H10
ref: 25
BUSH,SLIDE
€ 12.00
26
5115347H00
ref: 26
SEAL,OIL
€ 24.50
27
5116829G00
ref: 27
SPACER,SEAL
€ 5.00
28
5117147H20
ref: 28
SPRING
€ 74.00
29
5117647H20
ref: 29
COLLAR,SPRING
€ 44.00
30
5117327G00
ref: 30
SEAL,DUST
€ 22.00
31
5117547H00
ref: 31
COLLAR,SPRING
€ 11.00
32
5155638B00
ref: 32
CIRCLIP,FORK OIL SEAL
€ 4.50
33
5211047H20
ref: 33
ROD,PISTON
€ 661.00
34
5117447H20
ref: 34
CASE,ROD GUIDE
€ 93.50
35
5111847H00
ref: 35
RING,PISTON
€ 16.00
36
5118747H10
ref: 36
O RING
€ 5.50
37
5182729G00
ref: 37
NUT
€ 6.50
38
5118747H00
ref: 38
O RING
€ 5.50
39
5118947H20
ref: 39
BOLT
€ 115.50
40
5111847H20
ref: 40
RING,PISTON
€ 5.50
41
5132136F00
ref: 41
BOLT
€ 4.00
