STARTER CLUTCH
GSXR1000 2014 (L4) USA (E03)

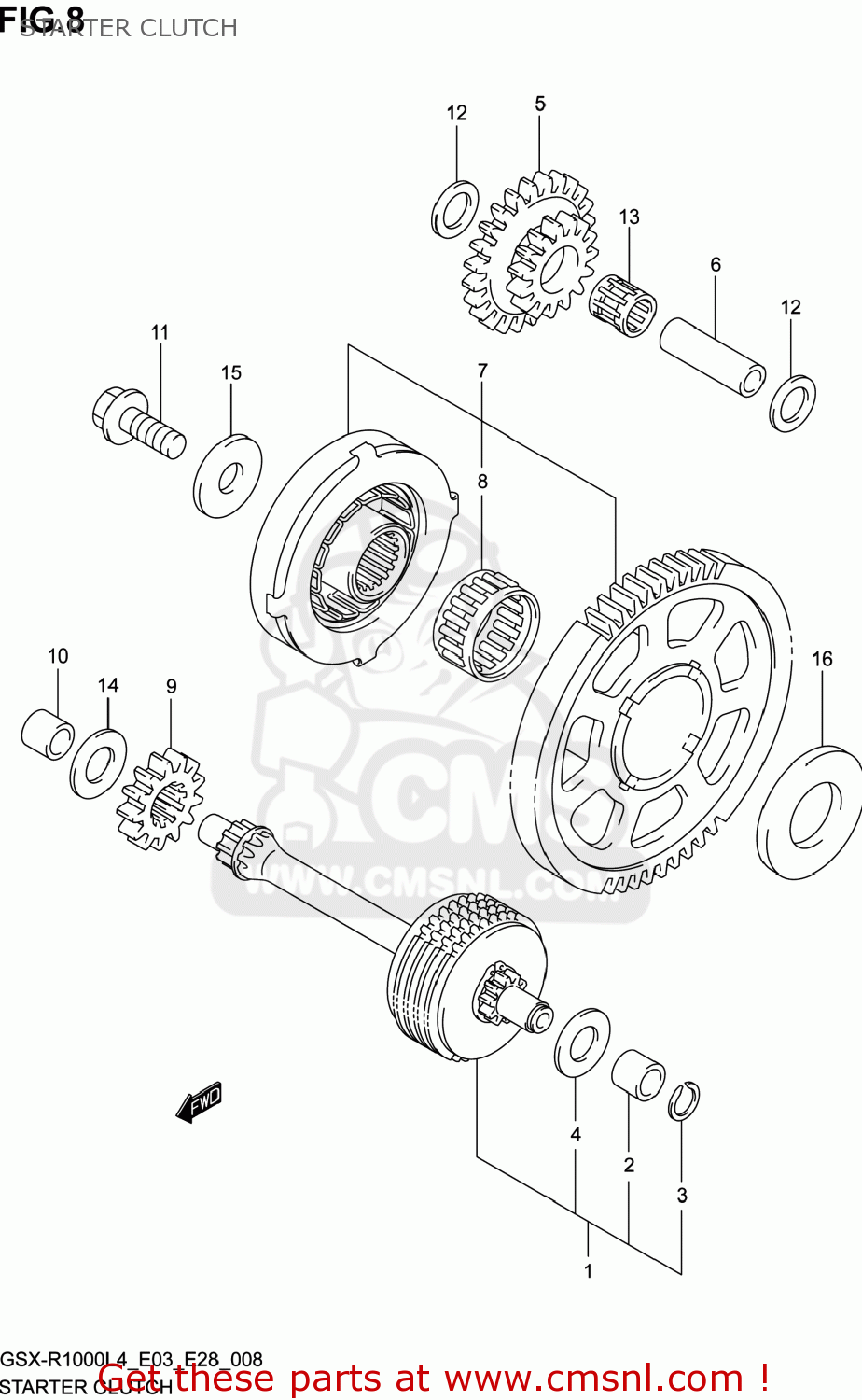

Starter clutch diagram GSXR1000 2014 (L4) USA (E03)
STARTER CLUTCH GSXR1000 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1260047850
ref: 1
LIMITER ASSY,START ID GR NO.1
€ 529.00
2
1261831G00
ref: 2
BUSH,LIMITER GEAR SHAFT
€ 2.00
3
0938009003
ref: 3
CIRCLIP
€ 1.50
4
0821110221
ref: 4
WASHER
€ 2.50
5
1261247H00
ref: 5
GEAR,STARTER IDLE NO.2
€ 58.50
6
1215109204
ref: 6
PIN,PISTON
€ 8.50
7
1260047840
ref: 7
CLUTCH SET,STARTER
€ 279.50
8
0926326035
ref: 8
BEARING(26X31X16)
€ 39.00
9
1261747H00
ref: 9
GEAR,LIMITER DRIVEN
€ 28.00
10
1261831G00
ref: 10
BUSH,LIMITER GEAR SHAFT
€ 2.00
11
0910310189
ref: 11
BOLT(10X23)
€ 4.50
12
0918112167
ref: 12
SHIM(12X20X1)
€ 2.50
13
0926312023
ref: 13
BEARING(12X16X16)
€ 9.00
14
0821110221
ref: 14
WASHER
€ 2.50
15
0821110285
ref: 15
WASHER
€ 2.50
16
0821120403
ref: 16
WASHER
€ 3.50
