OIL PAN - OIL PUMP
GSXR1000 2014 (L4) USA (E03)

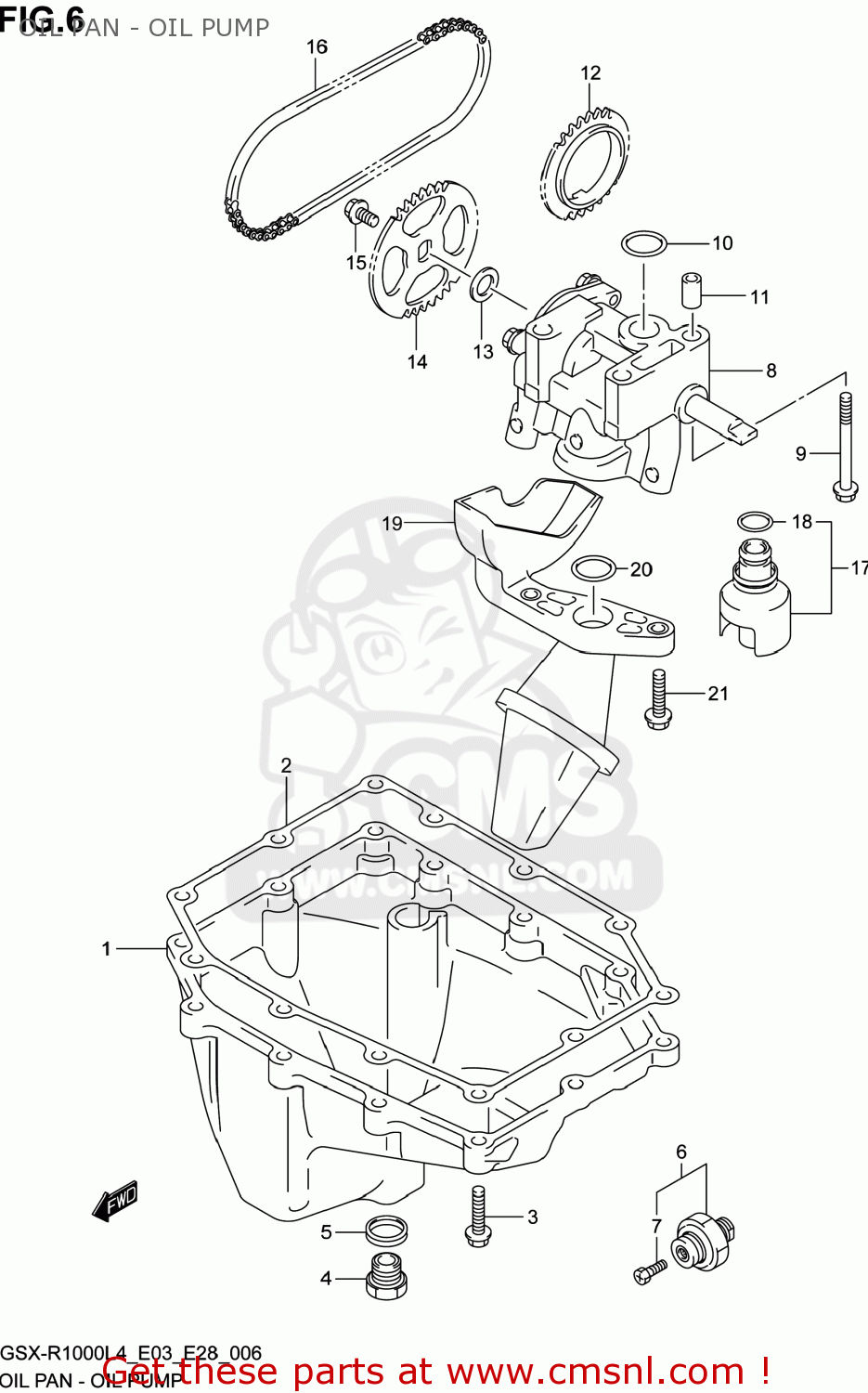

Oil pan - oil pump diagram GSXR1000 2014 (L4) USA (E03)
OIL PAN - OIL PUMP GSXR1000 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1151147H00
ref: 1
PAN,OIL
€ 229.00
2
1148947H00
ref: 2
GASKET,OIL PAN(ASB) (NAS)
€ 16.50
3
015470625A
ref: 3
BOLT
€ 2.50
4
0924714036
ref: 4
PLUG(14X20)
€ 5.50
5
0916814002
ref: 5
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
6
3782033D10
ref: 6
SWITCH ASSY,OIL PRESSURE
€ 29.00
7
3782233D00
ref: 7
BOLT,OIL PRESSURE SWITCH
€ 3.00
8
1640047H10
ref: 8
PUMP ASSY,ENGINE OIL
€ 228.50
9
015470650A
ref: 9
BOLT
€ 2.50
10
0928015007
ref: 10
O RING(D:2.4,ID:15.8)
€ 2.00
11
0421109149
ref: 11
PIN
€ 2.00
12
1632101H00
ref: 12
SPROCKET,OIL PUMP DRIVE
€ 42.50
13
0918110158
ref: 13
SHIM(10X18X0.5)
€ 2.50
14
1633147H00
ref: 14
SPROCKET,OIL PUMP DRIVEN
€ 19.50
15
0910306285
ref: 15
BOLT(6X12)
€ 2.50
16
1631047H00
ref: 16
CHAIN,OIL PUMP DRIVE
€ 20.50
17
1644047H00
ref: 17
VALVE ASSY,OIL RELIEF
€ 59.50
18
0928013004
ref: 18
O RING(D:1.9,ID:13)
€ 2.50
19
1652047H00
ref: 19
STRAINER ASSY,ENGINE OIL
€ 27.50
20
0928019008
ref: 20
O RING(D:2.62,ID:20.3)
€ 5.50
21
015500620A
ref: 21
BOLT
€ 2.50
