STEERING STEM (GSX-R1000L4 E28)
GSXR1000 2014 (L4) USA (E03)

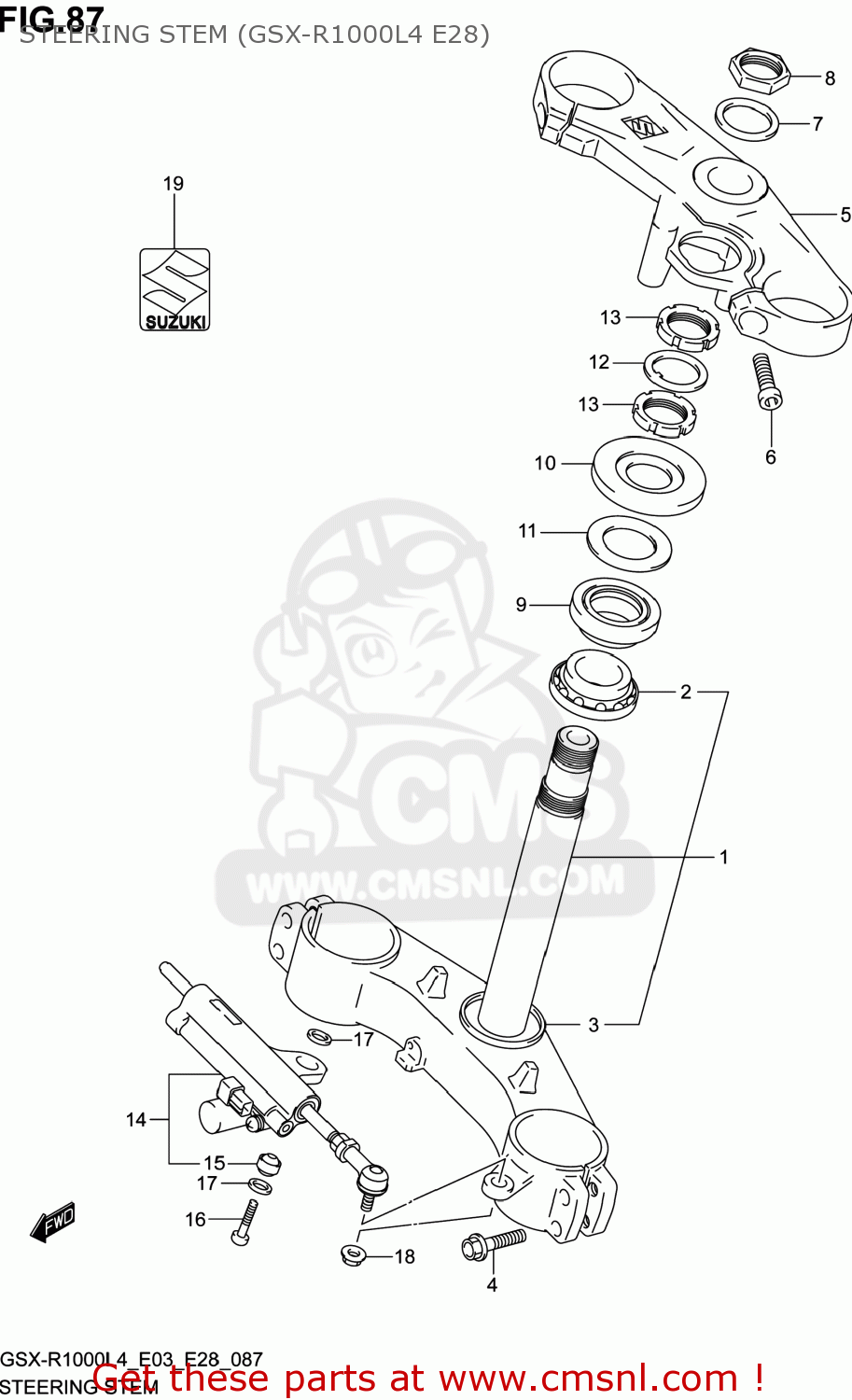

Steering stem (gsx-r1000l4 e28) diagram GSXR1000 2014 (L4) USA (E03)
STEERING STEM (GSX-R1000L4 E28) GSXR1000 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5141047H20
ref: 1
STEM,STEERING
€ 972.00
2
0926730010
ref: 2
BEARING(30X55X17)
€ 46.50
3
5164412C00
ref: 3
SEAL,STEERING LWR
€ 5.50
4
5132827E30
ref: 4
BOLT,HOLDER AXLE(8X40)
€ 2.50
5
5131147H00
ref: 5
HEAD,STEERING STEM
€ 281.50
6
5132127E30
ref: 6
BOLT,HOLDER(8X25)
€ 3.50
7
5135401H00
ref: 7
WASHER,STEM HEAD
€ 6.00
8
5135301H00
ref: 8
NUT,STEM HEAD
€ 28.50
9
0926730010
ref: 9
BEARING(30X55X17)
€ 46.50
10
5164341G00
ref: 10
COVER,STEERING UPR
€ 35.50
11
5164412C00
ref: 11
SEAL,STEERING LWR
€ 5.50
12
5164133E00
ref: 12
WASHER,STEERING STEM
€ 3.00
13
5163133E00
ref: 13
NUT,STEERING STEM
€ 12.00
14
5175021H20
ref: 14
DAMPER ASSY,STEERING
€ 599.00
15
0926908003
ref: 15
BEARING(8X17.5X11)
€ 39.50
16
0910608130
ref: 16
BOLT(8X35)
€ 4.50
17
6433914101
ref: 17
SEAL,PILLOW BALL,DUST
€ 4.50
18
083193108A
ref: 18
NUT
€ 2.50
19
6828147HA0
ref: 19
EMBLEM,"S"
€ 7.00
