Buy Suzuki GSXR Parts Online


HANDLE SWITCH

GSXR1000 2014 (L4) USA (E03)

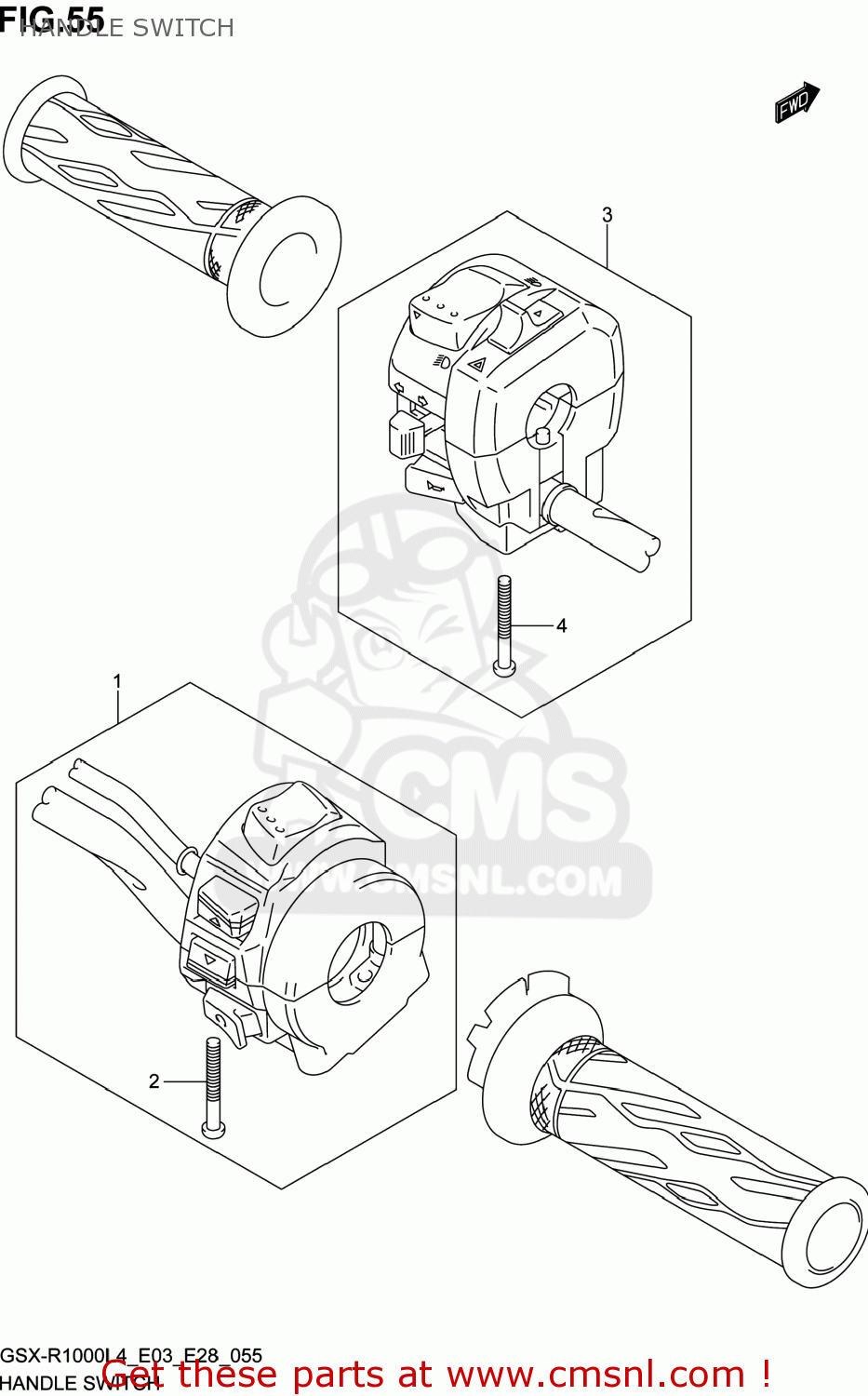

Handle switch diagram GSXR1000 2014 (L4) USA (E03)

HANDLE SWITCH GSXR1000 2014 (L4) USA (E03)
HANDLE SWITCH GSXR1000 2014 (L4) USA (E03)
HANDLE SWITCH GSXR1000 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3720047H30
ref: 1
SWITCH ASSY,HANDLE,R
3720047H30
€ 169.00
2
021120530B
ref: 2
SCREW
021120530B
€ 1.50
3
3740047H10
ref: 3
SWITCH ASSY,HANDLE,L
€ 326.00
4
021120535B
ref: 4
SCREW
021120535B
€ 1.50
