FRONT WHEEL
GSXR1000 2014 (L4) USA (E03)

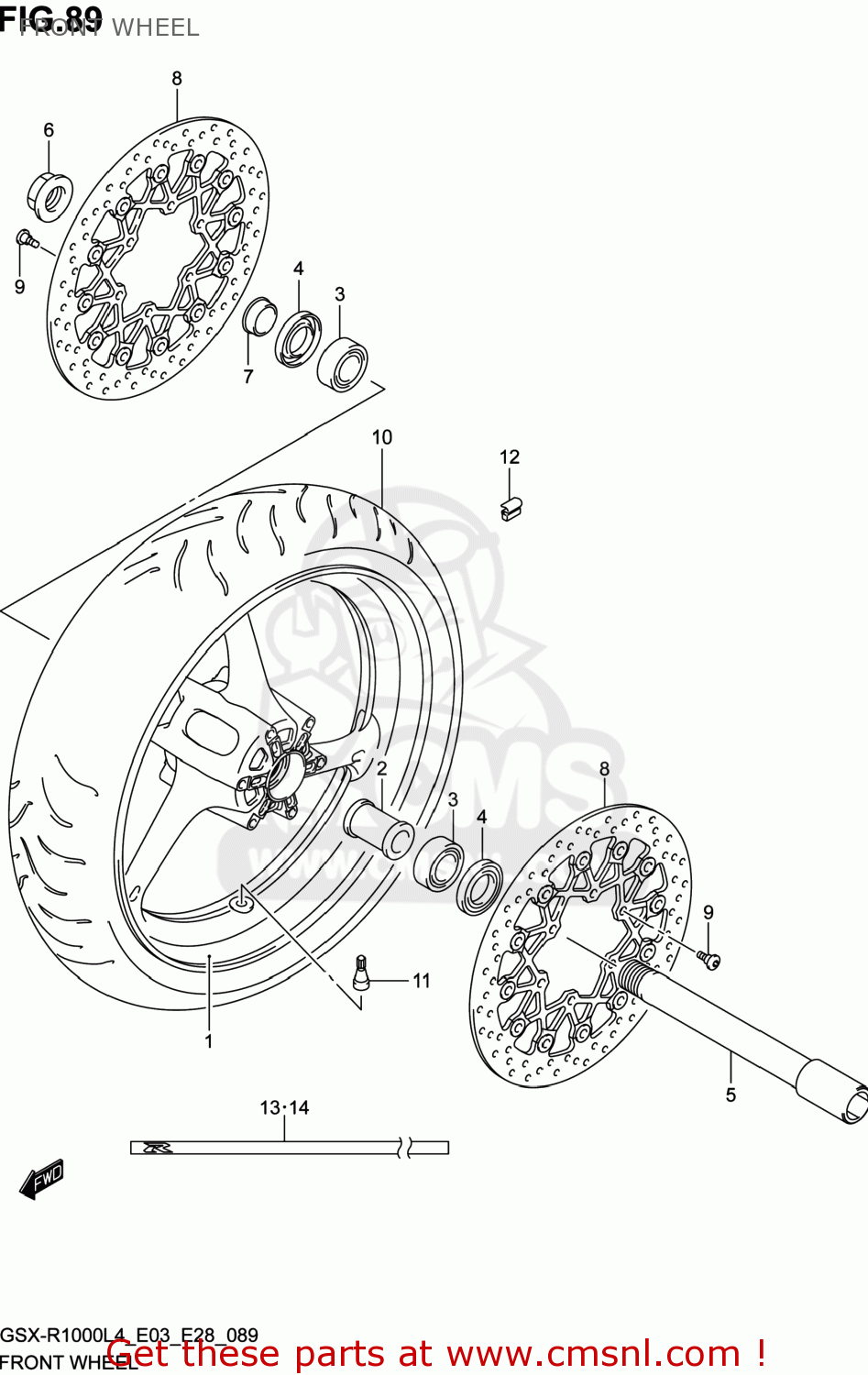

Front wheel diagram GSXR1000 2014 (L4) USA (E03)
FRONT WHEEL GSXR1000 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411137H00019
ref: 1
WHEEL,FR(17M/CXMT3.50)
€ 601.00
1
5411137H00019
ref: 1
WHEEL,FR(17M/CXMT3.50)
€ 601.00
2
5473135F10
ref: 2
SPACER,FR HUB BEARING
€ 19.50
3
0926225167
ref: 3
BEARING(25X52X15)
€ 27.50
4
0928532004
ref: 4
SEAL,OIL(32X52X7)
€ 8.00
5
5471147H00
ref: 5
AXLE,FR
€ 78.50
6
5471247H00
ref: 6
NUT,FR AXLE
€ 22.00
7
5475141G00
ref: 7
SPACER,FRONT A
€ 13.00
8
5921037H20
ref: 8
DISC,FR BRAKE
€ 389.50
9
0910606124
ref: 9
BOLT(6X21)
€ 3.50
10
5511047H10
ref: 10
TIRE,FR
€ 213.50
10
5511047H10
ref: 10
TIRE,FR
€ 213.50
11
4313024A00
ref: 11
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
12-1
5541122H00
ref: 12-1
BALANCER,WHEEL(10G)
€ 4.50
12-2
5541222H00
ref: 12-2
BALANCER,WHEEL(20G)
€ 5.50
12-3
5541322H00
ref: 12-3
BALANCER,WHEEL(30G)
€ 6.00
13-1
6825147H00AR9
ref: 13-1
TAPE,WHEEL FRONT,R
€ 66.00
14-1
6825247H00AR9
ref: 14-1
TAPE,WHEEL FRONT,L
€ 66.00
