SIGNAL GENERATOR
GSXR1000 2014 (L4) USA (E03)

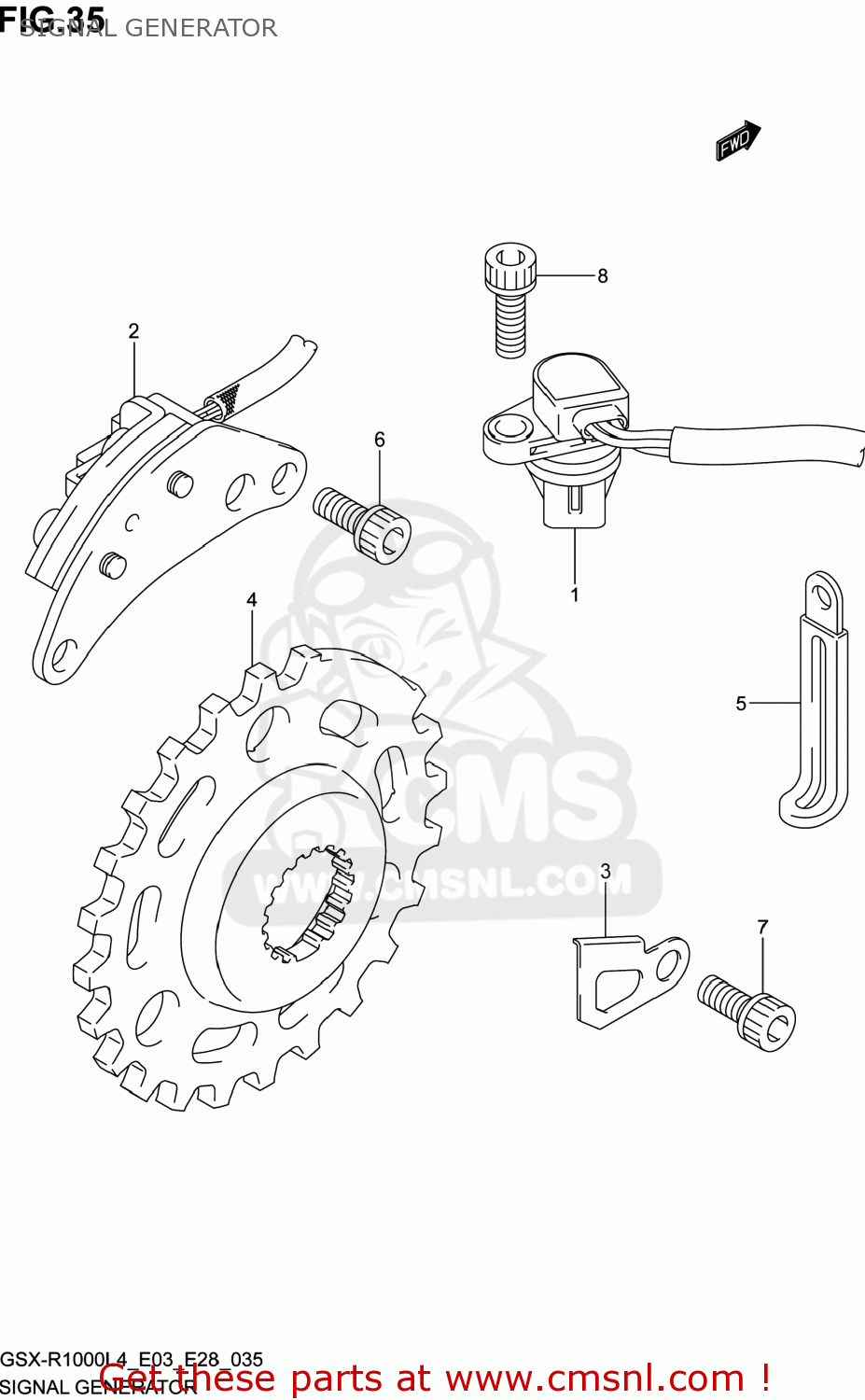

Signal generator diagram GSXR1000 2014 (L4) USA (E03)
SIGNAL GENERATOR GSXR1000 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3322001H00
ref: 1
SENSOR ASSY,CAM POSITION
€ 108.00
2
3311047H00
ref: 2
STARTER,SIGNAL GENERATOR
€ 289.50
3
3311547H00
ref: 3
CLAMP,SIGNAL GENERATORERATOR
€ 4.50
4
3312047H00
ref: 4
ROTOR,SIGNAL GENERATOR
€ 82.00
5
0940406429
ref: 5
CLAMP(L:45)
€ 2.50
6
071300510A
ref: 6
BOLT
€ 1.50
7
071300510A
ref: 7
BOLT
€ 1.50
8
071300616A
ref: 8
07130-0616B
BOLT
€ 3.00
