FUEL TANK (GSX-R1000L4 E03)
GSXR1000 2014 (L4) USA (E03)

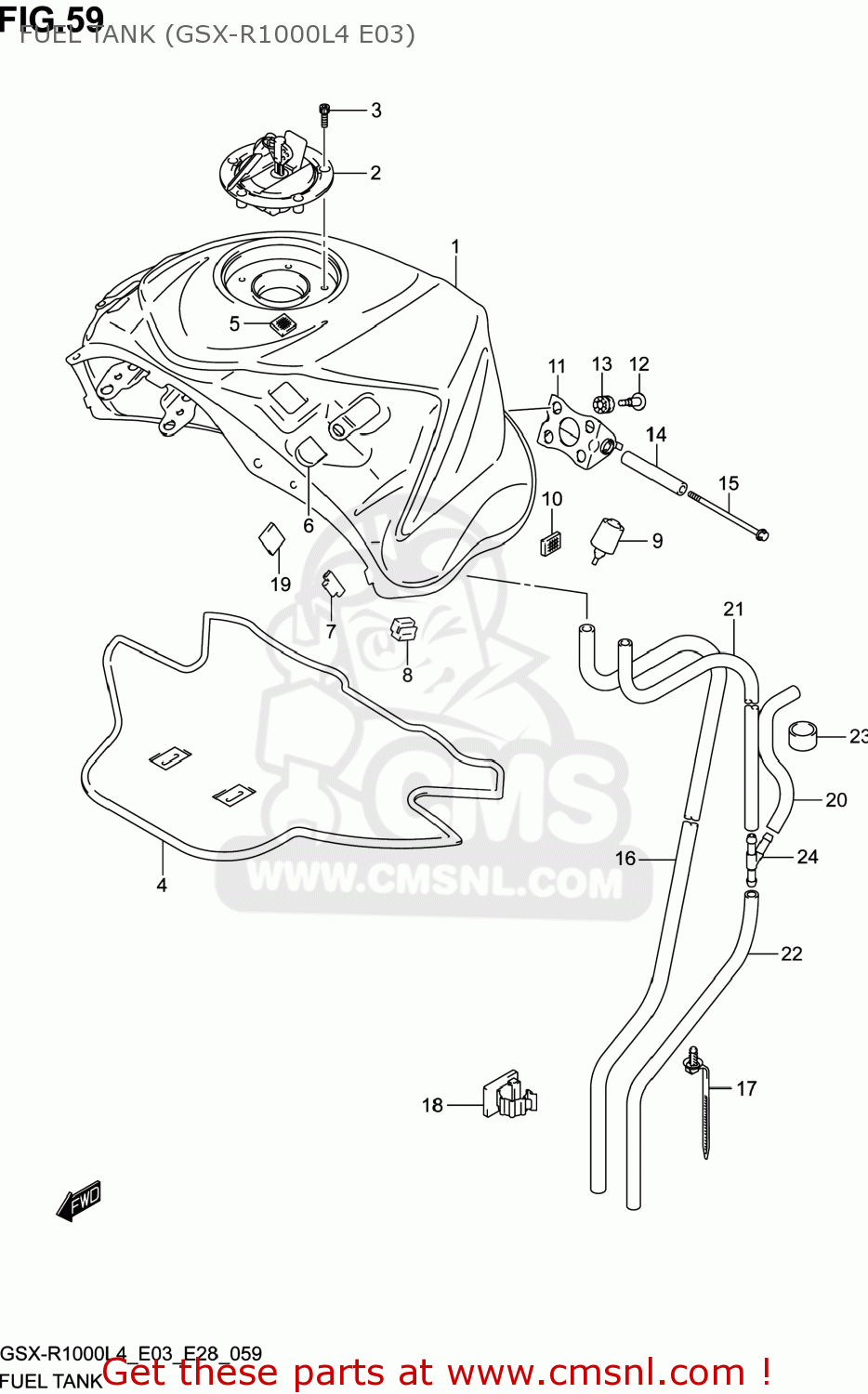

Fuel tank (gsx-r1000l4 e03) diagram GSXR1000 2014 (L4) USA (E03)
FUEL TANK (GSX-R1000L4 E03) GSXR1000 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410047H01YSF
ref: 1-1
TANK ASSY,FUEL(BLUE)
€ 768.00
1-2
4410047H01YVB
ref: 1-2
TANK ASSY,FUEL(BLACK)
€ 757.00
2
4420016850
ref: 2
CAP SET,FUEL TANK
€ 155.50
3
0910605017
ref: 3
BOLT(5X20)
€ 3.00
4
4419147H00
ref: 4
SHIELD,FUEL TANK HEAT
€ 61.50
5
4457244G00
ref: 5
FASTENER
€ 5.00
6
0932918001
ref: 6
CUSHION
€ 2.50
7
4427621H00
ref: 7
CUSHION,FUEL TANK COVER
€ 6.00
8
4454141G00
ref: 8
CUSHION,FUEL TANK SIDE
€ 5.00
9
4454241G00
ref: 9
CUSHION,FUEL TANK RR
€ 7.00
10
4457213G00
ref: 10
FASTENER
€ 6.00
11
4453041G00
ref: 11
BRACKET,FUEL TANK NO.1
€ 21.50
12
0913906191
ref: 12
SCREW(6X22)
€ 4.50
13
0932008071
ref: 13
CUSHION
€ 3.50
14
4456118G00
ref: 14
SPACER,FUEL TANK RR
€ 14.00
15
0910606119
ref: 15
BOLT(6X110)
€ 5.50
16
4442347H00
ref: 16
HOSE,FUEL TANK WATER DRAIN
€ 19.50
17
0940717403
ref: 17
CLAMP(L:154)
€ 5.50
18
0940314311
ref: 18
CLAMP
€ 4.00
19
6154494500
ref: 19
PAD
€ 2.00
20
4442415H10
ref: 20
HOSE,TANK BREATHER NO.2
€ 9.50
21
4442447H00
ref: 21
HOSE,FUEL TANK BREATHER NO.1
€ 10.50
22
4442447H10
ref: 22
HOSE,FUEL TANK BREATHER NO.2
€ 7.00
23
0935212163600
ref: 23
HOSE(12X16X600)
€ 24.50
24
0936706007
ref: 24
3 WAY
€ 2.50
