RADIATOR HOSE
GSXR1000 2014 (L4) USA (E03)

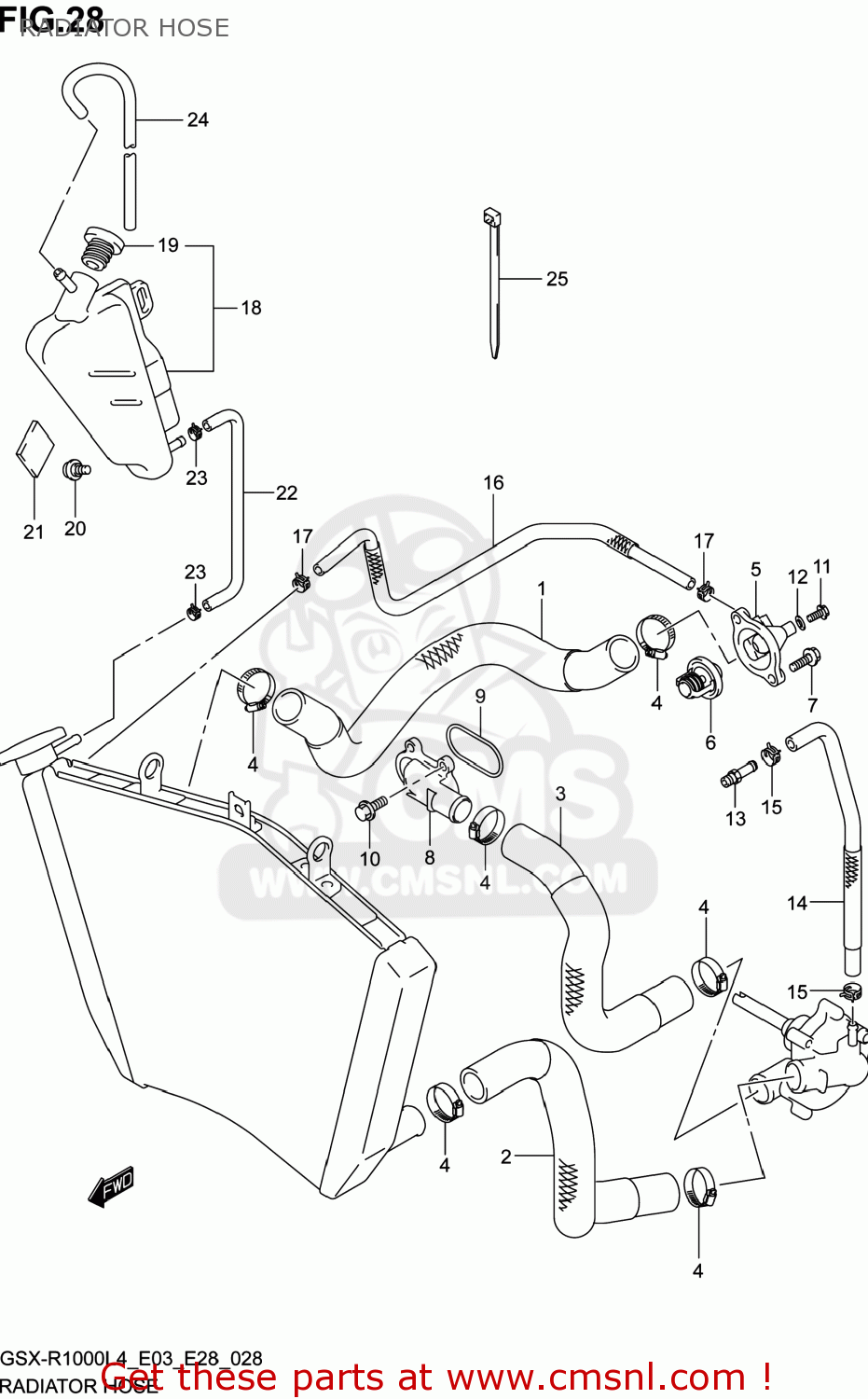

Radiator hose diagram GSXR1000 2014 (L4) USA (E03)
RADIATOR HOSE GSXR1000 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1785147H10
ref: 1
HOSE,RADIATOR INLET
€ 42.00
2
1785247H10
ref: 2
HOSE,RADIATOR OUTLET
€ 37.00
3
1785347H10
ref: 3
HOSE,CYLINDER INLET
€ 38.00
4
0940235501
ref: 4
CLAMP
€ 7.00
5
1766135F00
ref: 5
COVER,THERMOSTAT
€ 33.00
6
1767047H00
ref: 6
THERMOSTAT,WATER
€ 30.50
7
015470620A
ref: 7
BOLT
€ 2.50
8
1786147H00
ref: 8
CONNECTOR,CYLINDER WATER INLET
€ 44.50
9
1786347H00
ref: 9
O RING,CYL WATER CONNECTOR
€ 6.50
10
015470620A
ref: 10
BOLT
€ 2.50
11
1756850F00
ref: 11
UNION BOLT,AIR VENT
€ 3.50
12
0916806026
ref: 12
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
13
0936209011
ref: 13
BOLT UNION
€ 6.00
14
1785447H10
ref: 14
HOSE,WATER BYPASS
€ 22.00
15
0940112409
ref: 15
CLAMP
€ 3.00
16
1785547H10
ref: 16
HOSE,WATER AIR BLEED
€ 21.00
17
0940110409
ref: 17
CLIP
€ 2.50
18
1791047H00
ref: 18
TANK ASSY,RESERVOIR
€ 65.50
19
1793102FA0
ref: 19
CAP,RESERVOIR TANK
€ 4.50
20
0911106085
ref: 20
BOLT(6X12)
€ 4.50
21
6319125C00
ref: 21
CUSHION
€ 2.50
22
1798147H00
ref: 22
HOSE,RESERVOIR TANK INLET
€ 11.50
23
0940108411
ref: 23
CLIP
€ 3.00
24
1798247H00
ref: 24
HOSE,RESERVOIR TANK OVFL
€ 15.00
25
0940710404
ref: 25
CLAMP(L:100)
€ 4.00
