ALTERNATOR

GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

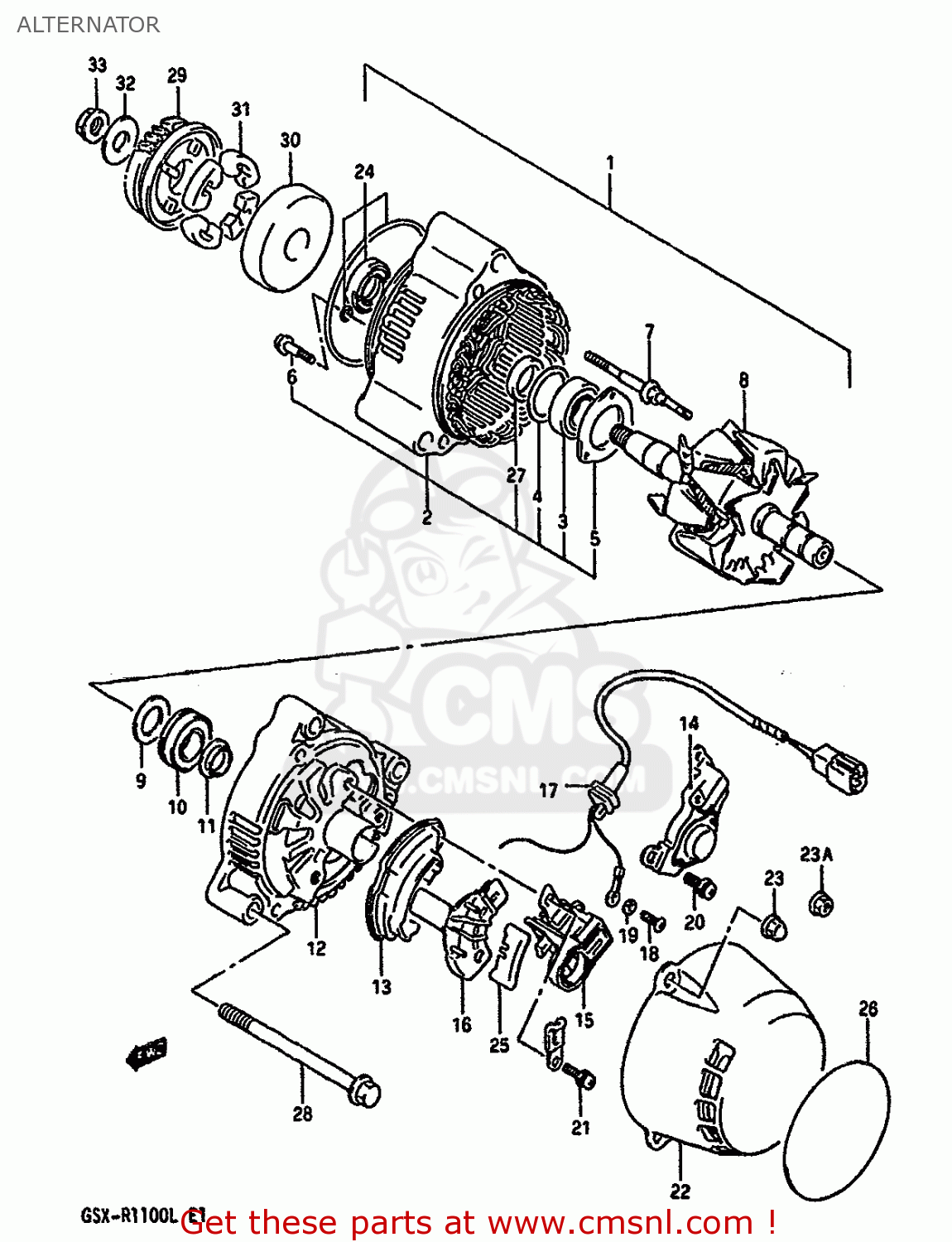

Alternator diagram GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

ALTERNATOR GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
ALTERNATOR GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
ALTERNATOR GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
3140048B03
ref: 1
GENERATOR ASSEMBLY
3140048B03
€ 1,063.50
2
3158048B00
ref: 2
FRAME,DRIVE END
3158048B00
€ 248.50
3
3161206B00
ref: 3
BEARING
3161206B00
€ 36.50
4
3161348B00
ref: 4
COVER,BEARING
3161348B00
€ 5.50
5
3158548B00
ref: 5
RETAINER
3158548B00
€ 9.00
6
3158648B00
ref: 6
SCREW,BEARING RETAINER
3158648B00
€ 3.50
7-1
3158785250
ref: 7-1
YELLOW
STUD BOLT
€ 9.00
7-2
3158719C00
ref: 7-2
BLACK
STUD BOLT
€ 9.00
8
3171048B03
ref: 8
ROTOR ASSEMBLY
3171048B03
€ 277.50
9
3161327A00
ref: 9
COVER (2)
€ 3.50
10
3161248B00
ref: 10
BEARING
3161248B00
€ 42.50
11
3161327A10
ref: 11
COVER(2)
3161327A10
€ 5.50
12
3161148B00
ref: 12
FRAME,END
€ 83.00
13
3162127A00
ref: 13
HOLDER,RECTIFIER
3162127A00
€ 225.50
14
3250027A00
ref: 14
REGULATOR
3250027A00
€ 321.00
15
3165648B00
ref: 15
HOLDER,BRUSH
3165648B00
€ 55.50
16
3168727A00
ref: 16
COVER,RECTIFIER
€ 4.50
17
3148048B00
ref: 17
WIRE,LEAD
3148048B00
€ 22.00
18-1
0211204086
ref: 18-1
MODEL K
SCREW
€ 2.00
18-2
3151685250
ref: 18-2
MODEL L
SCREW
€ 2.00
19
0832121046
ref: 19
MODEL K
LOCK WASHER
0832121046
€ 2.00
20
3168827A00
ref: 20
SCREW
3168827A00
€ 2.50
21
3168806B00
ref: 21
SCREW
€ 2.50
22
3161448B00
ref: 22
COVER
3161448B00
€ 67.50
23
3169248B00
ref: 23
NUT
€ 1.50
23A
0831616055
ref: 23A
NUT ,5MM
€ 2.00
24
3178048B00
ref: 24
SEAL SET,OIL
3178048B00
€ 47.50
25
3151427A00
ref: 25
BUSH
3151427A00
€ 4.50
26
3161517C00
ref: 26
PROTECTOR,ALTERNATOR
€ 10.00
27
3177606B00
ref: 27
SPACER
3177606B00
€ 22.00
28-1
0151708905
ref: 28-1
MODEL K
BOLT (8X90)
€ 3.50
28-2
0151708908
ref: 28-2
MODEL L
BOLT 8X90
€ 3.50
29
2273006B03
ref: 29
-22730-06B02
GEAR,GENERATOR DRIVEN
€ 113.50
30-1
2273327A03
ref: 30-1
MODEL K
HOUSING,GENERATOR GEAR
2273327A03
€ 95.00
30-2
2273327A04
ref: 30-2
MODEL L
HOUSING,GENERATOR GEAR
€ 95.00
31
2123106B00
ref: 31
DAMPER,GENERATOR DRIVEN
2123106B00
€ 5.50
32
0821110283
ref: 32
WASHER
0821110283
€ 3.00
33
0831626106
ref: 33
NUT
€ 3.50
