STEERING DAMPER

GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

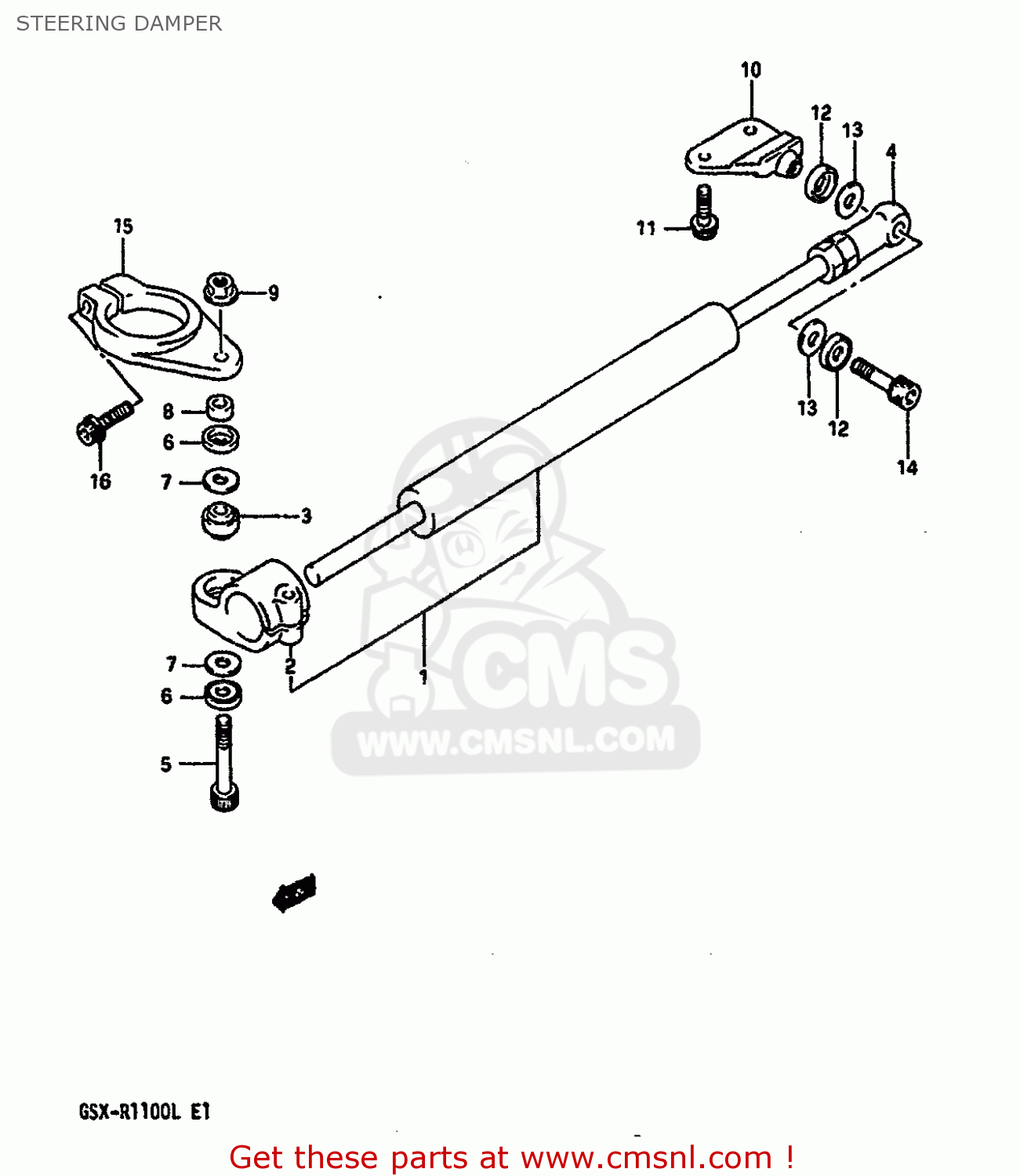

Steering damper diagram GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1-1

5175040C00
ref: 1-1
MODEL K

DAMPER ASSEMBLY,STEERING

€ 1,266.00

1-2

5175040C20
ref: 1-2
MODEL L

DAMPER ASSEMBLY,STEERING

€ 1,266.00

1-3

5175040C10
ref: 1-3
MODEL L,E24

DAMPER ASSEMBLY,STEERING

€ 1,266.00

5179140C10
ref: 2

BRACKET,STEERING DAMPER

€ 149.50

3-1

0926908002
ref: 3-1
MODEL K

BEARING(8X18X11)

€ 39.50

3-2

0926908003
ref: 3-2
MODEL L

BEARING(8X17.5X11)

€ 39.50

5176040C01
ref: 4

PILLOW BALL,ROD END

€ 111.50

0711008407
ref: 5

BOLT

€ 3.50

6433940410
ref: 6

6433940410

0822108126
ref: 7

SHIM

€ 3.00

0918008130
ref: 8

SPACER (8.4X14X6)

€ 3.50

0831931087
ref: 9

NUT

€ 2.50

4168440C00
ref: 10

BOSS,STEERING DAMPER

€ 55.50

0712006208
ref: 11

BOLT

€ 3.00

6433940410
ref: 12

6433940410

0822108126
ref: 13

SHIM

€ 3.00

0711008357
ref: 14

BOLT, FRONT RH

€ 4.50

15-1

5178140C10
ref: 15-1
MODEL K

BRACKET,STEERING DAMPER FORK

€ 77.50

15-2

5178140C40
ref: 15-2
MODEL L

BRACKET,FORK

€ 117.00

0712006258
ref: 16

BOLT,BRACKET

€ 3.00
