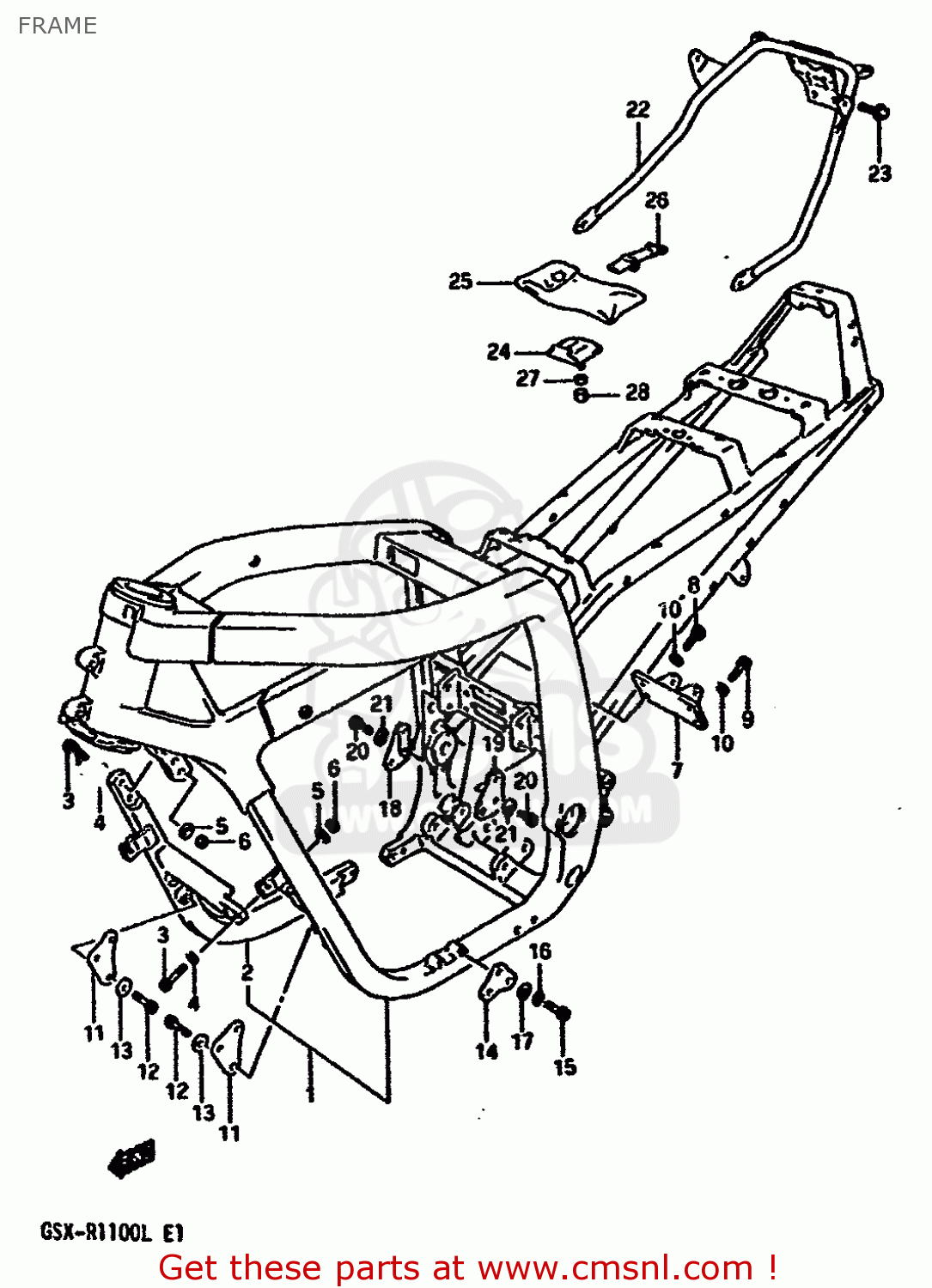

FRAME

ref

part #

description

quantity

1-1

4110040810
ref: 1-1
MODEL K

FRAME

€ 2,186.00

1-2

4110040840
ref: 1-2
MODEL L

FRAME

€ 2,335.50

1-3

4110040820
ref: 1-3
MODEL K E18

FRAME SET

€ 2,186.00

1-4

4110040860
ref: 1-4
MODEL L E18

FRAME SET

€ 2,335.50

2-1

4114040C00
ref: 2-1
MODEL K

TUBE COMP,FRAME DOWN,RIGHT

€ 310.00

2-2

4114040C30
ref: 2-2
MODEL L

TUBE COMP,FRAME DOWN,RIGHT

€ 0.00

3

0711010357
ref: 3

BOLT, LH

€ 3.50

4

0916010013
ref: 4

WASHER (10.1X21X2.3)

€ 2.00

5

0916410005
ref: 5

WASHER

€ 6.50

6

0915910027
ref: 6

NUT

€ 3.00

7

4138440C00
ref: 7
MODEL K

BRACKET,REAR CUSHION UNIT

€ 130.50

8

0910610017
ref: 8
MODEL K

BOLT 10X27

€ 2.50

9

0711010357
ref: 9
MODEL K

BOLT, LH

€ 3.50

10

0916410005
ref: 10
MODEL K

WASHER

€ 6.50

11

4191140C00
ref: 11

PLATE,ENGINE MOUNTING

€ 25.00

12

0711008257
ref: 12

BOLT, FRONT LH

€ 3.50

12A

0832131088
ref: 12A

WASHER,LOCK,8.

€ 2.00

13

0916008010
ref: 13

WASHER (8.2X20X1.6)

€ 1.50

14

4192117C02
ref: 14

PLATE,ENGINE MOUNT NO.2

€ 17.00

15

0711008257
ref: 15

BOLT, FRONT LH

€ 3.50

16

0832131087
ref: 16

WASHER,LOCK

€ 2.00

17

0916008010
ref: 17

WASHER (8.2X20X1.6)

€ 1.50

18

4194040C01
ref: 18

PLATE,ENGINE MOUNT NO.3,R

€ 15.50

19

4195040C01
ref: 19

PLATE,ENGINE MOUNTING NO

€ 14.00

20

0910608005
ref: 20

BOLT(8X22)

€ 2.00

20A

0832131088
ref: 20A

WASHER,LOCK,8.

€ 2.00

21

0916008010
ref: 21

WASHER (8.2X20X1.6)

€ 1.50

22-1

4398017C00
ref: 22-1
MODEL K

GRIP COMP,REAR

€ 88.50

22-2

4398040C30
ref: 22-2
MODEL L

GRIP,REAR

€ 85.50

22-3

4398017C10
ref: 22-3
MODEL K E39

GRIP

€ 88.50

22-4

4398040C40
ref: 22-4
MODEL L E39

GRIP COMP,REAR

€ 85.50

23

0151708207
ref: 23

BOLT

€ 3.00

24

4155049200
ref: 24

HOLDER,TOOL

€ 10.00

25-1

0980020026
ref: 25-1
MODEL K

TOOL ASSY

€ 59.00

25-2

0980020032
ref: 25-2
MODEL L

TOOL SET

€ 59.00

26

0946200072
ref: 26

BAND

€ 3.50

27

0916006006
ref: 27

WASHER

€ 2.00

28

0831921068
ref: 28

NUT 6MM

€ 2.00
