CRANKCASE COVER

GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

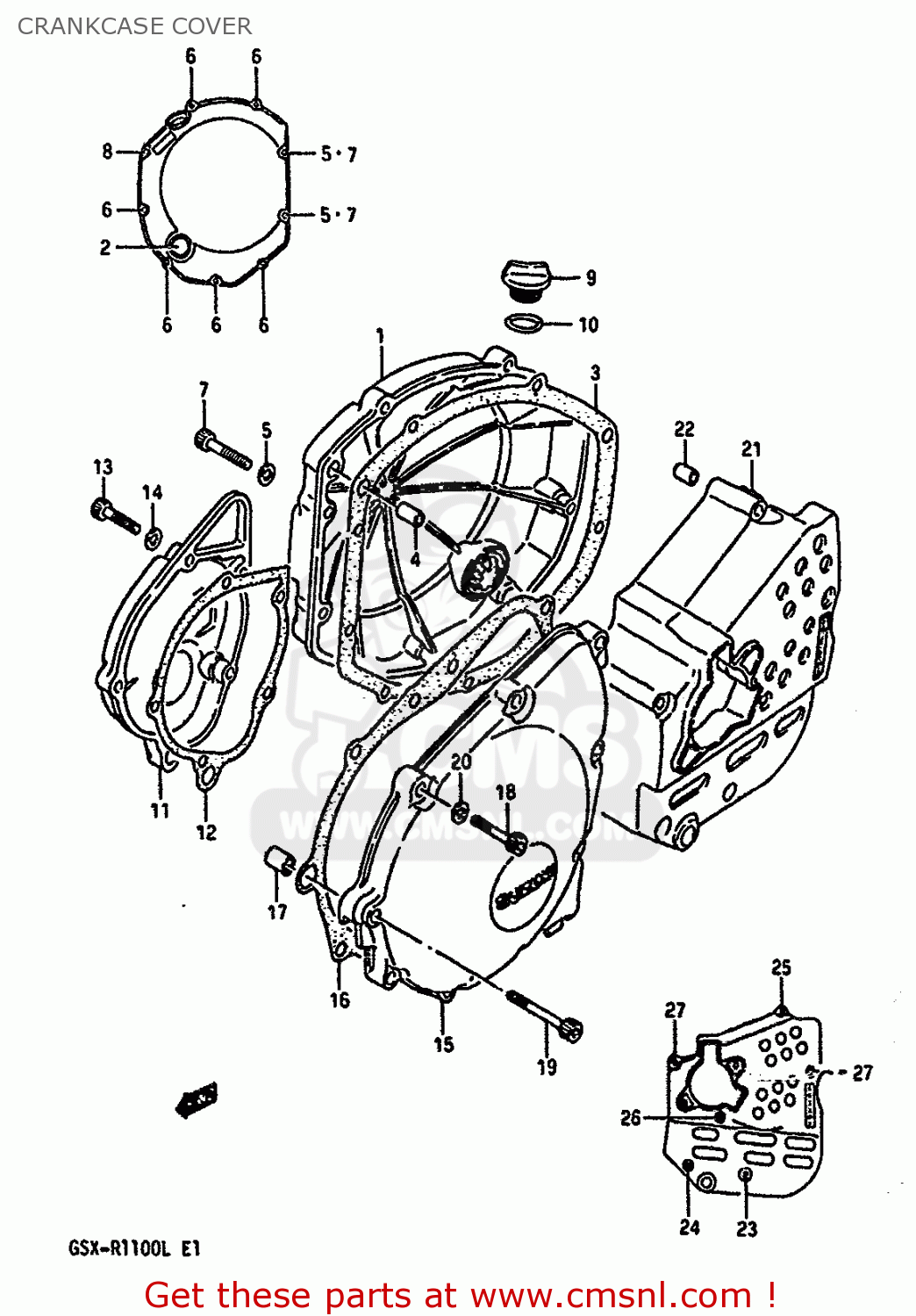

Crankcase cover diagram GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

CRANKCASE COVER GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
CRANKCASE COVER GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
CRANKCASE COVER GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
1134040C00
ref: 1
COVER,CLUTCH
1134040C00
€ 180.00
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3-1
1148227A01
ref: 3-1
GASKET,CLUTCH COVER (MCA)
1148227A01
€ 18.00
3-2
1148227A01H17
ref: 3-2
E17
GASKET,CLUTCH COVER (NA) (NAS)
€ 18.00
4
0421109189
ref: 4
PIN
0421109189
€ 2.00
5
0916806024
ref: 5
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
6
0711006255
ref: 6
BOLT
0711006255
€ 3.00
7
0711006305
ref: 7
BOLT
0711006305
€ 3.00
8
0711006355
ref: 8
BOLT
€ 3.50
9
0925920012
ref: 9
PLUG
0925920012
€ 6.50
10
0928017003
ref: 10
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
11
1138127A01
ref: 11
COVER,SIGNAL GENERATOR
1138127A01
€ 94.50
12-1
1149127A00
ref: 12-1
GASKET,SIGNAL GENERATOR COVER (NAS)
1149127A00
€ 8.00
12-2
1149127A00H17
ref: 12-2
E17 (NA)
GASKET,SIGNAL GENERATOR COVER
€ 8.00
13
0910606059
ref: 13
BOLT
0910606059
€ 3.00
14
0916806024
ref: 14
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
15
1135140C00
ref: 15
COVER,STARTER GEAR
1135140C00
€ 174.00
16-1
1148348B00
ref: 16-1
GASKET,STARTER GEAR COVER (NAS)
€ 13.00
16-2
1148348B00H17
ref: 16-2
E17 (NA)
GASKET,STARTER GEAR COVER
€ 13.00
17
0920611005
ref: 17
PIN (11X20)(SUS)
€ 6.50
18
0711006255
ref: 18
BOLT
0711006255
€ 3.00
19
0711006405
ref: 19
BOLT
0711006405
€ 3.50
20
0916806024
ref: 20
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
21-1
1136140C00
ref: 21-1
-11361-40C10 W/23111
COVER,SPROCKET
€ 142.50
21-2
1136140C10
ref: 21-2
COVER,ENGINE SPROCKET
1136140C10
€ 142.50
22
0421109129
ref: 22
PIN
0421109129
€ 2.00
23-1
0711006405
ref: 23-1
FOR 11361-40C00
BOLT
0711006405
€ 3.50
23-2
0711006455
ref: 23-2
FOR 11361-40C10
BOLT
€ 2.50
24-1
0711006305
ref: 24-1
FOR 11361-40C00
BOLT
0711006305
€ 3.00
24-2
0711006355
ref: 24-2
FOR 11361-40C10
BOLT
€ 3.50
25-1
0711006505
ref: 25-1
FOR 11361-40C00
BOLT
€ 3.00
25-2
0711006555
ref: 25-2
FOR 11361-40C10
BOLT
€ 2.50
26-1
0711006655
ref: 26-1
FOR 11361-40C00
BOLT
€ 4.00
26-2
0711006705
ref: 26-2
FOR 11361-40C10
BOLT
€ 4.00
27-1
0711006705
ref: 27-1
FOR 11361-40C00
BOLT
€ 4.00
27-2
0711006755
ref: 27-2
FOR 11361-40C10
BOLT
€ 3.00
