FRONT BRAKE HOSE (MODEL L E24)

GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

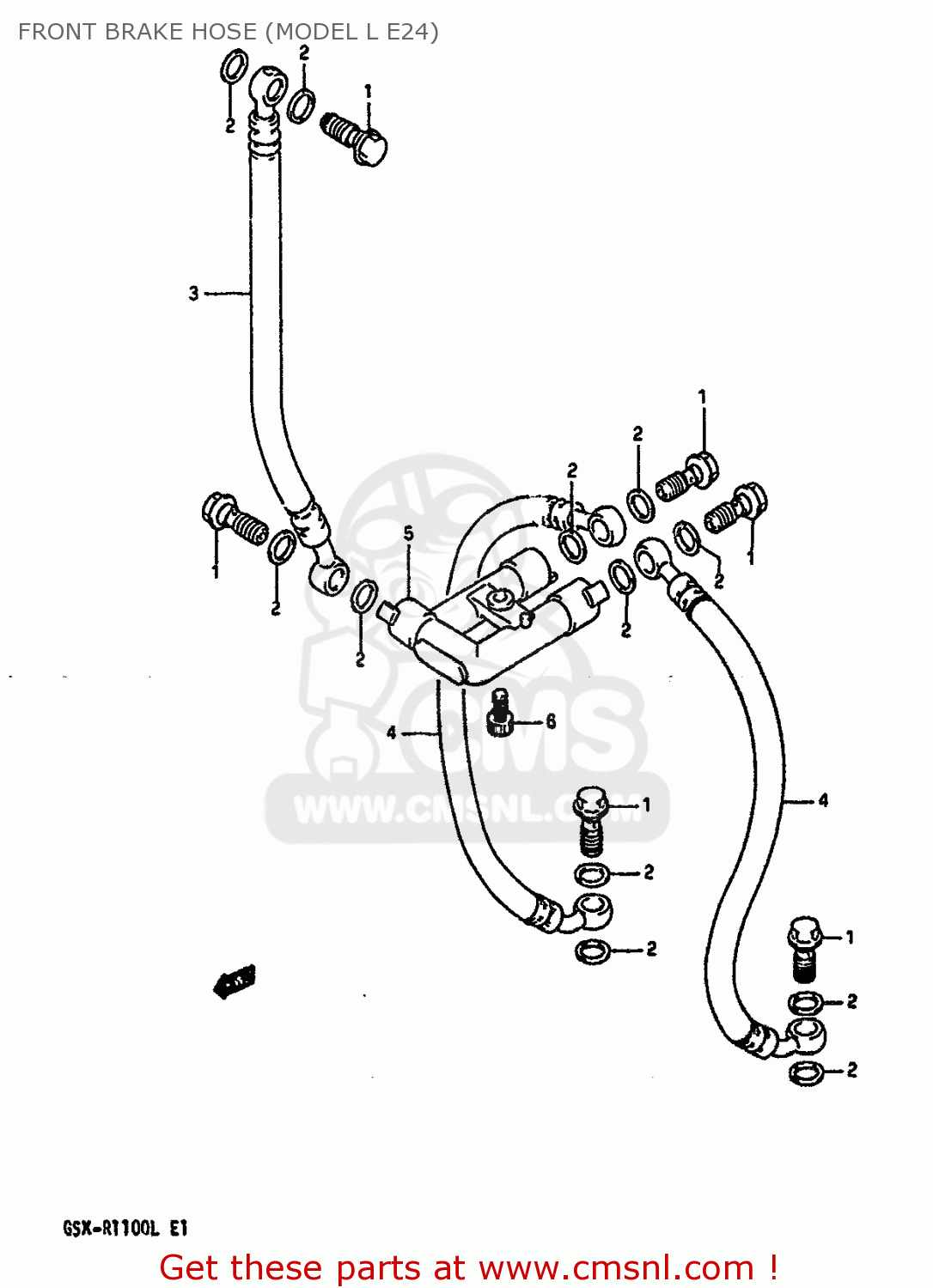

Front brake hose (model l e24) diagram GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

FRONT BRAKE HOSE (MODEL L E24) GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

FRONT BRAKE HOSE (MODEL L E24) GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

0936010017
ref: 1

BOLT UNION

€ 6.50

2

0916110009
ref: 2

WASHER(10X15X1.5)

€ 2.00

3

5948040C10
ref: 3

HOSE COMP,FRONT BRAKE

€ 46.00

4

5924040C10
ref: 4

HOSE,FR BRAKE NO.2

€ 47.00

5

5949140C01
ref: 5

JOINT,BRAKE HOSE

€ 29.00

6

0711006165
ref: 6

BOLT

€ 3.00

7

0711006165
ref: 7

BOLT

€ 3.00
