GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

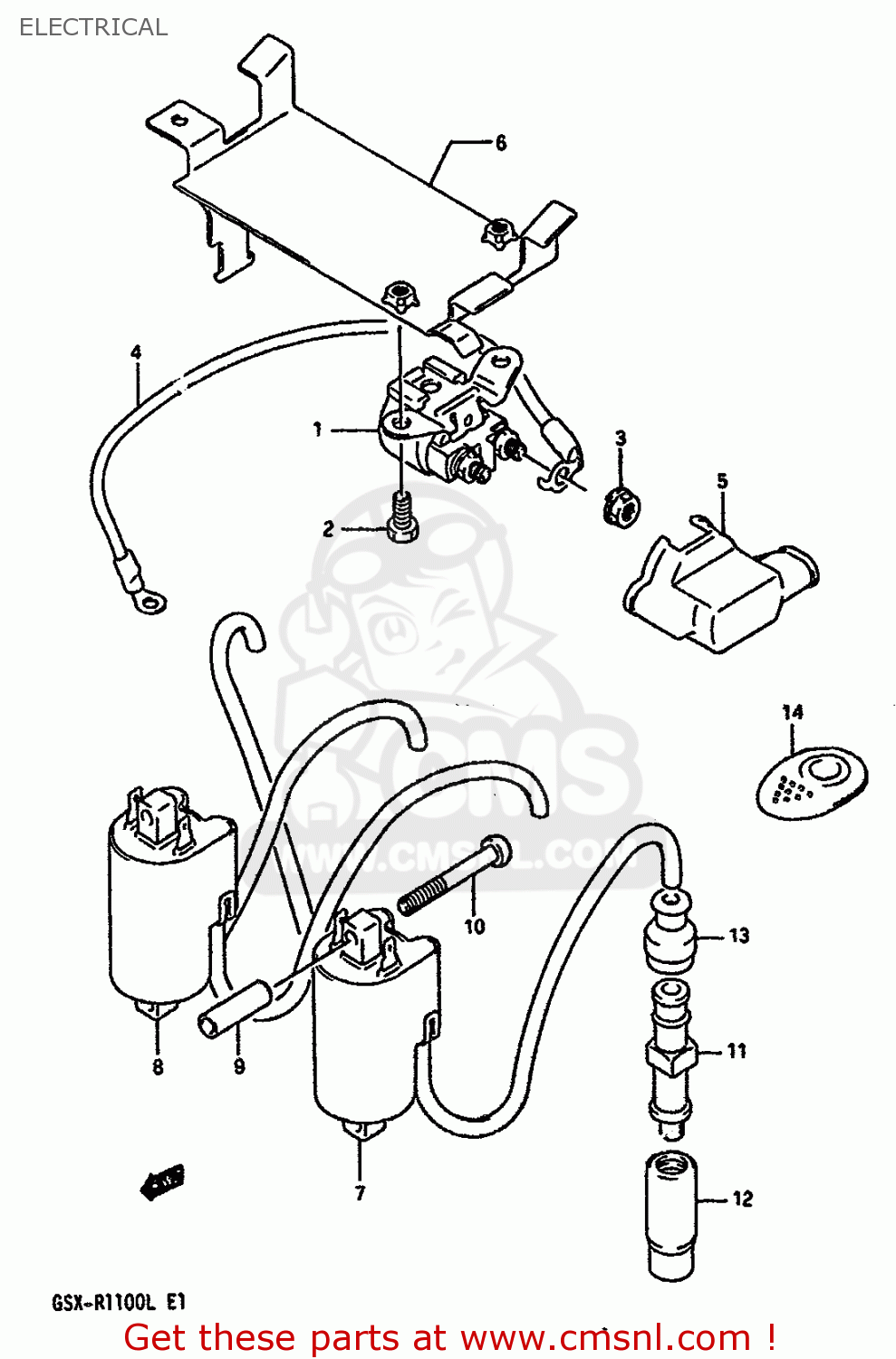

Electrical diagram GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

3180049100
ref: 1

RELAY ASSY,STARTING MOTOR

€ 89.00

0912806013
ref: 2

SCREW(6X8)

€ 1.50

0836135066
ref: 3

NUT

€ 2.00

3385040C00
ref: 4

WIRE,STARTER MOTOR LEAD

€ 29.00

3186119C00
ref: 5

COVER,RELAY ASSEMBLY

€ 6.50

4741017C00
ref: 6

HOLDER COMP,ELECTRONIC PARTS

€ 15.00

3341040C00
ref: 7

COIL ASSEMBLY,IGNITION

€ 199.00

8-1

3342017C00
ref: 8-1

COIL ASSEMBLY,IGNITION (2-3)

€ 199.00

8-2

3342017C10
ref: 8-2
E18

COIL ASSEMBLY,IGNITION

€ 199.00

9-1

0918006179
ref: 9-1
EXCEPT E18,ALUMINIUM

SPACER(6.4X10X32)

€ 5.00

9-2

0918006146
ref: 9-2
EXCEPT E18,STEEL

SPACER (6.5X10.5X31.7)

€ 3.50

0211206556
ref: 10

SCREW

€ 2.00

11-1

3351020C01
ref: 11-1
MODEL K

CAP,SPARK PLUG

€ 37.50

11-2

3351020C02
ref: 11-2
MODEL L

CAP,SPARK PLUG

€ 37.50

3354120C00
ref: 12

SEAL,SPARK PLUG

€ 19.50

3354238B00
ref: 13

SEAL,HIGH TENSION CORD

€ 4.50

3354348B00
ref: 14

COVER,SPARK PLUG CAP

€ 12.50
