CLUTCH

GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

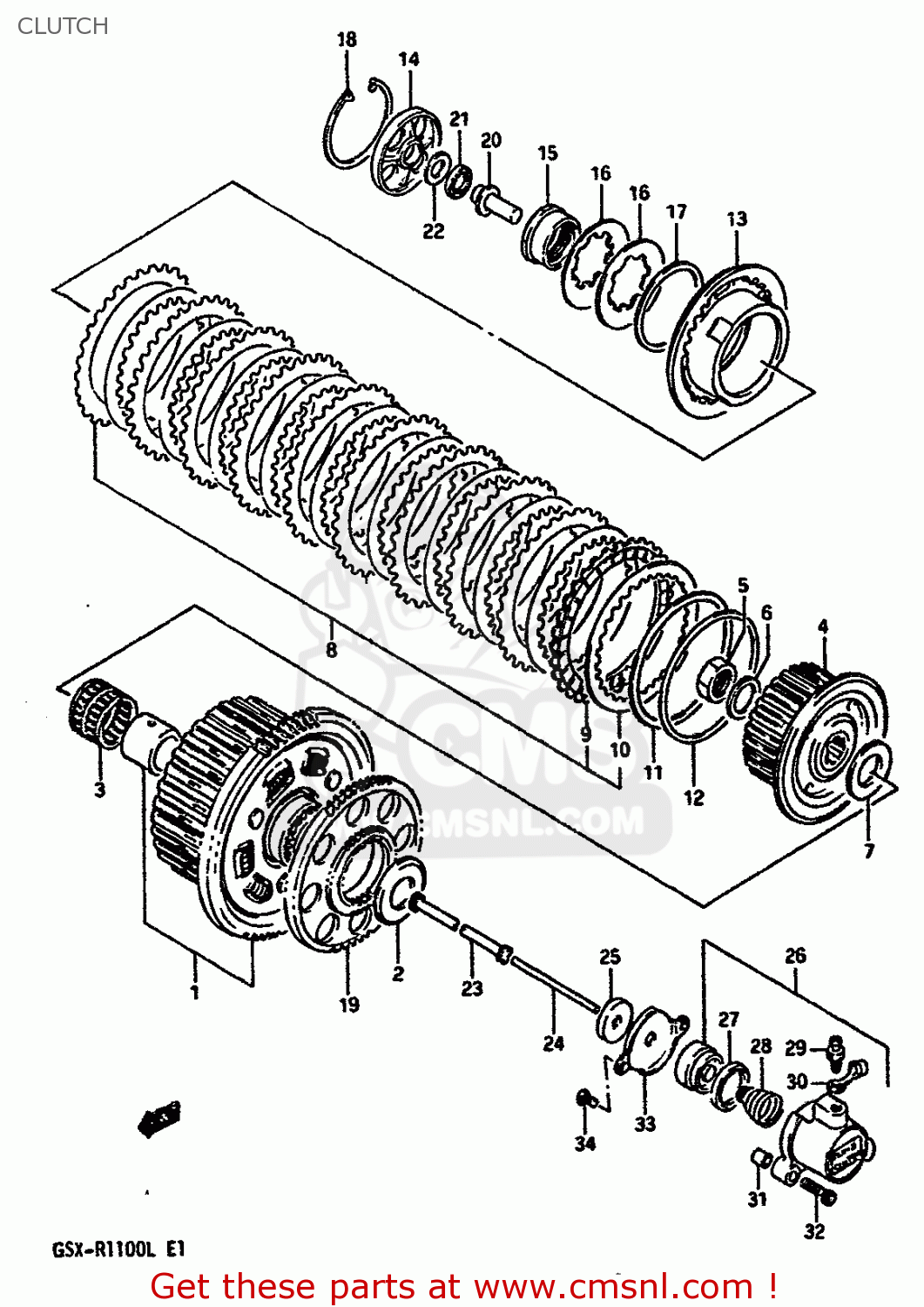

Clutch diagram GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

CLUTCH GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
CLUTCH GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
CLUTCH GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
2120040811
ref: 1-1
MODEL K
GEAR ASSEMBLY,PRIMARY DRIVE
€ 354.00
1-2
2120040812
ref: 1-2
MODEL L
GEAR ASSEMBLY,PRIMARY DRIVE
€ 354.00
2
0916025067
ref: 2
WASHER(25X54X2.5)
0916025067
€ 9.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
0926335017
€ 36.50
4
2141040C01
ref: 4
HUB,CLUTCH SLEEVE
€ 103.00
5
0914024014
ref: 5
NUT
0914024014
€ 8.50
6
0916424006
ref: 6
WASHER
0916424006
€ 4.00
7
0916025056
ref: 7
WASHER(25X50X2.5)
0916025056
€ 9.50
8
2140040C00
ref: 8
PLATE ASSEMBLY,CLUTCH
€ 222.50
9
2144148B00
ref: 9
PLATE,CLUTCH DRIVE NO.1 (NAS)
2144148B00
€ 18.00
10
2145148B00
ref: 10
PLATE,CLUTCH DRIVEN (NAS)
2145148B00
€ 10.50
11
0916400007
ref: 11
WASHER
0916400007
€ 13.00
12
2147140C01
ref: 12
SEAT,CL SLEEVE HUB WAVE WASHER
2147140C01
€ 15.00
13
2146240C02
ref: 13
DISC,CLUTCH PRESSURE
2146240C02
€ 134.50
14
2146340C01
ref: 14
LIFTER,CLUTCH PRESSURE DISC
2146340C01
€ 33.00
15
2161140C01
ref: 15
HOLDER,CLUTCH SPRING
2161140C01
€ 162.00
16
0916447001
ref: 16
WASHER
0916447001
€ 9.00
17
2162340C00
ref: 17
SEAT,CLUTCH SPRING
2162340C00
€ 9.00
18
0938184002
ref: 18
CIRCLIP
0938184002
€ 10.50
19
2272106B02
ref: 19
GEAR,GENERATOR DRIVE
€ 161.50
20
2312107A00
ref: 20
PIECE,CLUTCH PUSH
2312107A00
€ 18.50
21
0926315003
ref: 21
BEARING(15X28X2)
0926315003
€ 7.00
22
0916015015
ref: 22
WASHER
€ 4.00
23
2311027A00
ref: 23
ROD,CLUTCH
2311027A00
€ 17.00
24-1
2311144111
ref: 24-1
~E.NO.104504
ROD,CLUTCH PUSH
2311144111
€ 13.50
24-2
2311105A01
ref: 24-2
E.NO.104505~
ROD,CLUTCH PUSH
2311105A01
€ 13.50
25
0928506015
ref: 25
SEAL,OIL(6X34X5.5)
0928506015
€ 8.50
26
2316006B01
ref: 26
-23160-06B00
CYLINDER,CLUTCH RELEASE
€ 122.50
27
2316306B00
ref: 27
CUP
2316306B00
€ 5.50
28
2316405A00
ref: 28
SPRING,CLUTCH CYLINDER
2316405A00
€ 3.50
29
5912101A00
ref: 29
BLEEDER
5912101A00
€ 8.50
30
5912201A00
ref: 30
CAP,BLEEDER
5912201A00
€ 4.50
31
0421109129
ref: 31
PIN
0421109129
€ 2.00
32
0711006255
ref: 32
BOLT
0711006255
€ 3.00
33
2311727A03
ref: 33
-23117-27A02
PLATE,CLUTCH PUSH ROD
€ 6.50
34
0211206106
ref: 34
SCREW
€ 1.50
