FUEL TANK (MODEL L)

GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

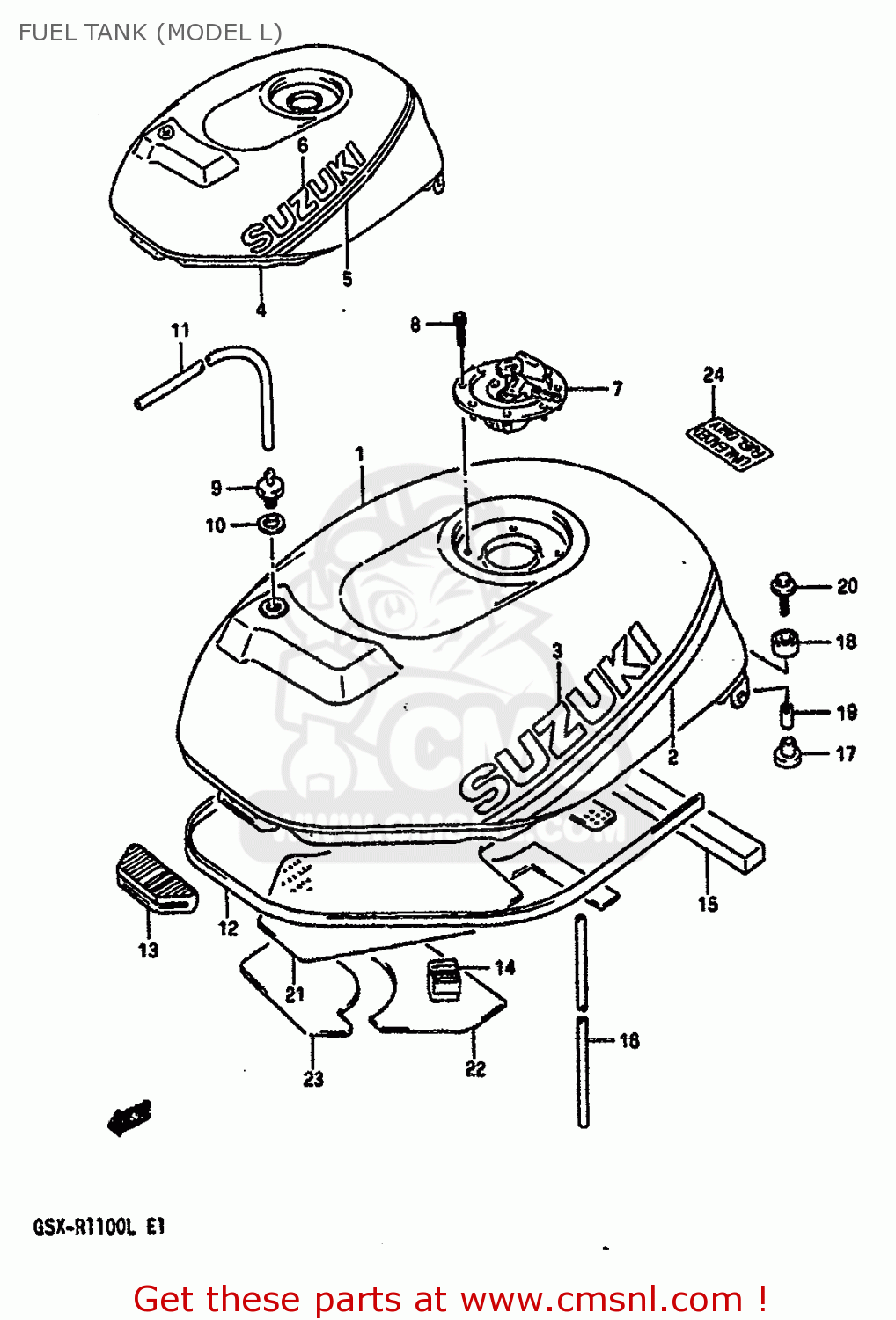

Fuel tank (model l) diagram GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

FUEL TANK (MODEL L) GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
FUEL TANK (MODEL L) GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
FUEL TANK (MODEL L) GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4910040C203SH
ref: 1-1
TANK ASSEMBLY,FUEL
€ 1,256.00
1-2
4910040C403SH
ref: 1-2
E18
TANK ASSY,FUEL
4910040C403SH
€ 734.00
1-3
4910040C803SH
ref: 1-3
E22
TANK ASSEMBLY,FUEL
€ 1,256.00
1-4
4910040C203EE
ref: 1-4
TANK ASSY,FUEL
€ 911.50
1-5
4910040C403EE
ref: 1-5
E18
TANK ASSY,FUEL
€ 0.00
1-6
4910040C803EE
ref: 1-6
E22
TANK ASSY,FUEL
€ 911.50
2-1
6811540C303SM
ref: 2-1
FOR 3SH
TAPE,FUEL TANK STRIPE
6811540C303SM
€ 38.00
2-2
6811540C303SN
ref: 2-2
FOR 3EE
TAPE,FUEL TANK
€ 35.00
3-1
68111434000NE
ref: 3-1
FOR 3SH
EMBLEM,FUEL TANK
68111434000NE
€ 12.50
3-2
68111434000JW
ref: 3-2
FOR 3EE
EMBLEM,FUEL TANK(WHITE)
68111434000JW
€ 13.00
4-1
4910040C703CG
ref: 4-1
TANK ASSEMBLY,FUEL
€ 1,256.00
4-2
4910040C503CG
ref: 4-2
E18
TANK ASSY,FUEL
€ 734.00
4-3
4910040C903CG
ref: 4-3
E22
TANK ASSY,FUEL
€ 1,256.00
5
6811517D103CG
ref: 5
FOR 3CG
TAPE,FUEL TANK
€ 55.00
6
6811112C00742
ref: 6
FOR 3CG
EMBLEM,FUEL TANK
€ 18.00
7
4420101851
ref: 7
CAP SET,FUEL TANK
€ 166.50
8
0910605017
ref: 8
BOLT(5X20)
0910605017
€ 3.00
9
4424006B10
ref: 9
PLUG,FUEL TANK BREATHER
4424006B10
€ 36.00
10
0916812012
ref: 10
GASKET(12.5X20X2.5) (NAS)
0916812012
€ 2.00
11
0935250823600
ref: 11
HOSE(5X8.2X600)
0935250823600
€ 13.00
12
6824127A00
ref: 12
MOLDING,FUEL TANK
6824127A00
€ 23.00
13
4451117C00
ref: 13
CUSHION,FUEL TANK FR
4451117C00
€ 8.50
14
4454540C00A
ref: 14
CUSHION,FUEL TANK SIDE
4454540C00A
€ 9.50
15
4415117C00
ref: 15
CUSHION, AIR SEAL
€ 18.00
16
093525082300A
ref: 16
HOSE
€ 13.00
17
0932010038
ref: 17
CUSHION
0932010038
€ 4.00
18
0932014017
ref: 18
CUSHION
0932014017
€ 3.00
19
0918006072
ref: 19
SPACER
0918006072
€ 2.00
20
0911606097
ref: 20
BOLT(6X35)
0911606097
€ 2.50
21
4419117C01
ref: 21
HEAT SHIELD,FUEL TANK
4419117C01
€ 30.50
22
4419140C00
ref: 22
E18
HEAT SHIELD,FUEL TANK IN
4419140C00
€ 16.00
23
4419140C10
ref: 23
E18
HEAT SHIELD,FUEL TANK IN
€ 39.00
24
8693273060
ref: 24
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
27-2
4428017C00
ref: 27-2
COVER,FRONT,LEFT
€ 15.00
28
0152406206
ref: 28
BOLT
€ 2.50
29
8693273060
ref: 29
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
