COWLING (MODEL L 3CG)

GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

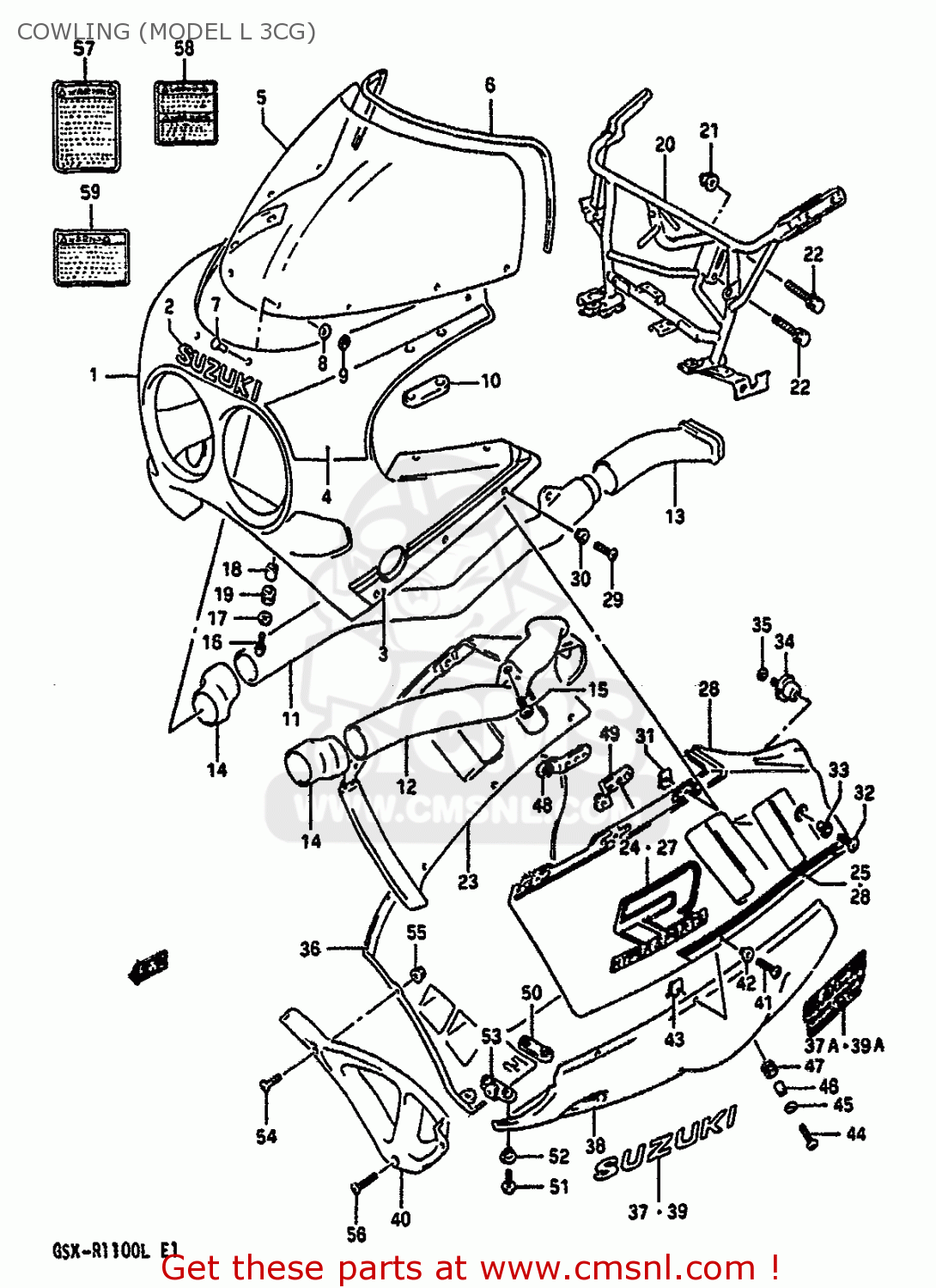

Cowling (model l 3cg) diagram GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

COWLING (MODEL L 3CG) GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL L 3CG) GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL L 3CG) GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
9440040C9133J
ref: 1
BODY ASSY,COWLING
€ 683.00
2
6818505C10742
ref: 2
EMBLEM,COWLING FR
6818505C10742
€ 9.00
3
6827040C413CG
ref: 3
TAPE SET,COWLING,UPPER
€ 28.50
4
6828040C1017U
ref: 4
TAPE SET,COWLING,UPPER,FRONT
6828040C1017U
€ 37.00
5-1
9461040C21
ref: 5-1
SCREEN,WIND
€ 455.50
5-2
9461040C30
ref: 5-2
E17
SCREEN SET,WIND
€ 0.00
6-1
9463140C20
ref: 6-1
MOLDING
€ 12.50
6-2
9463140C30
ref: 6-2
E17
MOLDING
€ 0.00
7
9461640C01
ref: 7
PIN,WINDSCREEN
9461640C01
€ 2.50
8
0932004007
ref: 8
CUSHION
0932004007
€ 3.00
9
0914804032
ref: 9
NUT
0914804032
€ 2.50
10
9457612C00
ref: 10
CUSHION,RR VIEW MIRRORR
9457612C00
€ 4.50
11
9445140C00
ref: 11
PIPE,AIR INTAKE FR,R
9445140C00
€ 33.00
12
9445240C00
ref: 12
PIPE,AIR INTAKE,FRONT
9445240C00
€ 34.00
13
9445317C00
ref: 13
PIPE,AIR INTAKE RR,R
9445317C00
€ 23.50
14
9445440C00
ref: 14
JOINT,AIR INTAKE
9445440C00
€ 16.00
15
0214206205
ref: 15
SCREW, CENTER
0214206205
€ 2.00
16
0913906056
ref: 16
SCREW(6X20)
0913906056
€ 3.00
17
0916006056
ref: 17
WASHER(6.5X18X1)
0916006056
€ 2.00
18
0918006152
ref: 18
SPACER
0918006152
€ 3.00
19
0932009016
ref: 19
CUSHION
0932009016
€ 2.50
20
9451040C12
ref: 20
BRACE,COWLING
€ 236.50
21
0831321085
ref: 21
NUT ,8MM
€ 2.50
22
0113708355
ref: 22
BOLT
€ 2.00
23
9443040C413CG
ref: 23
COVER ASSEMBLY,COWLING
€ 474.00
24
6868140C003ZJ
ref: 24
EMBLEM,COWLING SIDE,RIGHT
6868140C003ZJ
€ 24.50
25
6868540C303CH
ref: 25
TAPE,COWLING SIDE,RIGHT
€ 17.00
26
9444040C413CG
ref: 26
COVER COMP,COWLING SIDE,LEFT
€ 844.00
27
6869140C003ZJ
ref: 27
EMBLEM,COWLING SIDE,L
€ 37.00
28
6869540C303CH
ref: 28
TAPE,COWLING SIDE,LEFT
6869540C303CH
€ 17.00
29
0913905032
ref: 29
SCREW(5X18)
0913905032
€ 2.50
30
0916105017
ref: 30
WASHER(5.2X14X1.5)
0916105017
€ 3.00
31
9448432B00
ref: 31
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
32
0913906027
ref: 32
SCREW(6X12)
0913906027
€ 3.00
33
0916106021
ref: 33
WASHER(6.3X16X1.5)
0916106021
€ 2.50
34
9457004A00
ref: 34
CUSHION,COWLING
9457004A00
€ 12.50
35
0832121064
ref: 35
WASHER,LOCK
0832121064
€ 2.00
36
9447040C813CH
ref: 36
COWLING,UNDER,
€ 576.50
37
6811134301742
ref: 37
EMBLEM
€ 16.00
37A
6868127B103CS
ref: 37A
EMBLEM,SACS
6868127B103CS
€ 10.50
38
9448040C813CH
ref: 38
COWLING,UNDER,
€ 374.00
39
6818117D00742
ref: 39
EMBLEM,COWLING UNDER,L
6818117D00742
€ 14.50
39A
6868127B103CS
ref: 39A
EMBLEM,SACS
6868127B103CS
€ 10.50
40
9449817D0033J
ref: 40
COWLING,UNDER,CENTER
€ 80.50
41
0913905032
ref: 41
SCREW(5X18)
0913905032
€ 2.50
42
0916105017
ref: 42
WASHER(5.2X14X1.5)
0916105017
€ 3.00
43
9448432B00
ref: 43
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
44
0913906028
ref: 44
SCREW(6X20)
0913906028
€ 3.50
45
0916006056
ref: 45
WASHER(6.5X18X1)
0916006056
€ 2.00
46
0918006152
ref: 46
SPACER
0918006152
€ 3.00
47
0932009016
ref: 47
CUSHION
0932009016
€ 2.50
48
9458017C01
ref: 48
BRACKET
€ 6.00
49
9459017C01
ref: 49
BRACE,COWLING UNDER,LH
€ 7.00
50
9449306B00
ref: 50
BRACE,COWLING LWR COVER RR
9449306B00
€ 4.00
51
0913906039
ref: 51
SCREW(6X16)
0913906039
€ 2.50
52
0916106021
ref: 52
WASHER(6.3X16X1.5)
0916106021
€ 2.50
53
9449006B00
ref: 53
BRACE,COWLING LWR COVER
9449006B00
€ 4.50
54
0913905025
ref: 54
SCREW(5X14)
0913905025
€ 2.00
55
0831626055
ref: 55
NUT
0831626055
€ 2.00
56
0913906030
ref: 56
SCREW(6X16)
0913906030
€ 3.50
57-1
6861248B00
ref: 57-1
LABEL (WARNING SCREEN)
6861248B00
€ 6.50
57-2
6861248B10
ref: 57-2
E4
LABEL (WARNING SCREEN)
6861248B10
€ 6.50
58-1
6861340C11
ref: 58-1
LABEL (WARNING)
6861340C11
€ 8.50
58-2
6861340C00
ref: 58-2
E4,E21,E34,E53
LABEL (WARNING)
€ 7.50
59-1
6831940C00
ref: 59-1
LABEL
6831940C00
€ 8.00
59-2
6831940C20
ref: 59-2
E22,E39
LABEL, WARNING SAFETY
€ 8.00
59-3
6831940C30
ref: 59-3
E21
LABEL, WARNING SAFETY
€ 8.50
59-4
6831940C40
ref: 59-4
E34
LABEL, WARNING SAFETY
€ 8.00
59-5
6831940C50
ref: 59-5
E53
LABEL,WARNING
€ 8.00
