CARBURETOR FITTINGS

GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

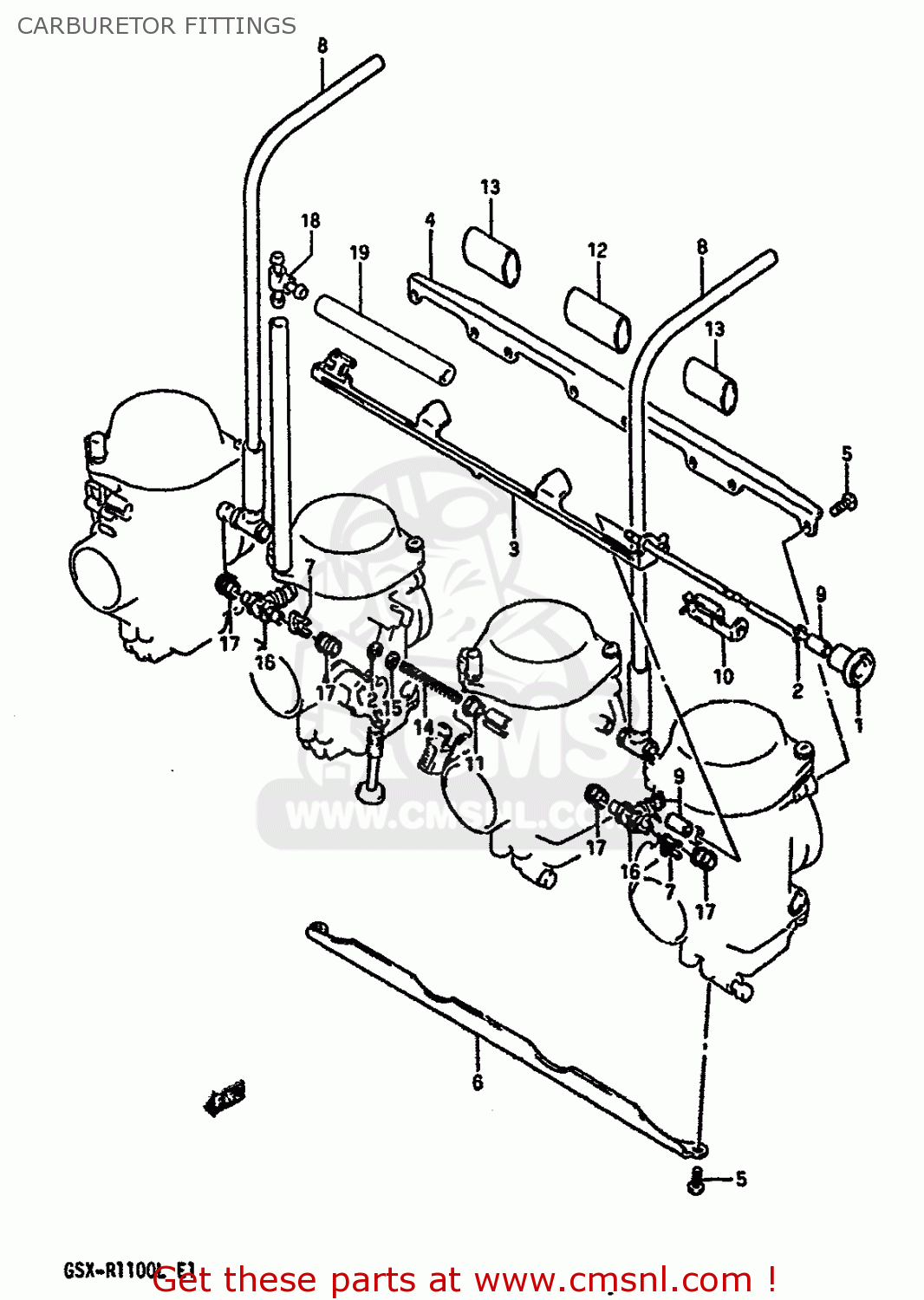

Carburetor fittings diagram GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

CARBURETOR FITTINGS GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
CARBURETOR FITTINGS GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
CARBURETOR FITTINGS GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
1341017C00
ref: 1
SHAFT ASSY,STARTER
1341017C00
€ 47.00
2
1341538300
ref: 2
E RING
1341538300
€ 2.00
3
1341317C00
ref: 3
LEVER
€ 24.00
4
1362817C10
ref: 4
PLATE
€ 29.50
5
1360205128
ref: 5
SCREW
€ 2.50
6
1362817C00
ref: 6
PLATE
€ 28.50
7
1343917C00
ref: 7
HOLDER
1343917C00
€ 12.00
8
1368317C30
ref: 8
LH,L:625-250 RH,L:62
HOSE
1368317C30
€ 20.50
9
1343217C00
ref: 9
SPACER
1343217C00
€ 6.00
10
1342117C00
ref: 10
PLATE
€ 12.50
11
1355705A10
ref: 11
RING
1355705A10
€ 6.00
12
1368417C00
ref: 12
HOSE
€ 6.50
13
1368417C10
ref: 13
HOSE
€ 6.50
14
1341709210
ref: 14
SPRING
€ 4.50
15
1360602340
ref: 15
WASHER
€ 5.00
16
1368544B00
ref: 16
NIPPLE
1368544B00
€ 10.00
17
1367344B00
ref: 17
SEAL
1367344B00
€ 6.00
18
1368548B00
ref: 18
E18
NIPPLE
1368548B00
€ 9.00
19
1368717C00
ref: 19
E18
HOSE
€ 28.50
3-6
1320340C50
ref: 3-6
E24
CARBURETOR ASSY,MR
€ 0.00
3-7
1320340C80
ref: 3-7
E39
CARBURETOR ASSY,MR
€ 0.00
4-1
1320440C00
ref: 4-1
CARBURETOR ASSY,RH
€ 0.00
4-2
1320440C40
ref: 4-2
E2,E4,E17,E21,E25,E3
CARBURETOR ASSY,RH
€ 380.00
4-3
1320440C90
ref: 4-3
E15
CARBURETOR ASSY,RH
€ 380.00
4-4
1320440C30
ref: 4-4
E18
CARBURETOR ASSY,RH
€ 0.00
4-5
1320440C60
ref: 4-5
E22
CARBURETOR ASSY,RH
€ 380.00
4-6
1320440C50
ref: 4-6
E24
CARBURETOR ASSY,RH
€ 380.00
4-7
1320440C80
ref: 4-7
E39
CARBURETOR ASSY,RH
€ 380.00
5
1350717C00
ref: 5
DIAPHRAGM
€ 24.50
6-1
1350117C00
ref: 6-1
VALVE,PISTON
1350117C00
€ 69.50
6-2
1350117C20
ref: 6-2
E2,E4,E15,E17,E18,E2
VALVE,PISTON
1350117C20
€ 64.00
7
1339410010
ref: 7
CLIP
1339410010
€ 4.50
8
1338242A00
ref: 8
RING
1338242A00
€ 3.50
9
1338747010
ref: 9
RING
1338747010
€ 7.50
10
1341742A00
ref: 10
SPRING
1341742A00
€ 6.00
11-1
1338340C00
ref: 11-1
NEEDLE,JET
1338340C00
€ 14.00
11-2
1338340C10
ref: 11-2
E2,E4,E15,E17,E21,E2
NEEDLE,JET
1338340C10
€ 15.50
11-3
1338340C40
ref: 11-3
E18
NEEDLE,JET(5D44)
1338340C40
€ 15.50
12
0831021086
ref: 12
ML,MR
NUT
€ 1.50
13
0832131086
ref: 13
ML,MR
WASHER,LOCK,8.
€ 2.50
14
1357317C00
ref: 14
ML
SPRING
€ 0.00
15
1355017C00
ref: 15
LH
SHAFT ASSEMBLY
€ 0.00
16
1355017C10
ref: 16
ML
SHAFT ASSEMBLY
€ 0.00
17
1355317C00
ref: 17
ML
LEVER
€ 7.00
18
1355344B00
ref: 18
MR
LEVER,THROTTLE
€ 7.00
19
1357317C10
ref: 19
MR
SPRING
€ 0.00
20
1355017C30
ref: 20
RH
SHAFT ASSEMBLY
€ 0.00
21
1355644B00
ref: 21
LH,RH:1,ML:MR:2
SEAL
1355644B00
€ 3.50
22
1355747070
ref: 22
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
23
1326744B00
ref: 23
ML:2,MR:1
SCREW
1326744B00
€ 3.50
24
1360442A00
ref: 24
SCREW
€ 3.50
25
1355117C00
ref: 25
VALVE,THROTTLE(125)
1355117C00
€ 37.50
26
1325844B00
ref: 26
GASKET,FLOAT CHAMBER (NAS)
1325844B00
€ 8.50
27-1
0949240014
ref: 27-1
JET(40)
0949240014
€ 8.50
27-2
0949230010
ref: 27-2
E18
JET,PILOT(30)
0949230010
€ 13.00
28-1
0949400634
ref: 28-1
JET,NEEDLE(O-9)
0949400634
€ 26.50
28-2
0949400635
ref: 28-2
E2,E4,E15,E17,E21,E2
JET,NEEDLE(O-8)
0949400635
€ 22.00
28-3
0949400639
ref: 28-3
E18
JET, NEEDLE (0-9)
€ 25.00
29
1350917C00
ref: 29
O RING
1350917C00
€ 4.50
30-1
0949124013
ref: 30-1
JET,MAIN(122.5)
0949124013
€ 7.00
30-2
0949122016
ref: 30-2
E18
JET,MAIN(110)
0949122016
€ 7.00
31
1324738B00
ref: 31
PLUG
€ 5.50
32-1
1325017C00
ref: 32-1
FLOAT/NEEDLE VALVE ASSY
1325017C00
€ 94.50
32-2
1325040C00
ref: 32-2
E18
FLOAT/NEEDLE VALVE ASSY
€ 94.50
33
1337446710
ref: 33
O RING
1337446710
€ 4.50
34
1337444080
ref: 34
O-RING,NEEDLE VALVE
1337444080
€ 6.00
35
1360234390
ref: 35
SCREW
1360234390
€ 2.50
36
1360205128
ref: 36
SCREW
€ 2.50
37
1327144B00
ref: 37
ML:2,MR:1
SPRING
1327144B00
€ 4.00
38
1326817C10
ref: 38
ML:2,MR:1
SPRING
1326817C10
€ 7.00
39
1350817C00
ref: 39
LH,ML,RH
CAP
1350817C00
€ 4.50
40
1367133600
ref: 40
LH,ML,RH
CLIP
1367133600
€ 4.00
41
1355017C20
ref: 41
MR
SHAFT ASSEMBLY
€ 0.00
42
1357428A00
ref: 42
MR
RING
1357428A00
€ 4.50
43
1350217C00
ref: 43
COVER,DIAPHRAGM
1350217C00
€ 38.50
44
1341817C00
ref: 44
CAP,STARTER
1341817C00
€ 5.00
45
1368717C00
ref: 45
MR
HOSE
€ 28.50
46
1326728A00
ref: 46
MR
SCREW
€ 22.50
47
1326843410
ref: 47
MR
SPRING
€ 6.50
48
1342738300
ref: 48
MR
WASHER
1342738300
€ 1.50
49
1341817C10
ref: 49
HOLDER,GUIDE
1341817C10
€ 14.00
50
1341709110
ref: 50
SPRING
1341709110
€ 6.00
51
1341105320
ref: 51
PLUNGER ASSY
1341105320
€ 18.00
52-1
1327947070
ref: 52-1
EXCEPT E18
SCREW,PILOT
1327947070
€ 11.50
52-2
1327947070
ref: 52-2
E22,E39
SCREW,PILOT
1327947070
€ 11.50
53
1326847070
ref: 53
EXCEPT E18
SPRING
1326847070
€ 5.00
54
1329129900
ref: 54
EXCEPT E18
WASHER
1329129900
€ 2.00
55
1329529900
ref: 55
EXCEPT E18
O RING,PILOT AIR SCREW
1329529900
€ 4.00
56
0949327002
ref: 56
E18
JET,AIR(1.35)
0949327002
€ 15.50
