Buy Suzuki GSXR Parts Online


MUFFLER

GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

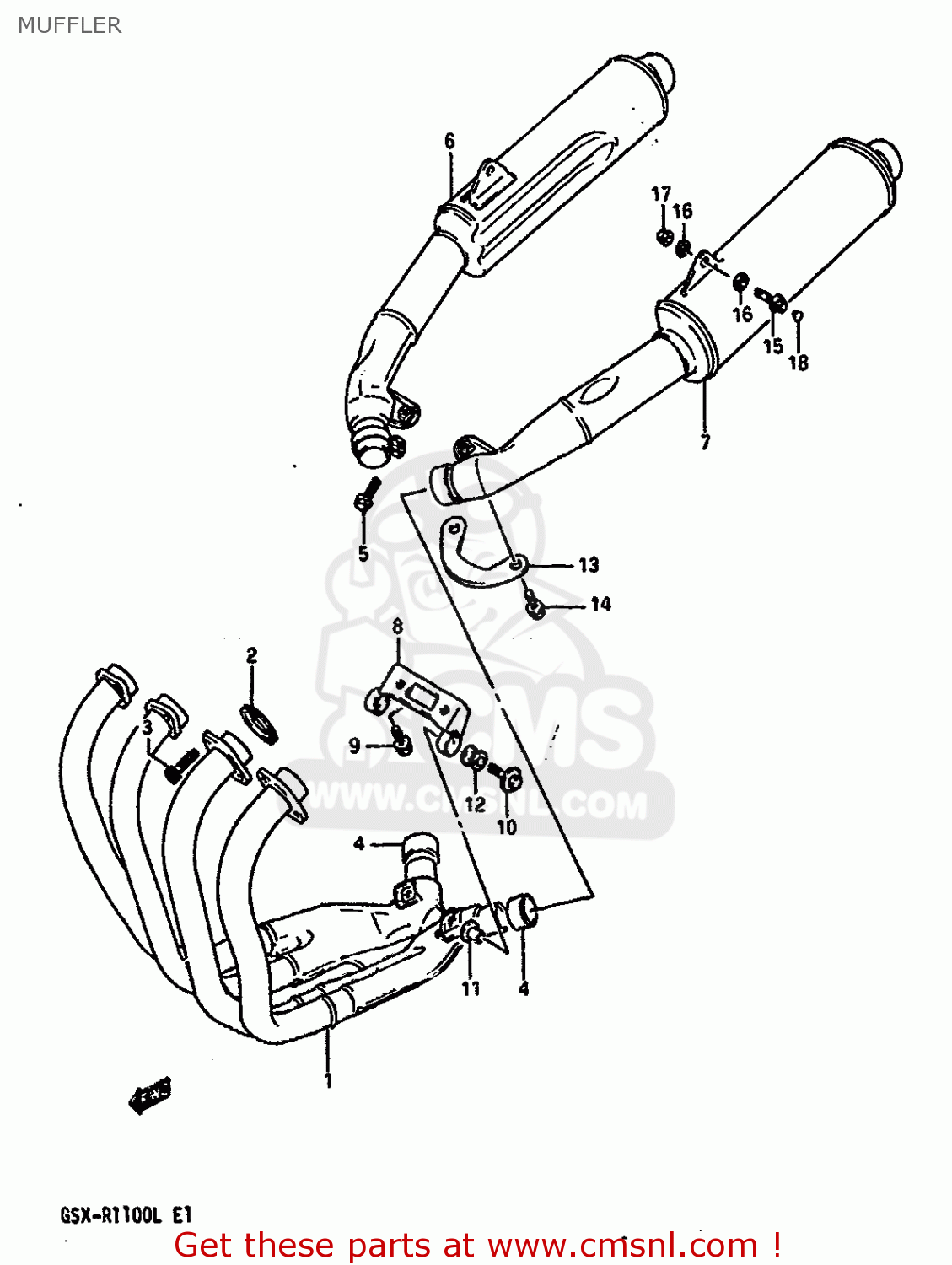

Muffler diagram GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

MUFFLER GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
MUFFLER GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
MUFFLER GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
1410040C01H01
ref: 1-1
MODEL K
PIPE,EXHAUST
€ 813.00
1-2
1410040C03H01
ref: 1-2
MODEL L
PIPE,EXHAUST
€ 813.00
1-3
1410040C20
ref: 1-3
MODEL K E4
EXHAUST ASSY
€ 0.00
1-4
1410040C22
ref: 1-4
MODEL L E4
EXHAUST ASSY
€ 0.00
1-5
1410040C10
ref: 1-5
MODEL K E17,E18,E22,
EXHAUST ASSY
€ 836.00
1-6
1410040C12
ref: 1-6
MODEL L E17,E18,E22,
EXHAUST ASSY
€ 836.00
2
1418140C00
ref: 2
GASKET,EXHAUST PIPE (NAS)
1418140C00
€ 6.50
3
0711008255
ref: 3
BOLT
0711008255
€ 3.50
4
1477144B00
ref: 4
CONNECTOR,MUFFLER
1477144B00
€ 19.50
5
0151708408
ref: 5
BOLT (8X40)
€ 3.50
6-1
1431040C01
ref: 6-1
MODEL K,-14310-40C50
MUFFLER,RH
€ 603.00
6-2
1431040C50
ref: 6-2
MODEL L
MUFFLER,RH
1431040C50
€ 603.00
6-3
1431040C11
ref: 6-3
MODEL K E2,E4,E15,E1
MUFFLER,RH
€ 670.50
6-4
1431040C90
ref: 6-4
MODEL L E2,E4,E21,E2
BODY,MUFFLER,1
€ 845.00
6-5
1431040C60
ref: 6-5
MODEL L E15,E17
MUFFLER,RH
€ 670.50
6-6
1431040C31
ref: 6-6
MODEL K E18
MUFFLER,RH
€ 730.50
6-7
1431040C80
ref: 6-7
MODEL L E18
MUFFLER,RH
€ 730.50
6-8
1431040C41
ref: 6-8
MODEL K E24,E39
MUFFLER,RH
€ 845.00
7-1
1434040C01
ref: 7-1
MODEL K,-14340-40C50
MUFFLER,LH
€ 1,186.00
7-2
1434040C50
ref: 7-2
MODEL L
MUFFLER,LH
€ 1,186.00
7-3
1434040C11
ref: 7-3
MODEL K E2,E4,E15,E1
MUFFLER ASSY,L
€ 1,020.50
7-4
1434040C90
ref: 7-4
MODEL L E2,E4,E21,E2
MUFFLER,LH
€ 704.50
7-5
1434040C60
ref: 7-5
MODEL L E15,E17
MUFFLER,LH
€ 1,020.50
7-6
1434040C31
ref: 7-6
MODEL K E18
MUFFLER,LH
€ 669.50
7-7
1434040C80
ref: 7-7
MODEL L E18
MUFFLER,LH
€ 669.50
7-8
1434040C41
ref: 7-8
MODEL K E24,E39
MUFFLER,LH
€ 704.50
8-1
1477040C01
ref: 8-1
MODEL K
DAMPER,MUFFLER SUPPORT
€ 33.50
8-2
1477040C10
ref: 8-2
MODEL L
DAMPER,MUFFLER SUPPORT CTR
1477040C10
€ 33.50
8-3
1477040C01
ref: 8-3
MODEL L E24,-14770-4
DAMPER,MUFFLER SUPPORT
€ 33.50
9
0910008240
ref: 9
BOLT(8X20)
0910008240
€ 3.50
10
0911808080
ref: 10
BOLT(8X35)
0911808080
€ 2.50
11
0918008157
ref: 11
SPACER(8.6X12X18.5)
0918008157
€ 5.50
12-1
0932012038
ref: 12-1
MODEL K
CUSHION
0932012038
€ 52.00
12-2
0932012056
ref: 12-2
MODEL L
CUSHION
0932012056
€ 13.00
12-3
0932012038
ref: 12-3
MODEL L E24,-14770-4
CUSHION
0932012038
€ 52.00
13
1476140C00
ref: 13
PLATE,MUFFLER JOINT
1476140C00
€ 16.00
14
0112708166
ref: 14
BOLT
€ 3.00
15
0712010357
ref: 15
BOLT
€ 4.00
16
0916010066
ref: 16
WASHER (10.5X24X2.3)
0916010066
€ 2.00
17
0831616105
ref: 17
NUT
€ 2.00
18
0925008012
ref: 18
CAP(OD:12)
0925008012
€ 2.00
