SIGNAL GENERATOR

GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

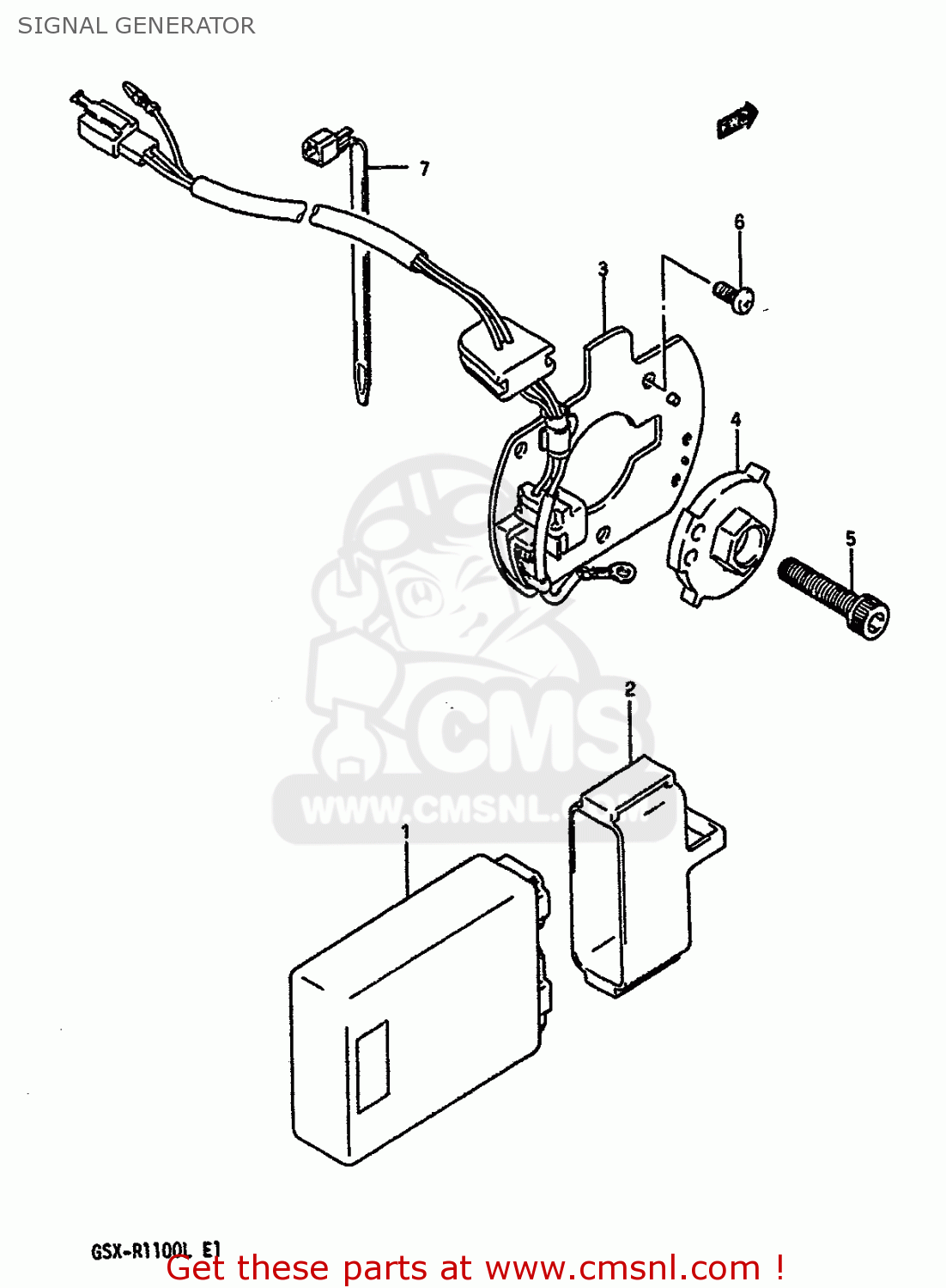

Signal generator diagram GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

SIGNAL GENERATOR GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
SIGNAL GENERATOR GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
SIGNAL GENERATOR GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
3290040C00
ref: 1
IGNITER
€ 703.00
2
3298040C00
ref: 2
CUSHION,IGNITER
3298040C00
€ 9.50
3
3311017C00
ref: 3
GENERATOR ASSY,SIGNAL
3311017C00
€ 324.00
4
3312019C00
ref: 4
ROTOR,SIGNAL
€ 182.00
5
0711008306
ref: 5
BOLT
€ 3.00
6
0211205107
ref: 6
SCREW
0211205107
€ 2.00
7
0940714403
ref: 7
CLAMP(L:125)
0940714403
€ 2.50
