HANDLE SWITCH

GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

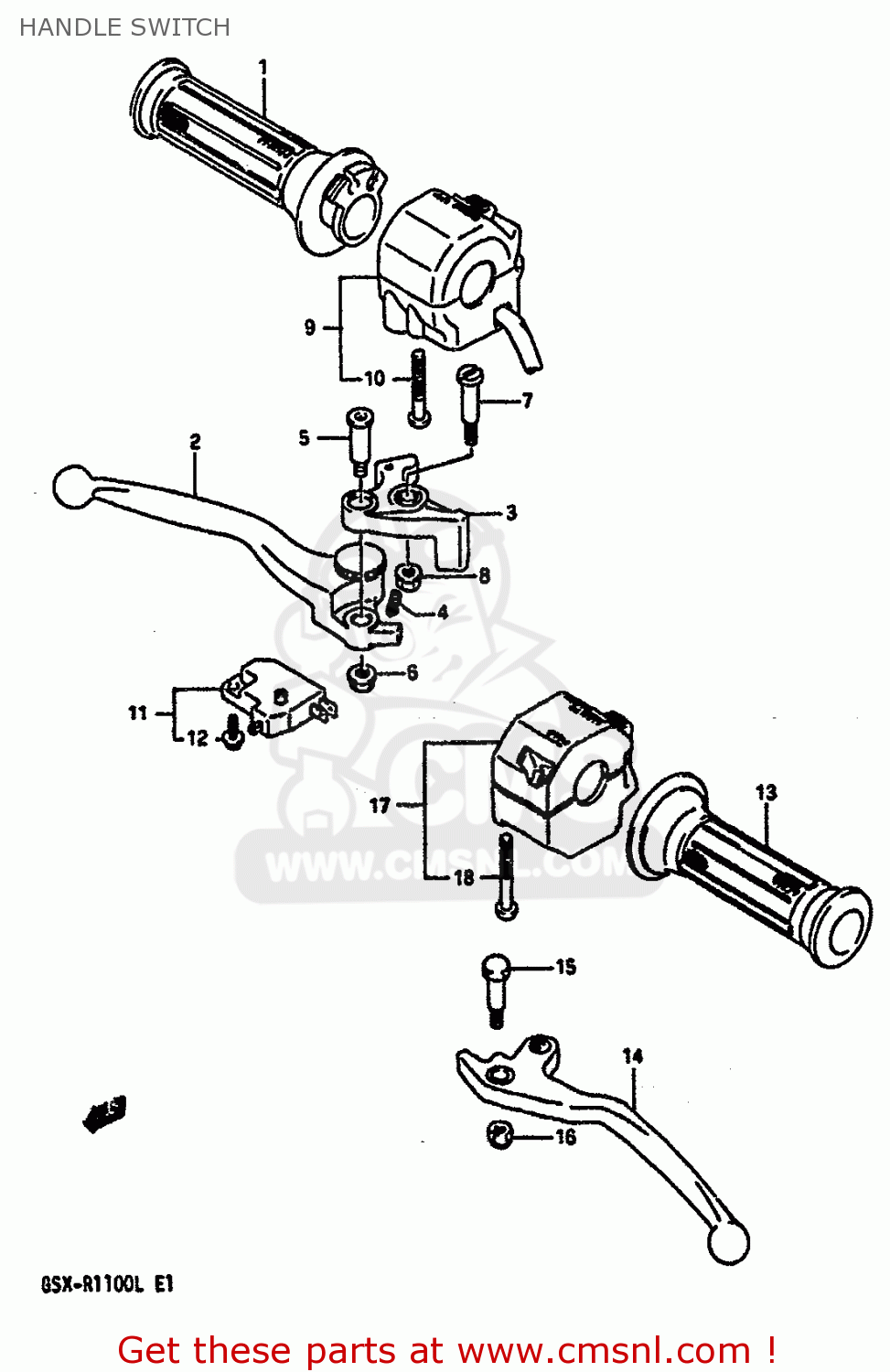

Handle switch diagram GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

5711049501
ref: 1

GRIP,THROTTLE

€ 26.00

5742032C00
ref: 2

LEVER,ADJUST

€ 39.50

5743040C00
ref: 3

KNOCKER

€ 51.00

5743832C00
ref: 4

SPRING

€ 4.00

5743732C00
ref: 5

BOLT,LEVER

€ 6.50

0831931065
ref: 6

NUT

€ 2.50

5743117C00
ref: 7

BOLT,LEVER PIVOT

€ 8.00

0831616064
ref: 8

NUT 6MM

€ 2.50

3720017C01
ref: 9

SWITCH ASSY,HANDLE RH

€ 129.00

0211205455
ref: 10

SCREW, 5X45

€ 4.00

5746017C00
ref: 11

SWITCH ASSEMBLY,STOP

€ 32.50

5746517C00
ref: 12

SCREW

€ 1.50

5721149500
ref: 13

GRIP,L

€ 9.00

5762040C00
ref: 14

LEVER,CLUTCH (SILVER)

€ 31.50

5743105A00
ref: 15

BOLT,LEVER

€ 8.50

0831921065
ref: 16

NUT

€ 2.50

3740017C00
ref: 17

SWITCH ASSY,HANDLE LH

€ 130.00

0211205455
ref: 18

SCREW, 5X45

€ 4.00
