CLUTCH MASTER CYLINDER

GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

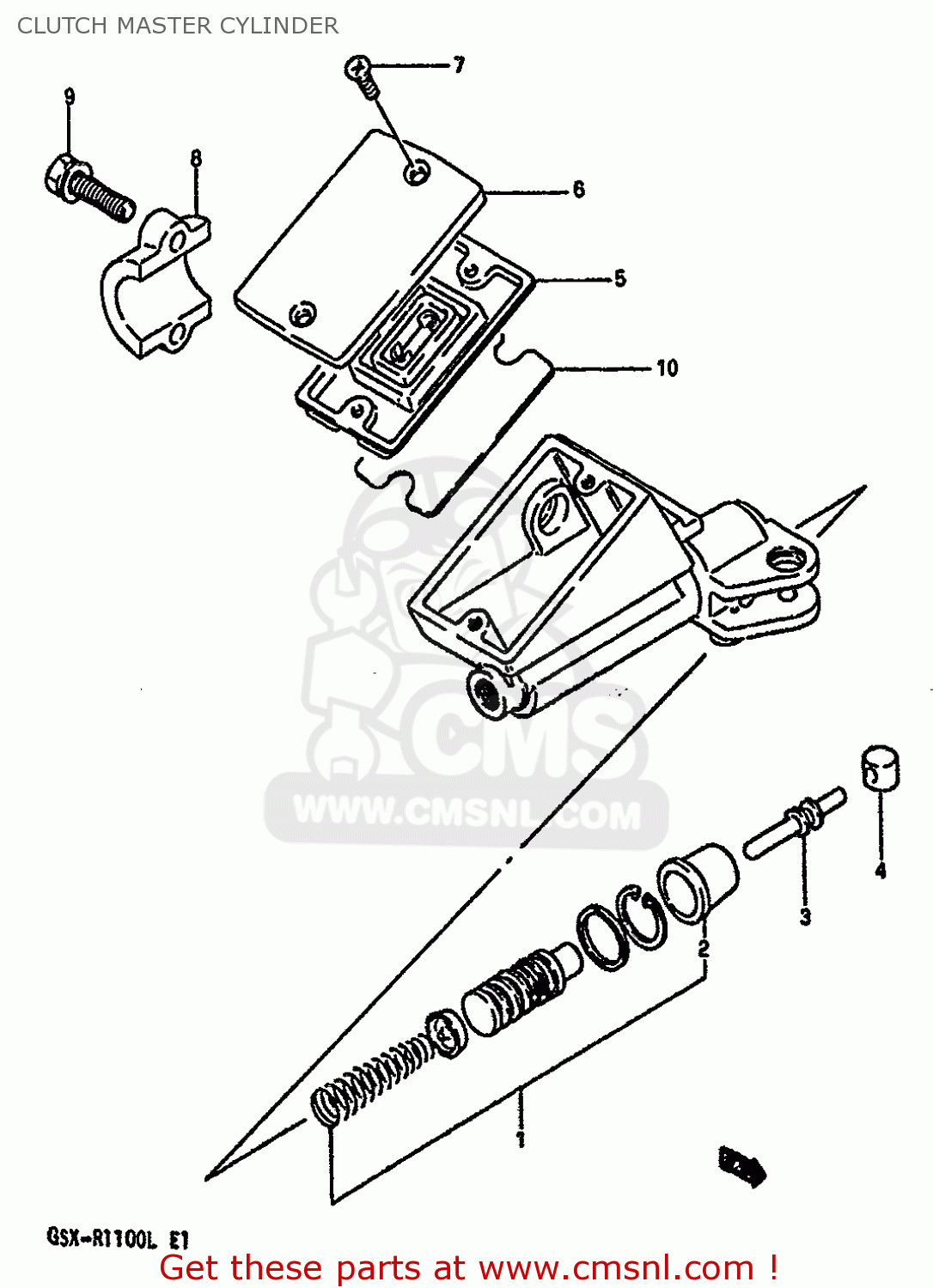

Clutch master cylinder diagram GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

CLUTCH MASTER CYLINDER GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

CLUTCH MASTER CYLINDER GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

0

5980040C10
ref: 0
MODEL K TO 59800-40C

CYLINDER ASSEMBLY,CLUTCH MASTER

€ 301.00

0

5980040C11
ref: 0
MODEL L

CYLINDER ASSEMBLY,CLUTCH MASTER

€ 301.00

1

5980008810
ref: 1

PISTON & CUP SET

€ 36.50

2

5966644300
ref: 2

BOOT

€ 6.00

3

5987108A00
ref: 3

ROD,PUSH

€ 5.50

4

5989208A00
ref: 4

BUSH

€ 5.50

5

5966749460
ref: 5

5966749460

6-1

5966924A00
ref: 6-1
MODEL K

CAP

€ 30.50

6-2

5966924A01
ref: 6-2
MODEL L

CAP,MASTER CYLINDER,REAR

€ 30.50

7

6968949300
ref: 7

SCREW

€ 1.50

8

5967119B00
ref: 8

HOLDER

€ 18.50

9

5967517C00
ref: 9

BOLT

€ 3.00

10

5966405C00
ref: 10

FLOAT

€ 6.50
