STAND

GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

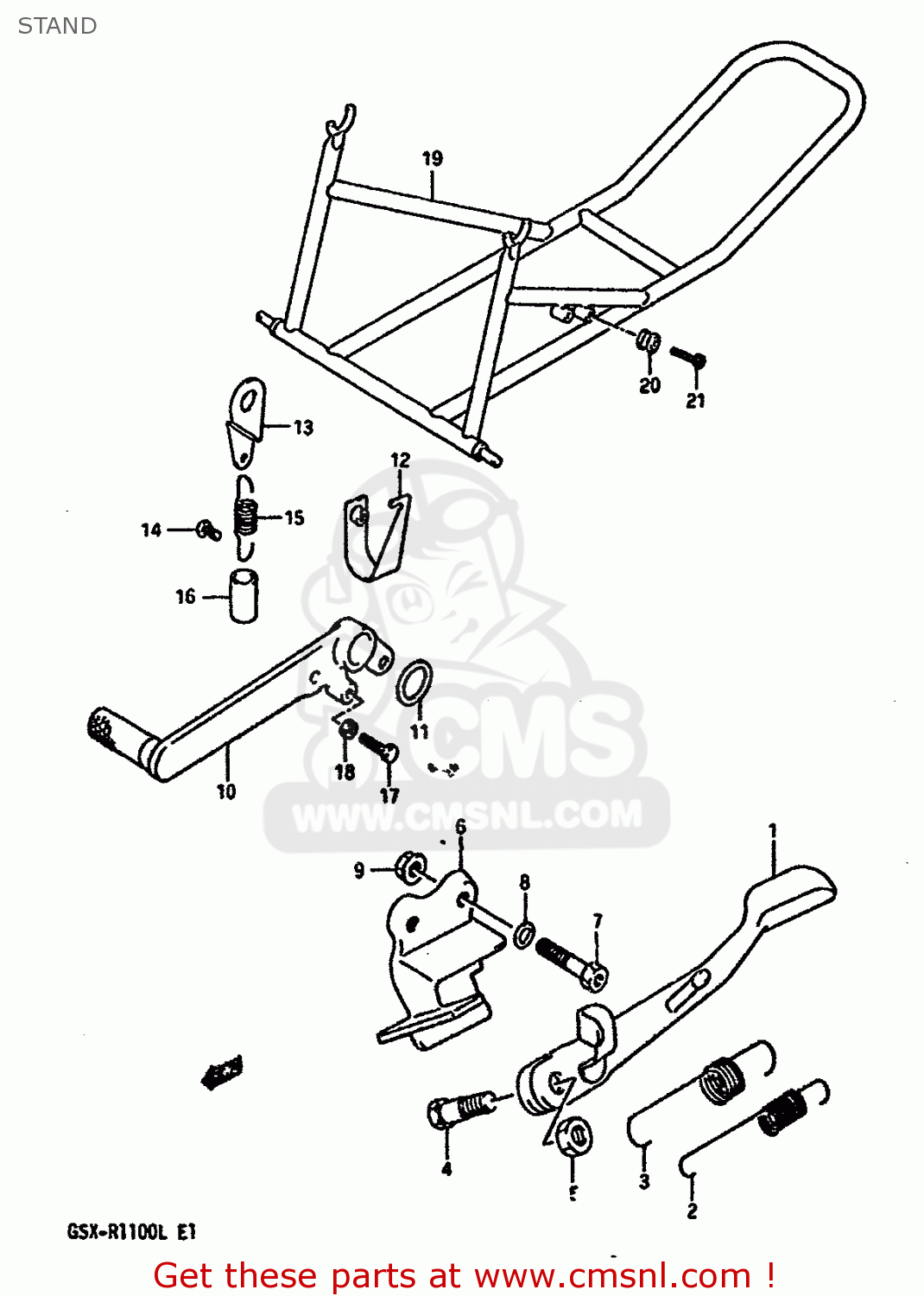

Stand diagram GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

STAND GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
STAND GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
STAND GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4231040C00
ref: 1-1
MODEL K
STAND,PROP
€ 73.00
1-2
4231040C30
ref: 1-2
MODEL L
STAND,PROP
4231040C30
€ 81.00
2
0944314058
ref: 2
SPRING
0944314058
€ 5.50
3
0944319011
ref: 3
SPRING
0944319011
€ 5.50
4
0911110036
ref: 4
BOLT(10X38)
0911110036
€ 5.50
5
0831022107
ref: 5
NUT
0831022107
€ 2.50
6-1
4233040C10
ref: 6-1
MODEL K
BRACKET,PROP STAND
4233040C10
€ 71.00
6-2
4233040C20
ref: 6-2
MODEL L
BRACKET,PROP STAND
4233040C20
€ 81.50
7
0711008357
ref: 7
BOLT, FRONT RH
0711008357
€ 4.50
8
0916408015
ref: 8
WASHER
0916408015
€ 3.00
9
0831616088
ref: 9
NUT
0831616088
€ 2.50
10-1
4311017C02
ref: 10-1
MODEL K
PEDAL,BRAKE
4311017C02
€ 96.50
10-2
4311017C03
ref: 10-2
MODEL L
PEDAL,BRAKE
4311017C03
€ 96.50
11
0916018022
ref: 11
WASHER(18X24X1)
0916018022
€ 3.00
12
4356117C01
ref: 12
PLATE,BRAKE SPRING,FRONT
4356117C01
€ 4.50
13-1
4356317C00
ref: 13-1
MODEL K
BRACKET,STOP SWITCH SPRING
€ 8.00
13-2
4356317C01
ref: 13-2
MODEL L
BRACKET,STOP SWITCH SPRING
4356317C01
€ 8.00
14
0913906027
ref: 14
SCREW(6X12)
0913906027
€ 3.00
15
0944313018
ref: 15
SPRING
0944313018
€ 4.00
16
4326117C00
ref: 16
TUBE,BRAKE SPRING GUIDE
4326117C00
€ 5.50
17
0110405206
ref: 17
BOLT
€ 2.50
18
0831011058
ref: 18
NUT
0831011058
€ 2.50
19
4210017C00
ref: 19
OPT
STAND ASSEMBLY,REAR
4210017C00
€ 471.00
20
6116527A30
ref: 20
OPT
HOLDER,STAND
6116527A30
€ 26.50
21
0711008305
ref: 21
OPT
BOLT, REAR (8X30)
0711008305
€ 3.00
