REAR FENDER (MODEL L)

GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

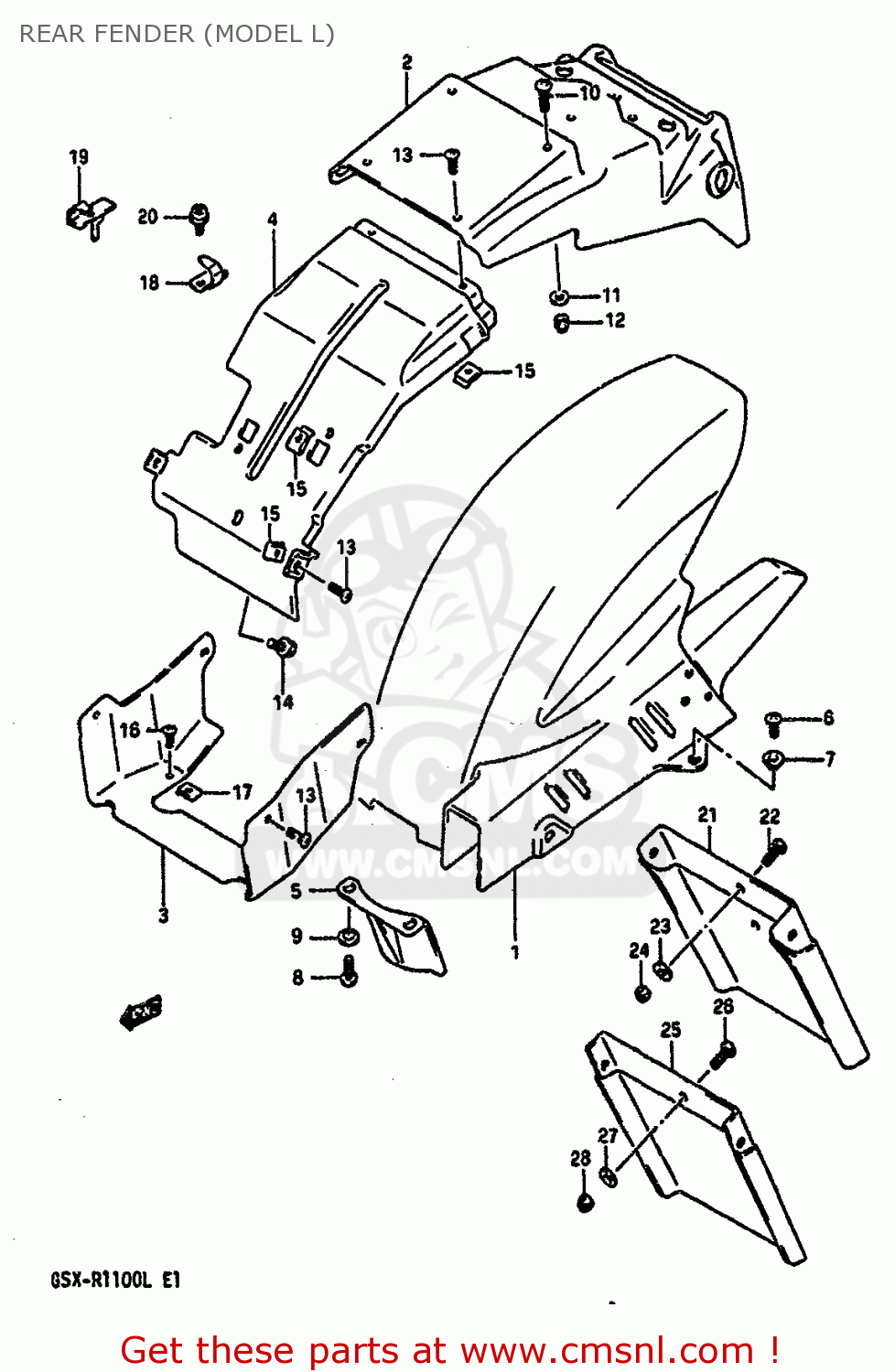

Rear fender (model l) diagram GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

REAR FENDER (MODEL L) GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
REAR FENDER (MODEL L) GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
REAR FENDER (MODEL L) GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
6311040C00
ref: 1
FENDER,RR LWR
6311040C00
€ 123.00
2-1
6311240C00
ref: 2-1
FENDER,RR UPR
6311240C00
€ 61.50
2-2
6311240C10
ref: 2-2
E15,E16,E17,E18
FENDER,RR UPPE
€ 48.00
2-3
6311240C20
ref: 2-3
E22
BODY, REAR FENDER UPPER
€ 48.00
3
6311340C00
ref: 3
FENDER,REAR
6311340C00
€ 28.00
4
6311417C00
ref: 4
FENDER,RR UPR FR NO.2
6311417C00
€ 33.50
5
6341142A00
ref: 5
GUARD,RR UNIT MUD
6341142A00
€ 3.50
6
0214206104
ref: 6
SCREW
0214206104
€ 2.00
7
0916906060
ref: 7
WASHER
0916906060
€ 2.00
8
0214206167
ref: 8
SCREW
0214206167
€ 2.00
9
0916906025
ref: 9
WASHER,LOCK
€ 3.00
10
0214206164
ref: 10
SCREW
0214206164
€ 2.50
11
0916006006
ref: 11
WASHER
0916006006
€ 2.00
12
0831921068
ref: 12
NUT 6MM
0831921068
€ 2.00
13
0214205124
ref: 13
SCREW, FRONT & REAR
€ 1.50
14
0151706105
ref: 14
BOLT
€ 2.50
15
9448432B00
ref: 15
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
16
0214205124
ref: 16
SCREW, FRONT & REAR
€ 1.50
17
9448432B00
ref: 17
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
18
9572117C02
ref: 18
HOLDER,HELMET
€ 4.00
19
9572140C00
ref: 19
HOLDER,HELMET,RIGHT
€ 8.50
20
0712006125
ref: 20
BOLT
€ 3.50
21-1
6331117C00
ref: 21-1
E17
EXTENSION, REAR FENDER
6331117C00
€ 39.00
21-2
6331117C20
ref: 21-2
E15,E16,E18,E22
EXTENSION, REAR FENDER
€ 29.00
22
0214206164
ref: 22
E15,E16,E17,E18,E22
SCREW
0214206164
€ 2.50
23
0916006006
ref: 23
E15,E16,E17,E18,E22
WASHER
0916006006
€ 2.00
24
0831921068
ref: 24
E15,E16,E17,E18,E22
NUT 6MM
0831921068
€ 2.00
25-1
6333148B00
ref: 25-1
E15,E16,E18
MUD GUARD,REAR FENDER
€ 31.00
25-2
6333148B10
ref: 25-2
E22
MUD GUARD,REAR FENDER
€ 31.00
26
0214206164
ref: 26
E15,E16,E18,E22
SCREW
0214206164
€ 2.50
27
0916006006
ref: 27
E15,E16,E18,E22
WASHER
0916006006
€ 2.00
28
0831921068
ref: 28
E15,E16,E18,E22
NUT 6MM
0831921068
€ 2.00
