CYLINDER HEAD COVER

GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

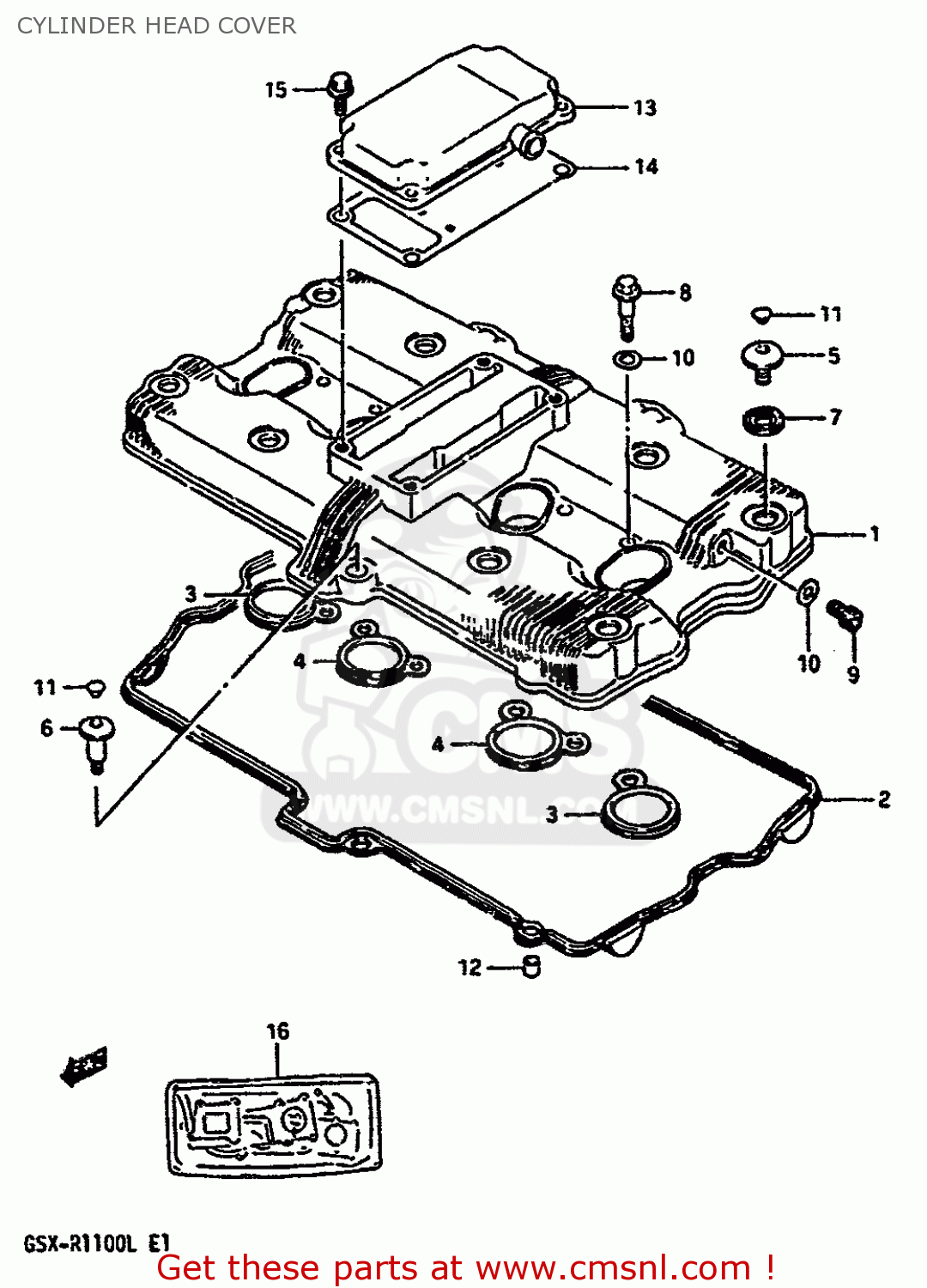

Cylinder head cover diagram GSXR1100 1989 (K) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1117117C00
ref: 1

COVER,CYLINDER HEAD

€ 461.00

1117306B02
ref: 2

GASKET,CYLINDER HEAD COVER (NAS)

€ 34.50

1117827A01
ref: 3

GASKET,HEAD COVER NO.2 (NAS)

€ 5.50

1117927A02
ref: 4

GASKET,HEAD COVER NO.3 (NAS)

€ 7.50

0910607009
ref: 5

BOLT(7X17.5)

€ 4.50

0910607010
ref: 6

BOLT(7X31)

€ 4.50

7-1

0916111006
ref: 7-1
MODEL K

WASHER

€ 4.50

7-2

0916111008
ref: 7-2
MODEL L

WASHER(10.6X25.5X2.3)

€ 4.50

0936008009
ref: 8

BOLT,UNION 8X35

€ 26.50

0711008125
ref: 9

PLUG, HEAD COVER

€ 2.50

0916808008
ref: 10

GASKET 8.2X14X1 (NAS)

€ 1.00

0925006008
ref: 11
MODEL K

CAP(OD:10)

€ 3.00

0422108129
ref: 12

PIN

€ 2.00

13-1

1117640C00
ref: 13-1
MODEL K

COVER,BREATHER

€ 26.00

13-2

1117648B10
ref: 13-2
MODEL L

COVER,BREATHER

€ 26.00

14-1

1117748B00
ref: 14-1

GASKET (NAS)

€ 10.50

14-2

1117748B00H17
ref: 14-2
E17

GASKET,BREATHER (NAS)

€ 10.50

0151706205
ref: 15

BOLT

€ 2.50

16-1

1140148812
ref: 16-1
OPT

GASKET SET

€ 338.00

16-2

1140148812H17
ref: 16-2
E17 OPT

GASKET SET (NA)

€ 338.00
