AUDIO KIT GV1400GTG OPTIONAL

GV1400GT 1986 (G) (E01)

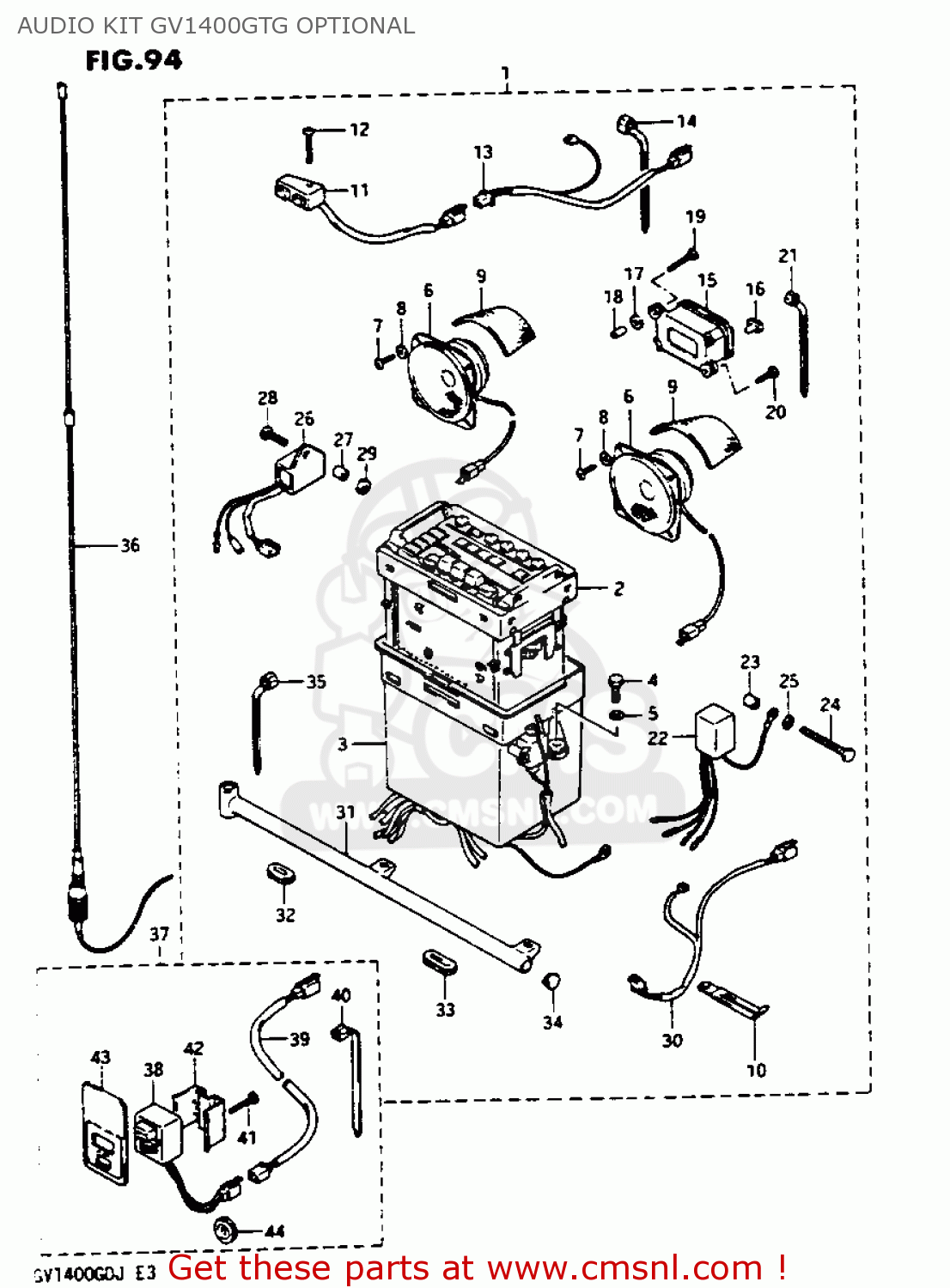

Audio kit gv1400gtg optional diagram GV1400GT 1986 (G) (E01)

AUDIO KIT GV1400GTG OPTIONAL GV1400GT 1986 (G) (E01)

AUDIO KIT GV1400GTG OPTIONAL GV1400GT 1986 (G) (E01)

prices are in EUR

ref

part #

description

quantity

1

3910024826
ref: 1

AUDIO SET

€ 771.00

2

3910124A20
ref: 2

TUNER ASSEMBLY

€ 0.00

3

3932024A02
ref: 3

CASE ASSEMBLY,TUNER

€ 704.50

4

0110706206
ref: 4

BOLT,M6X1X20

€ 2.00

5

0832121066
ref: 5

WASHER,LOCK

€ 2.00

6

3910224A10
ref: 6

SPEAKER

€ 168.00

7

0211204124
ref: 7

SCREW

€ 1.50

8

0832221045
ref: 8

WASHER

€ 5.00

9

3911524A00
ref: 9

COVER,SPEAKER

€ 6.50

10

0940406404
ref: 10

CLAMP

€ 3.00

11

3787024A01
ref: 11

SWITCH,RADIO CHANNEL SELECT

€ 66.50

12

0351104305
ref: 12

SCREW

€ 1.00

13

3685524A00
ref: 13

WIRE,RADIO CHANNEL SELECTOR

€ 0.00

14

0940718402
ref: 14

CLAMP(L:165)

€ 2.50

15

3927024A02
ref: 15

INDICATOR ASSEMBLY,TUNER C

€ 466.00

16

0947112116
ref: 16

BULB 14V

€ 0.00

17

0916004014
ref: 17

WASHER (4X16X1.2)

€ 1.50

18

0918005025
ref: 18

SPACER (5.2X8X12.5)

€ 1.50

19

0354104308
ref: 19

SCREW

€ 2.00

20

0324204169
ref: 20

SCREW

€ 4.50

21

0940718402
ref: 21

CLAMP(L:165)

€ 2.50

22

3355124A00
ref: 22

CONDENSER ASSEMBLY,REGULATOR

€ 60.50

23

0918006046
ref: 23

SPACER (6.5X10.5X13.5)

€ 3.50

24

0110706356
ref: 24

BOLT ,6X35

€ 2.50

25

0832211063
ref: 25

WASHER

€ 2.00

26

3355224A00
ref: 26

FILTER ASSEMBLY,FAN MOTOR

€ 64.50

27

0918006030
ref: 27

SPACER (6.8X10X10)

€ 2.00

28

0214206253
ref: 28

SCREW

€ 1.50

29

0831011063
ref: 29

NUTM6X1X5

€ 2.00

30

3685424A30
ref: 30

WIRE,AUDIO POWER SOURCE

€ 0.00

31

9586024A02
ref: 31

HOLDER,ANTENNA BAR

€ 36.50

32

9586724A00
ref: 32

GROMMET

€ 10.50

33

9586724A10
ref: 33

GROMMET

€ 0.00

34

0925012006
ref: 34

CAP(OD:20)

€ 3.00

35

0940725401
ref: 35

CLAMP(L:235)

€ 4.00

36

3925024A01
ref: 36

ANTENNA ASSEMBLY,TUNER

€ 196.50

37

3780024820
ref: 37

CB CO-RIDER REMOTE CONTROL SWITCH

€ 0.00

38

3919024A00
ref: 38

CONTROLLER ASSEMBLY,TUNER

€ 95.50

39

3685624A00
ref: 39

WIRE,CHANNEL SELECT SWITCH

€ 0.00

40

0940718402
ref: 40

CLAMP(L:165)

€ 2.50

41

0214204306
ref: 41

SCREW

€ 1.50

42

3787524A30
ref: 42

SWITCH

€ 3.00

43

4548024A10
ref: 43

PANEL COMP,TUNER ASSEMBLY

€ 35.00

44

4542624A00
ref: 44

GROMMET

€ 0.00
