SPEEDOMETER -TACHOMETER

GV1400GT 1986 (G) (E01)

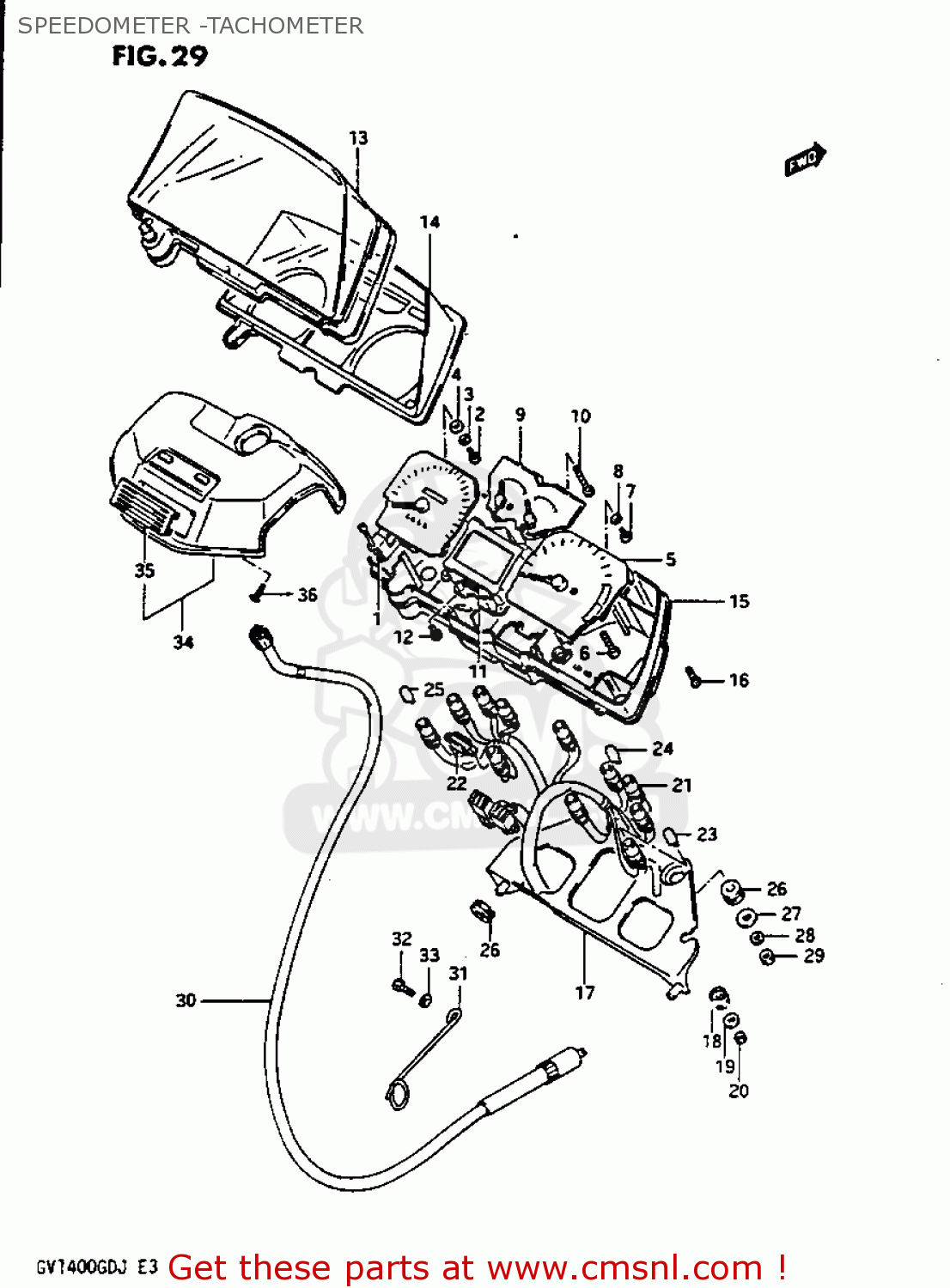

Speedometer -tachometer diagram GV1400GT 1986 (G) (E01)

SPEEDOMETER -TACHOMETER GV1400GT 1986 (G) (E01)

SPEEDOMETER -TACHOMETER GV1400GT 1986 (G) (E01)

prices are in EUR

ref

part #

description

quantity

1

3411024A30
ref: 1

METER,SPEEDOMETER (KM/MPH)

€ 422.50

2

0211204106
ref: 2

SCREWM4X0.7X10

€ 1.00

3

0832121046
ref: 3

LOCK WASHER

€ 2.00

4

0832221046
ref: 4

WASHER

€ 5.00

5

3421024A30
ref: 5

METER,TACHOMETER

€ 442.50

6

3428324A30
ref: 6

SCREW

€ 0.00

7

0211203126
ref: 7

SCREW

€ 2.50

8

0832121036
ref: 8

LOCK WASHER

€ 1.50

9

3431024A30
ref: 9

FUEL & TEMP METER

€ 151.50

10

3438309400
ref: 10

SCREW(3X22)

€ 2.50

11

3647024A30
ref: 11

UNIT,INDICATOR

€ 778.50

12

0324104166
ref: 12

SCREW

€ 4.50

13

3411224A30
ref: 13

HOOD,METER

€ 67.50

14-1

3415324A31
ref: 14-1
GV1400GDDG/GCG GV140

PANEL,METER

€ 60.50

14-2

3415324A51
ref: 14-2
GV1400GTG

PANEL,METER

€ 28.00

15

3411124A30
ref: 15

CASE,METER

€ 66.50

16

0324104126
ref: 16

SCREW,L:12

€ 2.00

17

3495024A30
ref: 17

BRACKET,METER

€ 41.50

18

3418924A30
ref: 18

CUSHION

€ 4.00

19

0916005017
ref: 19

WASHER (5.5X16X1.2)

€ 2.50

20

0831000057
ref: 20

NUT

€ 2.50

21

3417024A30
ref: 21

SOCKET,METER

€ 109.00

22

3417524A30
ref: 22

LEAD SWITCH

€ 46.00

23

0947112028
ref: 23

BULB(12V3.4W,T10)

€ 3.50

24

0947112077
ref: 24

BULB(12V1.7W,T10,WB121)

€ 1.00

25

0947112117
ref: 25

BULB 12V 1.7W

€ 0.00

26

0932008021
ref: 26

CUSHION

€ 4.00

27

0916006066
ref: 27

WASHER(6.5X20X1.6)

€ 2.00

28

0832121066
ref: 28

WASHER,LOCK

€ 2.00

29

0831012066
ref: 29

NUT

€ 2.00

30

3491024A00
ref: 30

CABLE ASSY,SPEEDOMETER

€ 65.00

31

3493845100
ref: 31

CLAMP,SPEEDOMETER CABLE

€ 14.50

32

0150006167
ref: 32

BOLT

€ 3.00

33

0832201067
ref: 33

WASHER

€ 2.00

34-1

3789024A00
ref: 34-1
~F.NO.103764

SWITCH ASSEMBLY,TIME ADJUST

€ 112.00

34-2

3789024A10
ref: 34-2
F.NO.03765~

SWITCH ASSEMBLY,TIME ADJUST

€ 123.50

35

3789324A00
ref: 35

LOUVER

€ 10.50

36

0214206104
ref: 36

SCREW

€ 2.00
