FRONT WHEEL GV1400GDG/GTG F.NO.103765-/GCG/MODEL H/J

GV1400GT 1986 (G) (E01)

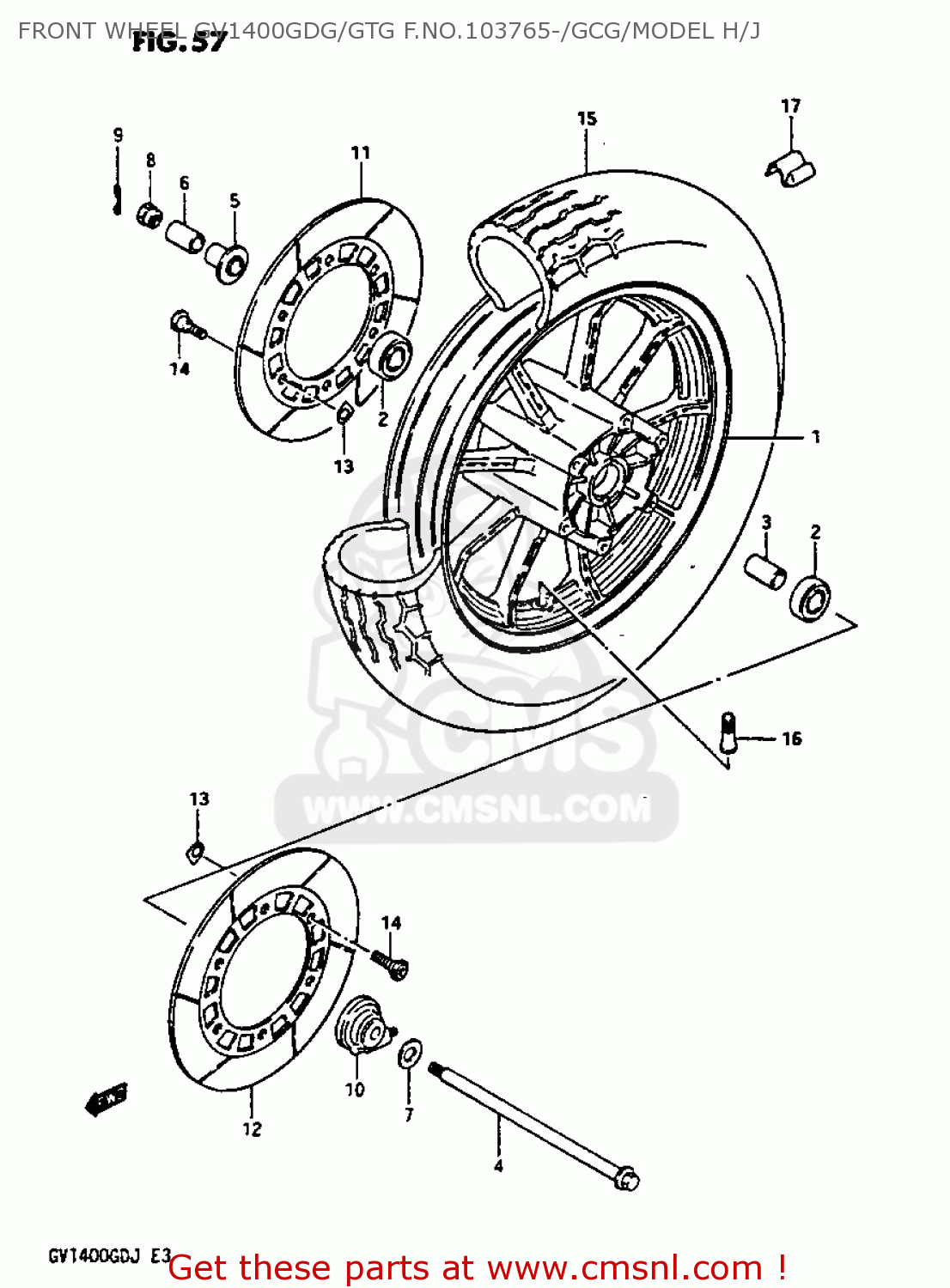

Front wheel gv1400gdg/gtg f.no.103765-/gcg/model h/j diagram GV1400GT 1986 (G) (E01)

FRONT WHEEL GV1400GDG/GTG F.NO.103765-/GCG/MODEL H/J GV1400GT 1986 (G) (E01)

FRONT WHEEL GV1400GDG/GTG F.NO.103765-/GCG/MODEL H/J GV1400GT 1986 (G) (E01)

prices are in EUR

ref

part #

description

quantity

1

5411124A02291
ref: 1

WHEEL,FRONT (MT2.50X16)

€ 571.00

2

0812363027
ref: 2

BEARING

€ 19.00

3

0918015072
ref: 3

SPACER

€ 14.50

4

5471124A01
ref: 4

AXLE,FRONT

€ 39.00

5

5474018410
ref: 5

SPACER,FR HUB BEARING,R

€ 17.00

6

5474149300
ref: 6

SPACER,FR AXLE,R

€ 19.00

7

0916015038
ref: 7

WASHER

€ 0.00

8

0915912018
ref: 8

NUT (12MM)

€ 9.00

9

5479138A00
ref: 9

PIN,FRONT AXLE

€ 2.50

10

5460024A00
ref: 10

BOX ASSY,SPEEDOMETER GEAR

€ 85.50

11

5921124A10
ref: 11

DISC,FRONT BRAKE,RIGHT

€ 289.50

12

5922124A10
ref: 12

DISC,FR BRAKE,L

€ 339.00

13

5921424A00
ref: 13

SHIM,BRAKE DISC

€ 4.50

14

0910608049
ref: 14

BOLT(8X25.5)

€ 4.00

15-1

5510024A52
ref: 15-1
GV1400GDG,DUNLOP

TIRE,FRONT 130/90-16.6

€ 104.00

15-2

5510024A52
ref: 15-2
GV1400GTG,DUNLOP

TIRE,FRONT 130/90-16.6

€ 104.00

15-3

5510024A52
ref: 15-3
MODEL J,DUNLOP

TIRE,FRONT 130/90-16.6

€ 104.00

15-4

5510024A52
ref: 15-4
GV1400GC,DUNLOP MODE

TIRE,FRONT 130/90-16.6

€ 104.00

16

4313078030
ref: 16

VALVE,TIRE TR413 BS

€ 14.50

17-1

5541100A00
ref: 17-1
MODEL G

BALANCER,WHEEL (10G)

€ 6.50

17-2

5541200A00
ref: 17-2
MODEL G

BALANCER,WHEEL

€ 7.00

17-3

5541300A00
ref: 17-3
MODEL G

BALANCER,WHEEL

€ 4.00

17-4

5541100A00
ref: 17-4
MODEL H/J

BALANCER,WHEEL (10G)

€ 6.50

17-5

5541200A00
ref: 17-5
MODEL H/J

BALANCER,WHEEL

€ 7.00

17-6

5541300A00
ref: 17-6
MODEL H/J

BALANCER,WHEEL

€ 4.00
