SIDE BAG GV1400GDG/GTG
GV1400GT 1986 (G) (E01)

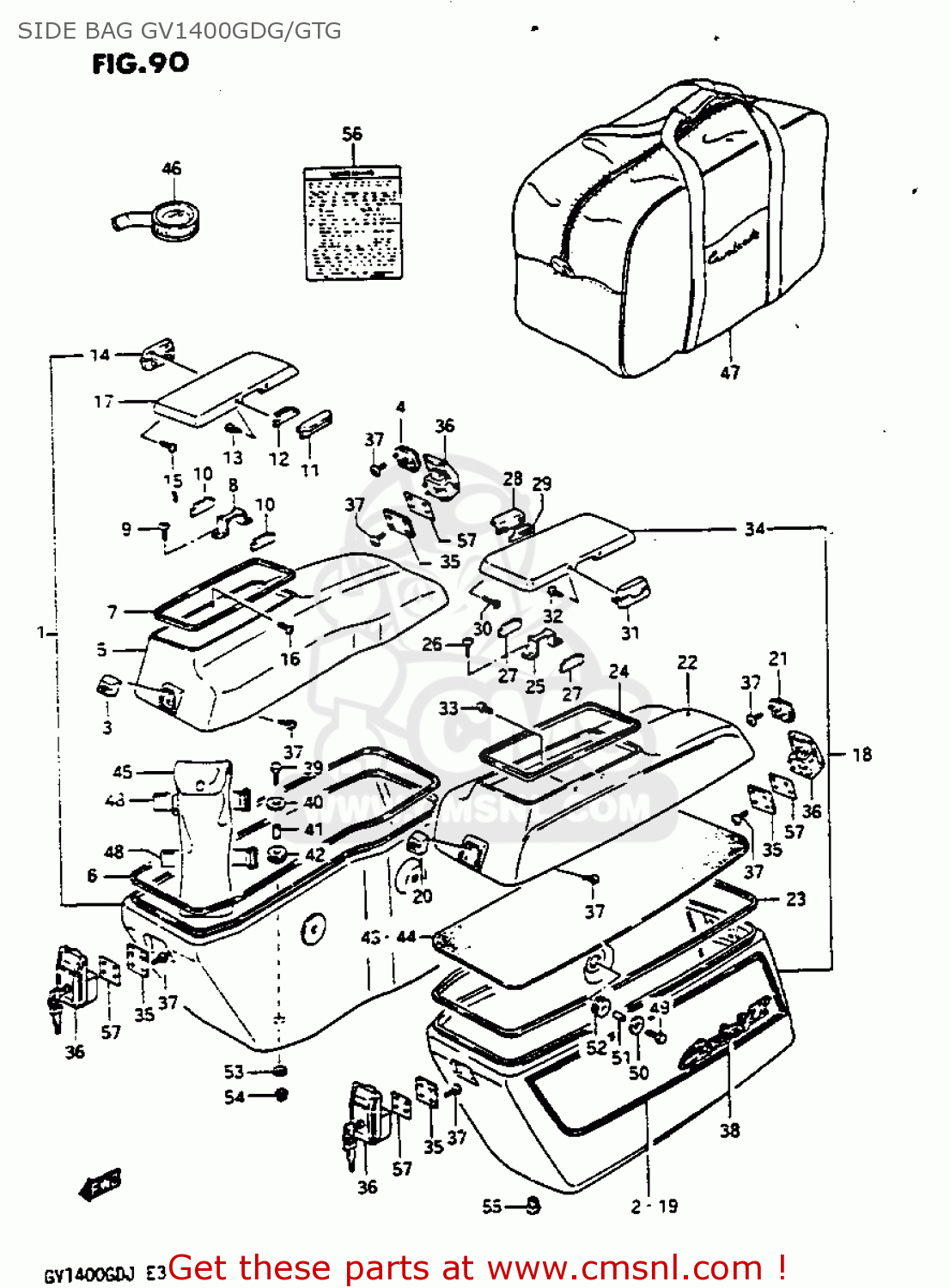

Side bag gv1400gdg/gtg diagram GV1400GT 1986 (G) (E01)
SIDE BAG GV1400GDG/GTG GV1400GT 1986 (G) (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
9540024A017UM
ref: 1-1
GV1400GDG
SIDE BAG ASSEMBLY,RIGHT
€ 1,378.50
1-2
9540024A017UN
ref: 1-2
GV1400GDG
SIDE BAG ASSEMBLY,RIGHT
€ 1,416.50
1-3
9540024A1112S
ref: 1-3
GVU400GTG
SIDE BAG ASSEMBLY,RIGHT
€ 359.50
1-4
9540024A1124K
ref: 1-4
GVU400GTG
SIDE BAG ASSEMBLY,RIGHT
€ 359.50
2-1
6826024A007UP
ref: 2-1
GV1400GDG,FOR 7UM
TAPE SET,SIDE BAG,RIGHT
€ 0.00
2-2
6826024A007UR
ref: 2-2
GV1400GDG,FOR 7UN
TAPE SET,SIDE BAG,RIGHT
€ 33.00
2-3
6826024A1078V
ref: 2-3
GV1400GTG,FOR 12S
TAPE SET,SIDE BAG,RIGHT
€ 0.00
2-4
6826024A107US
ref: 2-4
GV1400GTG,FOR 24K
TAPE SET,SIDE BAG,RIGHT
€ 0.00
3
9331624A02
ref: 3
PLATE,TRUNK LID LOCK
€ 15.00
4
9331624A13
ref: 4
PLATE,SIDE BAG LID LOCK
€ 15.00
5-1
9544024A0024G
ref: 5-1
GV1400GDG,FOR 7UM
LID,SIDE BAG,RIGHT
€ 433.50
5-2
9544024A0024H
ref: 5-2
GV1400GDG,FOR 7UN
LID,SIDE BAG,RIGHT
€ 433.50
5-3
9544024A0012S
ref: 5-3
GV1400GTG,FOR 12S
LID,SIDE BAG,RIGHT
€ 433.50
5-4
9544024A0024K
ref: 5-4
GV1400GTG,FOR 24K
LID,SIDE BAG,RIGHT
€ 0.00
6
9542224A01
ref: 6
SEAL,SIDE BAG
€ 10.50
7
9544624A02
ref: 7
SEAL,SIDE BAG
€ 9.00
8
9551624A00
ref: 8
HOLDER,LID LOCK MAGNET
€ 4.00
9
0351103125
ref: 9
SCREW
€ 0.00
10
9542324A10
ref: 10
PLATE,LID LOCK
€ 4.00
11
9544724A00
ref: 11
LEVER,SIDE POCKET OPEN
€ 19.50
12
9542424A00
ref: 12
PLATE,LID LOCK NO.1
€ 4.50
13
0214204065
ref: 13
SCREW
€ 1.50
14
9544324A00
ref: 14
HINGE,LID SIDE BAG POCKET
€ 47.00
15
0214204065
ref: 15
SCREW
€ 1.50
16
0214204125
ref: 16
SCREW
€ 1.50
17
9544824A00
ref: 17
LID,SIDE BAG POCKET
€ 65.50
18-1
9550024A017UM
ref: 18-1
GV1400GDG
SIDE BAG ASSEMBLY,LEFT
€ 312.50
18-2
9550024A017UN
ref: 18-2
GV1400GDG
SIDE BAG ASSEMBLY,LEFT
€ 1,507.00
18-3
9550024A1112S
ref: 18-3
GV1400GTG
SIDE BAG ASSEMBLY,LEFT
€ 379.50
18-4
9550024A1124K
ref: 18-4
GV1400GTG
SIDE BAG ASSEMBLY,LEFT
€ 368.50
19-1
6829024A007UP
ref: 19-1
GV1400GDG,FOR 7UM
TAPE SET, SIDE BAG LH
€ 0.00
19-2
6829024A007UR
ref: 19-2
GVU400GDG,FOR 7UN
TAPE SET,SIDE BAG,LEFT
€ 0.00
19-3
6829024A1078V
ref: 19-3
GV1400GTG,FOR 12S
TAPE SET
€ 0.00
19-4
6829024A107US
ref: 19-4
GV1400GTG,FOR 24K
TAPE SET,SIDE BAG,LEFT
€ 0.00
20
9331624A02
ref: 20
PLATE,TRUNK LID LOCK
€ 15.00
21
9331624A13
ref: 21
PLATE,SIDE BAG LID LOCK
€ 15.00
22-1
9554024A0024G
ref: 22-1
GV1400GDG,FOR 7UM
LID,SIDE BAG,LEFT
€ 389.50
22-2
9554024A0024H
ref: 22-2
GVU400GDG,FOR 7UN
LID,SIDE BAG,LEFT
€ 346.50
22-3
9554024A0012S
ref: 22-3
GV1400GTG,FOR 12S
LID,SIDE BAG,LEFT
€ 0.00
22-4
9554024A0024K
ref: 22-4
GV1400GTG,FOR 24K
LID,SIDE BAG,LEFT
€ 0.00
23
9542224A01
ref: 23
SEAL,SIDE BAG
€ 10.50
24
9544624A02
ref: 24
SEAL,SIDE BAG
€ 9.00
25
9551624A00
ref: 25
HOLDER,LID LOCK MAGNET
€ 4.00
26
0351103125
ref: 26
SCREW
€ 0.00
27
9542324A10
ref: 27
PLATE,LID LOCK
€ 4.00
28
9544724A00
ref: 28
LEVER,SIDE POCKET OPEN
€ 19.50
29
9542424A00
ref: 29
PLATE,LID LOCK NO.1
€ 4.50
30
0214204065
ref: 30
SCREW
€ 1.50
31
9544324A00
ref: 31
HINGE,LID SIDE BAG POCKET
€ 47.00
32
0214204065
ref: 32
SCREW
€ 1.50
33
0214204125
ref: 33
SCREW
€ 1.50
34
9544824A00
ref: 34
LID,SIDE BAG POCKET
€ 65.50
35
9312424A00
ref: 35
SET PLATE,LOCK SIDE BA
€ 5.00
36
9330024820
ref: 36
LOCK SET,SIDE BAG
€ 96.50
37
0214205084
ref: 37
SCREW
€ 2.00
38-1
6826124A10
ref: 38-1
GV1400GDG
EMBLEM,SIDE BAG,RIGHT
€ 29.00
38-2
6826124A00
ref: 38-2
GV1400GTG
EMBLEM,SIDE BAG,LEFT
€ 20.00
39
0150006307
ref: 39
BOLT
€ 2.50
40
0916006030
ref: 40
WASHER (6.5X29X1.6)
€ 2.50
41
0918006055
ref: 41
SPACER(6.3X9.3X16.5)
€ 4.00
42
0932009017
ref: 42
CUSHION
€ 3.00
43
9541624A00
ref: 43
SEAT, BOTTOM RH
€ 13.50
44
9541724A00
ref: 44
SEAT, BOTTOM LH
€ 13.50
45
0980000293
ref: 45
TOOL ASSY
€ 448.50
46-1
9620041330
ref: 46-1
GV1400GDG
GAUGE ASSY,AIR PRESSURE
€ 77.50
46-2
9620024A00
ref: 46-2
GV1400GTG
GAUGE ASSEMBLY,AIR PRESSURE
€ 0.00
47
9545024A01
ref: 47
LUGGAGE BAG,SIDE BAG
€ 131.50
48
0946200040
ref: 48
BAND
€ 4.50
49
0120406307
ref: 49
BOLT
€ 0.50
50
0916006030
ref: 50
WASHER (6.5X29X1.6)
€ 2.50
51
0918006055
ref: 51
SPACER(6.3X9.3X16.5)
€ 4.00
52
0932009017
ref: 52
CUSHION
€ 3.00
53
0916006013
ref: 53
WASHER (6.5X18X2)
€ 10.50
54
0831931067
ref: 54
NUT
€ 2.50
55
0925008013
ref: 55
CAP(OD:12)
€ 2.00
56
6861324A02
ref: 56
LABEL (WARNING)
€ 0.00
57
9331424A01
ref: 57
PACKING SEAT
€ 3.50
