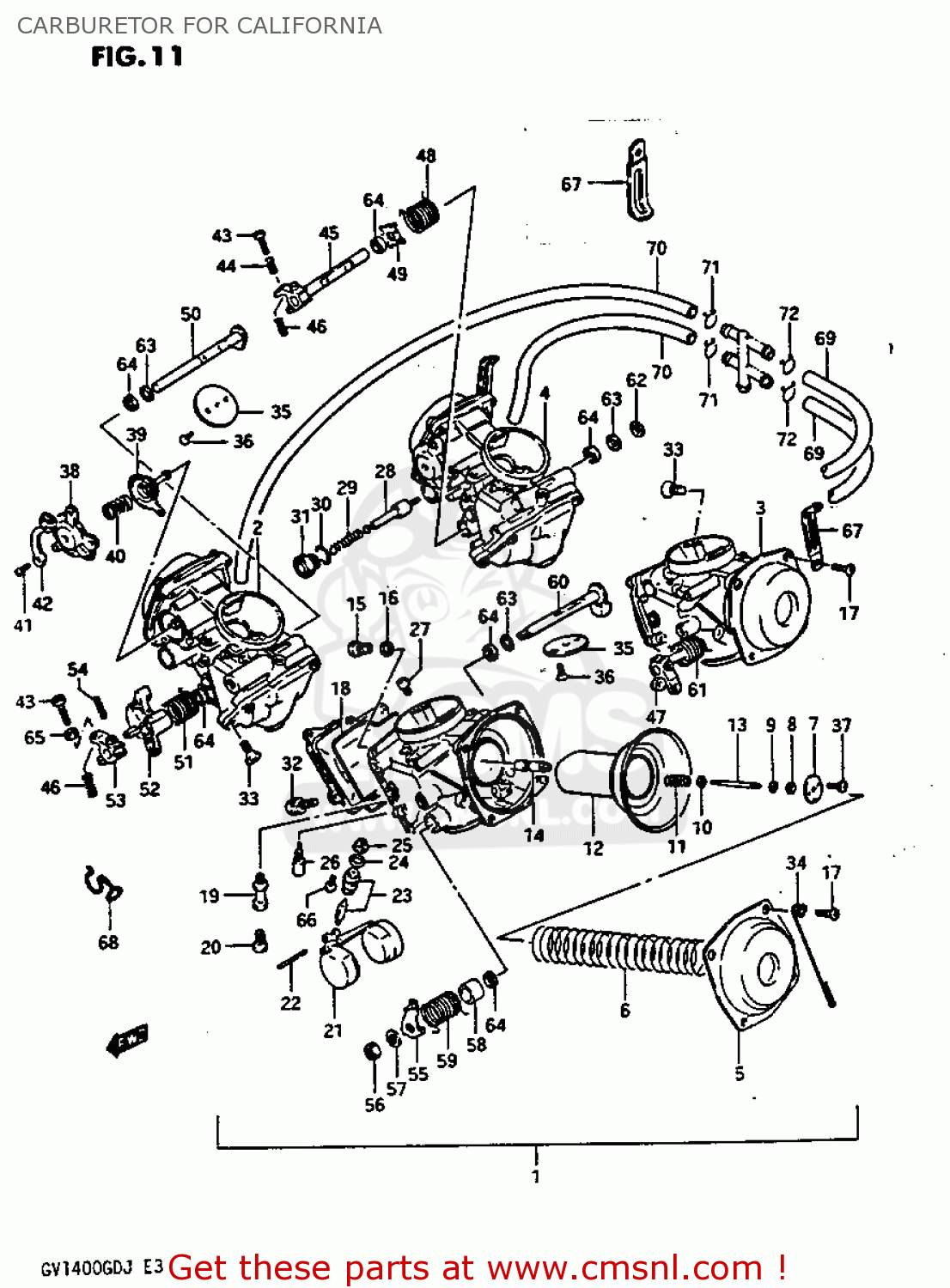

CARBURETOR FOR CALIFORNIA

ref

part #

description

quantity

1-1

1320124A20
ref: 1-1
MODEL G

CARBURETOR ASSEMBLY

€ 0.00

1-2

1320124A50
ref: 1-2
MODEL H/J

CARBURETOR ASSEMBLY

€ 0.00

2-1

1320224A20
ref: 2-1
MODEL G

CARBURETOR ASSEMBLY

€ 0.00

2-2

1320224A50
ref: 2-2
MODEL H/J

CARBURETOR ASSEMBLY

€ 0.00

3-1

1320324A20
ref: 3-1
MODEL G

CARBURETOR ASSEMBLY

€ 0.00

3-2

1320324A50
ref: 3-2
MODEL H/J

CARBURETOR ASSEMBLY

€ 0.00

4-1

1320424A20
ref: 4-1
MODEL G

CARBURETOR ASSEMBLY

€ 0.00

4-2

1320424A50
ref: 4-2
MODEL H/J

CARBURETOR ASSEMBLY

€ 0.00

5

1350238A00
ref: 5

COVER,DIAPHRAGM

€ 34.00

6

1350305A10
ref: 6

SPRING,DIAPHRAGM

€ 12.00

7

1338937400
ref: 7

PLATE

€ 5.50

8

1338744030
ref: 8

RING

€ 5.00

9

1339431210
ref: 9

CLIP,NEEDLE

€ 3.50

10

1338244030
ref: 10

WASHER

€ 3.50

11

1338844030
ref: 11

SPRING

€ 6.00

12

1350005A10
ref: 12

DIAPHRAGM,CARBURETOR

€ 178.00

13

1338324A10
ref: 13

NEEDLE JET

€ 14.00

14

0949400505
ref: 14

JET,NEEDLE

€ 24.50

15

1360505A10
ref: 15

SCREW

€ 8.50

16

1333244080
ref: 16

WASHER,NEEDLE NOZZLE

€ 2.50

17

0211205107
ref: 17

SCREW

€ 2.00

18

1325138A00
ref: 18

O RING,FLOAT CHAMBER

€ 6.50

19-1

1338505A11
ref: 19-1
MODEL G

HOLDER,MAIN JET

€ 14.00

19-2

1338505A11
ref: 19-2
MODEL H/J

HOLDER,MAIN JET

€ 14.00

20

0949121023
ref: 20

JET,MAIN(105)

€ 7.00

21

1325005A10
ref: 21

FLOAT

€ 34.00

22

1325420010
ref: 22

PIN,FLOAT

€ 3.00

23

1337024A00
ref: 23

VALVE ASSEMBLY,NEEDLE

€ 63.00

24

1337444080
ref: 24

O-RING,NEEDLE VALVE

€ 6.00

25

1337684110
ref: 25

FILTER

€ 6.50

26

0949225007
ref: 26

JET,PILOT(25)

€ 8.50

27

0949267001
ref: 27

JET,ENRICH

€ 10.50

28

1341105A10
ref: 28

PLUNGER

€ 17.00

29

1341705A10
ref: 29

SPRING,STARTER PLUNGER

€ 0.00

30

1327847090
ref: 30

O RING

€ 2.00

31

1341805A10
ref: 31

HOLDER,GUIDE

€ 12.00

32

1360104148
ref: 32
FL:4,FR:3,RL:3,RR:4

SCREW

€ 2.50

33

1360305A20
ref: 33
FR,RL

SCREW

€ 0.00

34

1369205A10
ref: 34
FL,RR

CLIP

€ 0.00

35

1355105A00
ref: 35

VALVE,THROTTLE

€ 0.00

36

1360444080
ref: 36

SCREW

€ 3.50

37

0211203066
ref: 37

SCREW

€ 2.00

38

1348438A10
ref: 38

COVER

€ 16.00

39

1348005A10
ref: 39

DIAPHRAGM ASSY

€ 54.50

40

1348105A10
ref: 40

SPRING

€ 5.50

41

1360205A40
ref: 41

SCREW

€ 1.50

42

1362724A00
ref: 42
FR

BRACKET

€ 0.00

43

1360505A20
ref: 43
FR,RL,RR

SCREW

€ 0.00

44

1327105A10
ref: 44
RL,RR

SPRING

€ 0.00

45

1355007A10
ref: 45
RR

SHAFT,THROTTLE

€ 0.00

46

1326896110
ref: 46
FR,RL,RR

SPRING,THROTTLE SCREW

€ 4.50

47

1355007A20
ref: 47
RL

SHAFT,THROTTLE

€ 0.00

48

1357305A10
ref: 48
RR

SPRING,THROTTLE VALVE

€ 0.00

49

1344705A10
ref: 49
RL,RR

PLATE

€ 0.00

50

1355007A30
ref: 50
FR

SHAFT,THROTTLE

€ 0.00

51

1357324A10
ref: 51
FR

SPRING

€ 0.00

52

1355305A10
ref: 52
FR

LEVER,THROTTLE

€ 0.00

53

1355305A20
ref: 53
FR

LEVER,THROTTLE

€ 0.00

54

1356347070
ref: 54
FR

PIN,THROTTLE SHAFT

€ 0.00

55

1355305A30
ref: 55
FL

LEVER,THROTTLE

€ 0.00

56

0831000087
ref: 56
FL

NUT

€ 2.00

57

1360647070
ref: 57
FL

WASHER

€ 3.00

58

1355705A20
ref: 58
FL

RING

€ 3.00

59

1357324A00
ref: 59
FL

SPRING

€ 0.00

60

1355007A40
ref: 60
FL

SHAFT,THROTTLE

€ 0.00

61

1357305A40
ref: 61
RL

SPRING,THROTTLE VALVE

€ 0.00

62

1361744080
ref: 62

E RING

€ 3.50

63

1355747070
ref: 63

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

64

1355605A10
ref: 64

SEAL,THROTTLE SHAFT

€ 3.50

65

1360705A10
ref: 65
FR

NUT

€ 2.00

66

1360205A10
ref: 66

SCREW

€ 4.00

67-1

0940406401
ref: 67-1
MODEL G FL,FR,RR

CLAMP L:35

€ 2.50

67-2

0940406401
ref: 67-2
MODEL H/J FL,RR

CLAMP L:35

€ 2.50

68

1369224A00
ref: 68
MODEL H/J FR

CLAMP

€ 5.00

69

1368300A40
ref: 69
FL/530-400,RL:530

HOSE

€ 13.00

70

1368324A50
ref: 70
FR:270,RR:270-150

HOSE

€ 28.50

71

1367105A30
ref: 71
FR,RR

CLIP

€ 2.50

72

1367105A40
ref: 72
FL,RL

CLIP

€ 4.00
