prices are in EUR

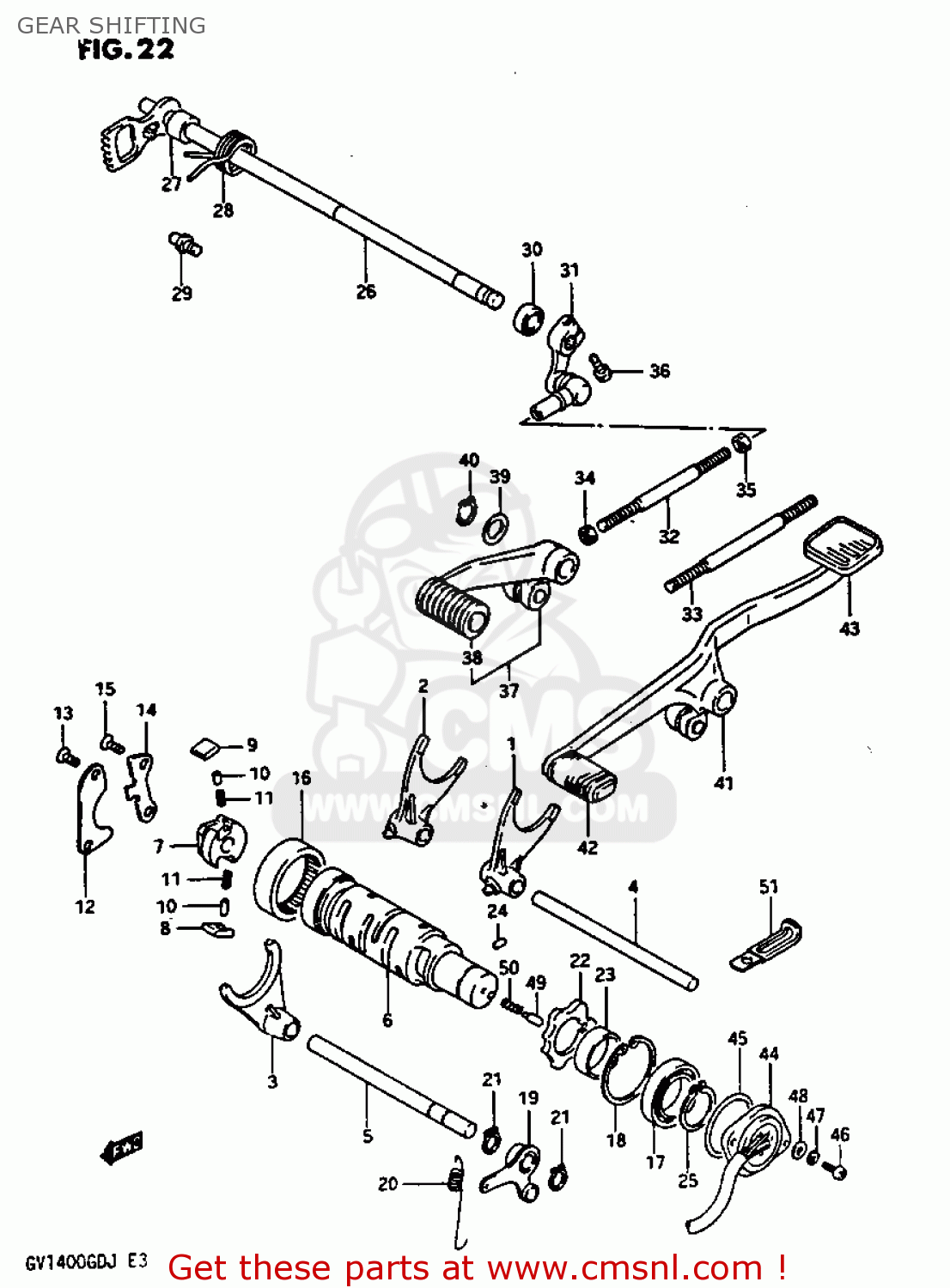

ref
part #
description
quantity
7
GEAR,GEARSHIFT CAM DRIVE
8
PAWL,GEAR SHIFT NO.1
9
PAWL,GEAR SHIFT NO.2
10
PIN(5X8)
11
SPRING
13
SCREW
14
GUIDE,GEAR SHIFTING CABLE
15
SCREW
16
BEARING(43X49X12)
17
BEARING
18
CIRCLIP
19
STOPPER,GEAR SHIFT CAM
21
CIRCLIP
22
PLATE,GEAR SHIFT CAM STOPPER
24
PIN 4X6
25
CIRCLIP
27
SPACER(12X20X15.3)
29
STOPPER,GEAR SHIFT CAM
30
OIL SEAL
31-1
ARM COMP,GEAR SHIFT LIFTER
32-1
ROD,GEAR SHIFT LINK NO.1
33
ROD,GEAR SHIFT LINK NO.2
34
NUT
35
NUT
36
BOLT
37-1
LEVER ASSEMBLY,GEAR SHIFTING
37-2
LEVER ASSEMBLY,GEAR SHIFTING
38
RUBBER,GEAR SHIFT PEDAL
39
WASHER(12.5X20X1)
40
CIRCLIP,12 MM
41
LEVER ASSEMBLY,GEAR SHIFTING
42
RUBBER,PEDAL
44-1
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
44-2
BASE ASSEMBLY,GEAR SHIFT TERMINAL
45
O RING(D:2.4,ID:36.5)
46
SCREW(5X14)
47
LOCK WASHER
48
WASHER
49
PIN(5X15.5)
50
SPRING
51
CLAMP L:35
