Buy Suzuki GV Parts Online


REAR SWINGING ARM

GV1400GT 1986 (G) (E01)

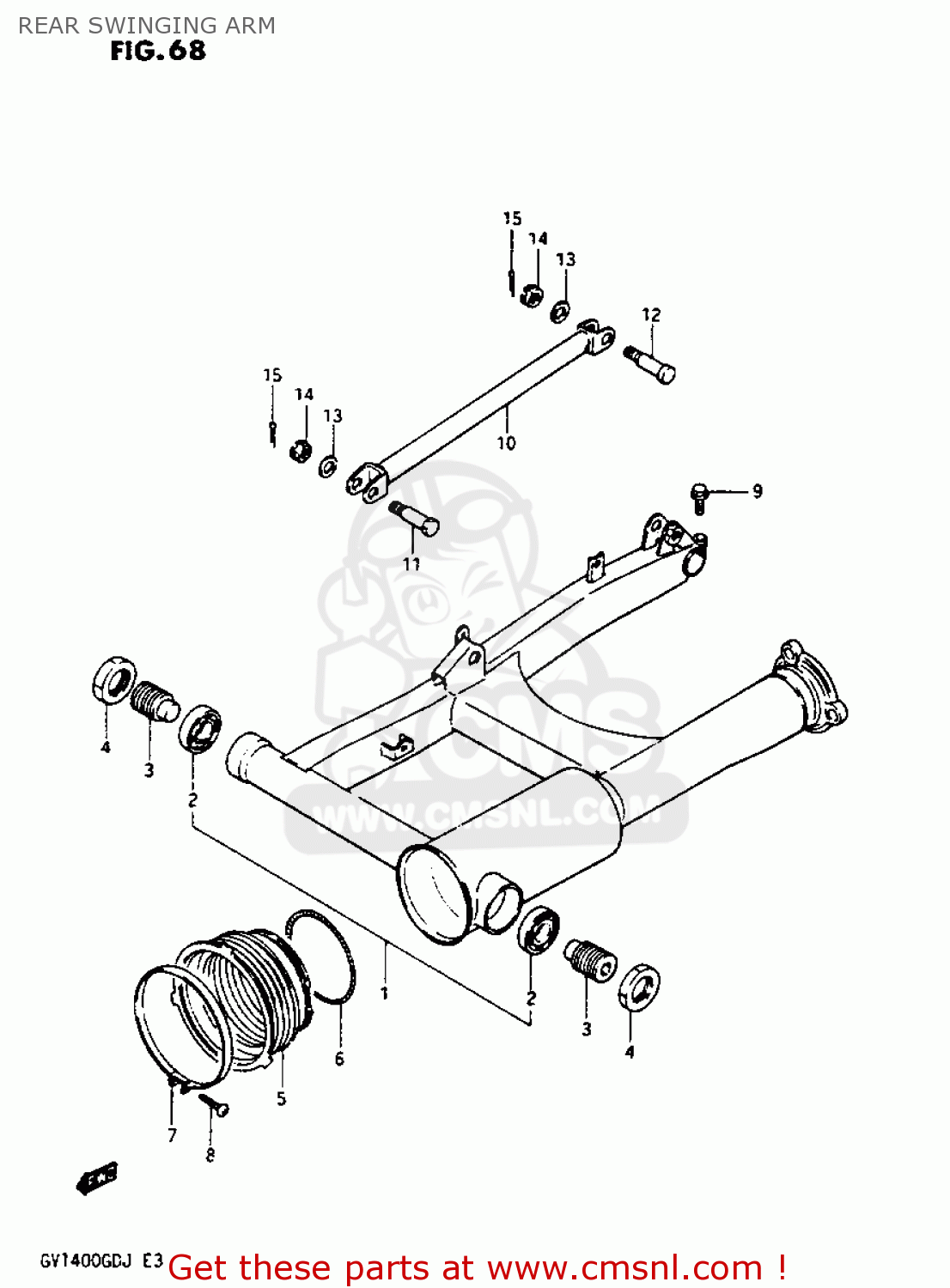

Rear swinging arm diagram GV1400GT 1986 (G) (E01)

REAR SWINGING ARM GV1400GT 1986 (G) (E01)
REAR SWINGING ARM GV1400GT 1986 (G) (E01)
REAR SWINGING ARM GV1400GT 1986 (G) (E01)
prices are in EUR
ref
part #
description
quantity
1
6100024A00019
ref: 1
SWING ARM ASSEMBLY,REAR
€ 510.50
2
0926517012
ref: 2
BEARING(17X40X13.25)
0926517012
€ 35.00
3-1
6121324A00
ref: 3-1
GV1400GDG/GTG
BOLT,RR SWGARM PIVOT
€ 17.00
3-2
6121324A00
ref: 3-2
GV1400GCG/MODEL H/J
BOLT,RR SWGARM PIVOT
€ 17.00
4
0914024007
ref: 4
NUT
0914024007
€ 4.50
5
6137205A01
ref: 5
BOOT,PROPELLER SHAFT
6137205A01
€ 24.50
6
6137334300
ref: 6
SPRING,PROPELLER SHAFT
6137334300
€ 6.50
7
0940200304
ref: 7
CLAMP
€ 5.00
8
0321104255
ref: 8
SCREW 4X25
0321104255
€ 2.00
9
0151708254
ref: 9
BOLT
0151708254
€ 2.50
10
6431024A00019
ref: 10
TORQUE LINK,REAR
€ 17.50
11
0911110011
ref: 11
BOLT
0911110011
€ 8.00
12
0910110017
ref: 12
BOLT(10X39)
0910110017
€ 5.00
13
0832211104
ref: 13
WASHER 10MM
0832211104
€ 2.50
14
0831441108
ref: 14
NUT
0831441108
€ 2.50
15
0411120208
ref: 15
PIN 20X20
0411120208
€ 1.50
